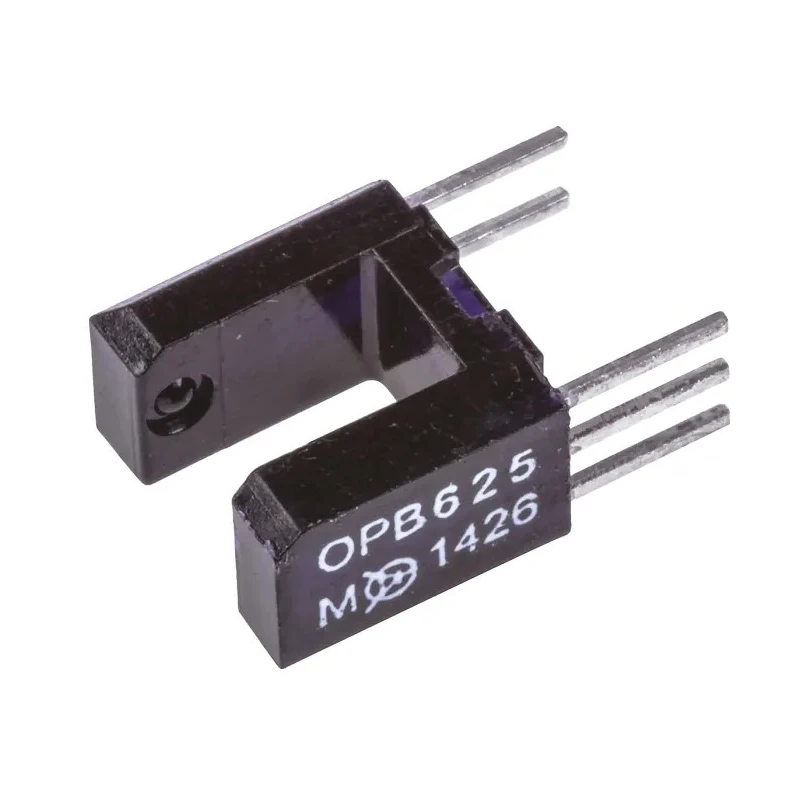

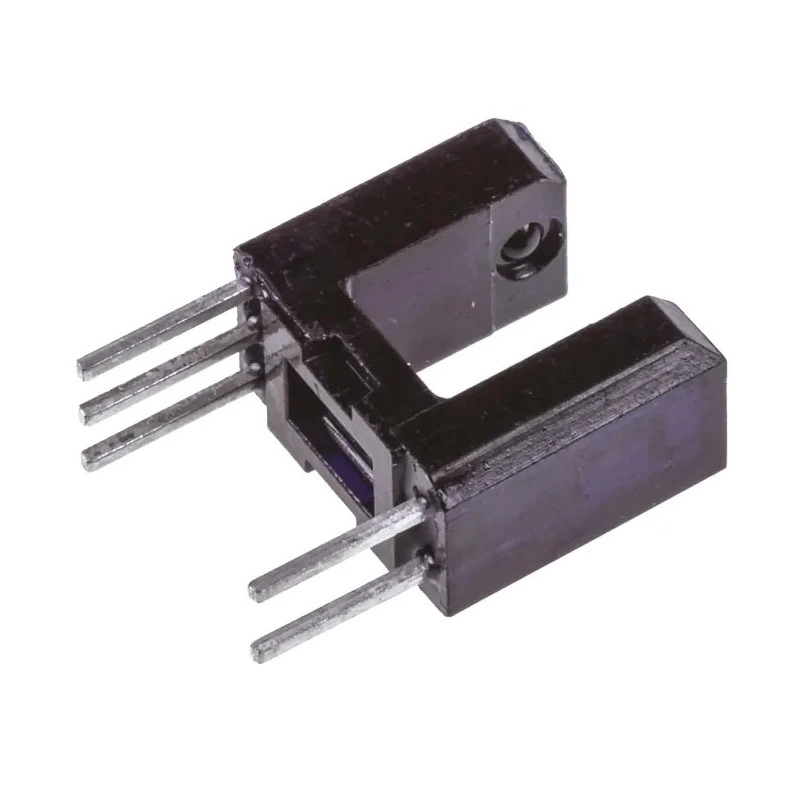

Optek Through Hole Slotted Optical Switch Open Collector with 10K Pull Up Resistor Buffer Output OPB625
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Optek |
| Height | 9.52mm |
| Length | 5.58mm |
| Model | OPB625 |
| Width | 10.16mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 100°C |
| Package Type | Pin |
| Minimum Operating Temperature | -40°C |
| Slot Width | 4.83mm |
| Number Of Channels | 1 |
| Output Device | Open Collector with 10K Pull Up Resistor, Buffer |
| Number of Pins | 5 |
| Typical Rise Time | 30ns |
| Lead centers | 8.13 mm |
| Gap size | 4.83 mm |
| SG211 Kodenshi, Through Hole Slotted Optical Switch, Phototransistor OutputBrand | Kodenshi |
Key Features
- The switch features a single channel with through hole mounting for secure installation.
- It has a slot width of 4.83 mm and gap size of 4.83 mm ensuring accurate object detection.
- Operating temperature range from -40°C to 100°C allows functionality in harsh environments.
- The package includes a 5-pin pin-type configuration for easy PCB mounting.
- Contains an IR LED, photodiode, linear amplifier, and Schmitt trigger on one silicon chip for integrated performance.
- Compatible with TTL/LSTTL logic level outputs for versatile interfacing.
- Compact dimensions of 10.16 mm width, 9.52 mm height, and 5.58 mm length economize PCB space.
- Lead centers spaced at 8.13 mm match standard PCB layouts.
Product Description
Optek OPB625 Through Hole Slotted Optical Switch is a high-precision optoelectronic component designed for applications requiring reliable object detection and counting. Featuring an open collector output with a 10K pull up resistor and buffer integration, this switch provides a TTL/LSTTL compatible logic level output. The device combines an infrared LED, photodiode, a linear amplifier, and Schmitt trigger in a monolithic silicon chip to ensure sensitive and noise-reduced detection.
Manufactured with through hole mounting and pin package type, the OPB625 allows straightforward PCB assembly and wiring. Its slot width of 4.83 mm enables it to detect narrow object interruptions with high accuracy. The device operates reliably in temperatures ranging from -40°C to 100°C, making it suitable for industrial, commercial, and automotive environments that require temperature resilience.
With a compact form factor measuring 10.16 mm in width, 9.52 mm in height, and 5.58 mm in length, the OPB625 fits well in dense electronic systems without occupying excessive space. Lead centers spaced at 8.13 mm match standard PCB footprints, facilitating easy integration into existing designs. This slotted optical switch is ideal for use in automation, control systems, safety sensors, and other optoelectronic detection applications.
The OPB625 is part of the Photologic® series, offering a high signal-to-noise ratio for precise switching. Its open collector output with internal 10K pull up resistor and buffer output simplifies circuit design. Typical rise time and fall time are both 30 nanoseconds, suited for moderate speed switching applications.
The device's robust construction supports automotive-grade operation though it is not automotive standard certified. Designed and manufactured in Mexico, ensuring quality and reliability in production.
This product is suitable for industrial automation, manufacturing equipment, laboratory instrumentation, and electronic sensor applications. Explore the wide range of Slotted Optical Switches and related components available at EnvMart to find the perfect fit for your electronic projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPB625 operates reliably within a temperature range of -40°C to 100°C, making it suitable for harsh environments.
This model measures 10.16 mm in width, 9.52 mm in height, and 5.58 mm in length, allowing it to fit in compact electronic systems.
It features an open collector output with a 10K pull up resistor and buffer, compatible with TTL/LSTTL logic levels.
The switch is designed for through hole mounting, which allows for secure installation on a PCB.
The slot width and gap size are both 4.83 mm, enabling accurate detection of narrow object interruptions.
This model has a single channel, designed for reliable object detection and counting applications.
The typical rise time for the output signal is 30 nanoseconds, suitable for moderate speed switching applications.
The lead centers are spaced at 8.13 mm, which matches standard PCB layouts for easy integration.
It integrates an infrared LED, photodiode, linear amplifier, and Schmitt trigger on a single silicon chip for enhanced performance.
This slotted optical switch is suitable for applications in automation, control systems, safety sensors, and other optoelectronic detection scenarios.
The OPB625 is designed and manufactured in Mexico, ensuring quality in production.
The OPB625 comes in a pin package type, which facilitates straightforward PCB assembly and wiring.
