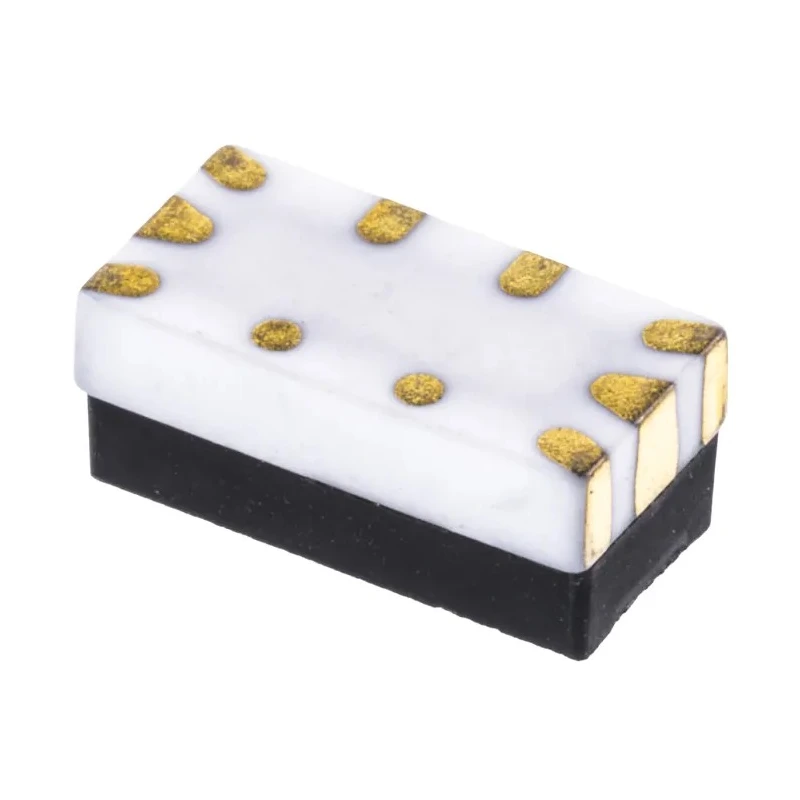

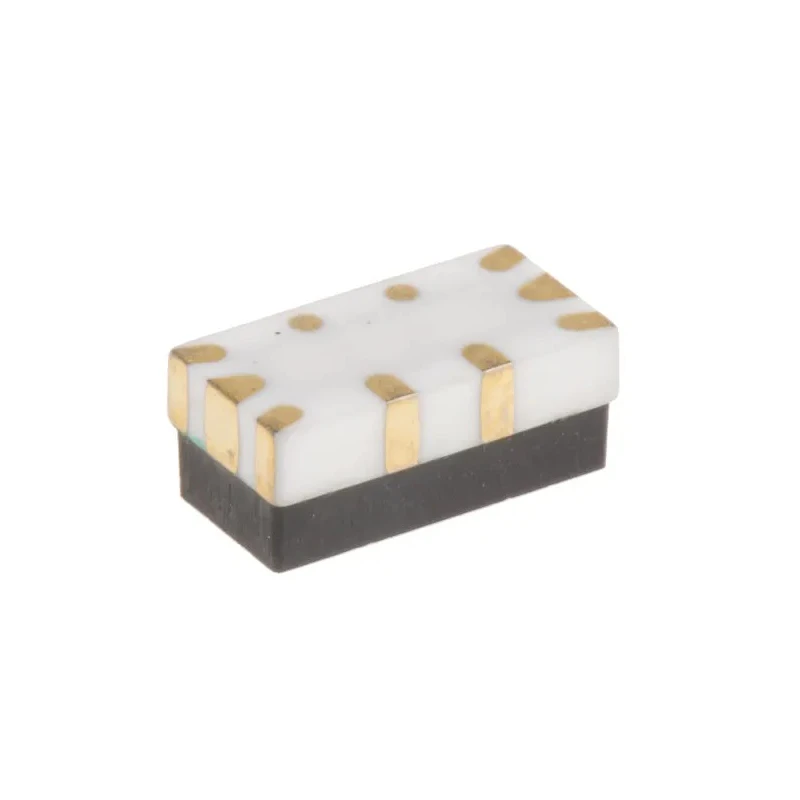

Meder Surface Mount SPST Reed Relay Micro-Miniature Ceramic Package CRR05-1A

Meder CRR05-1A is a micro-miniature SPST (Single Pole Single Throw) surface mount reed relay designed for advanced electrical and automation applications. The relay is housed in a ceramic thermoset moulded package that offers excellent thermal and mechanical stability. Its leadless design prevents lead skewing during surface mount assembly, enhancing manufacturing precision.

This reed relay withstands reflow soldering temperatures up to 260°C, making it suitable for modern PCB assembly processes. It offers one normally open contact ideal for switching low-level signals with high accuracy and reliability.

The relay maintains a low thermal offset typically at 1μV, ensuring minimal signal distortion, and features a very high insulation resistance of 10^14 ohms, supporting excellent isolation and noise reduction in sensitive circuits.

The gold plated contact pads provide superior electrical conductivity and resistance to corrosion, enhancing the relay's operational durability in demanding industrial environments.

Its extremely small and low-profile form factor enables use in compact and high-density electronic assemblies, especially in industrial automation, signal conditioning, instrumentation, and telecommunications equipment.

This product is designed for industrial, laboratory, manufacturing, and automation applications requiring reliable switching performance in a miniature footprint. The relay features one normally open contact for precise switching.

Capable of withstanding reflow soldering operations up to 260 degrees Celsius. Leadless design eliminates lead skewing in surface mounting. Low profile and extremely small size for compact PCB applications. Typical insulation resistance is 10 to the power of 14 ohms providing excellent reliability.

Low thermal offset typically at 1 microvolt for efficient signal conditioning. Encased in a durable ceramic thermoset moulded package ensuring high stability. Gold plated contact pads guarantee superior conductivity and corrosion resistance.

Explore more in our Reed Relay category for high-performance switching solutions by Meder at EnvMart.
