Infrared Thermal Imaging Camera Handycam IRIMG2
Specifications
| Display | 3.5 color LCD | 270o rotatable |
|---|---|
| Type | Uncooled FPA| 384 x 288 pixels |
| Voltage (V) | 5 B 5% DC |
| Focus | Auto/manual |
| Spectral range | 8-14 m |
| Battery | Li-ion| Equal to 3 hours operating time |
| Dimensions (LxWxH) | 120mm x 60mm x 150 mm |
| Humidity | 90 (non-condensation) |
| Temperature range | -20oc ... +350oc -20oc ... +700oc -20oc ... +1100oc -20oc ... +1200oc |
| Calibration | Automatic| based on inputs |
| Measurement Modes | Thermal image| visual image| thermal fusion| picture-in-picture| thumbnail gallery |
| SENSITIVITY | Less Than 0.065oc + 30oc |
| Accessories | Li-ion battery| tripod| narrow-angle lens| wide-angle lens| 2 years warranty| 3 years warranty |
| Operation temperature range | -20o +50oc |
| Lamp | cd/m2 |
| Memory Capacity | Up to 6500 measurements on SD card (2 G) |
| Storage temperature range | -40oc +70oc |
| Area | 3 adjustable boxes with max./min./average |
| Laser type | Class 2| 1 mV /635| red |
| Language | English| Spanish| German| French| Italian| Russian| Chinese| Japanese| Portuguese| Korean |
| USB | Data transfer to and from PC |
| Vibration | 2G IEC68-2-26 |
| Shock | 25G IEC68-2-29 |
| Safety class | IP54 |
| Pixel pitch | 25 m |
| Digital zoom | 1-4x continous |
| Measurement spots | 4 adjustable spots |
| Line profile | Horizontal/vertical |
| Isotherms analysis | Detect high/low temperature/interval |
| Emissivity correction | from 0.01 to 1.0 |
| Thermal fusion | IR image shown above| below or within a temperature interval on a visual image |
| Picture in Picture | Resizable and movable IR area on visual image |
| Image frequency | 50/60 Hz |
| Voice annotation | Built-in microphone to record 40sec voice annotation |
| Charging system | In camera or AC adapter |
| Electronic zoom | 4-8x |
| Digital camera | 3|4 mega pixels |
| Video output | PAL / NTSC |
| Audio output | yes |
| FOV | 21o x 16o / 0.4 m (standard lens)| 38o x 28o / 0.3 m (wide-angle lens| option )| 11o x 8.5o / 1.2 m ( telephoto lens| option ) |
| Spatial resolution | 1.2 mrad |
| Temperature measurement error | 2oc 2% of reading |
| High temperature alarm | Sound| color |
| Color palette | 6 colors |
| Setting of parameters | Date/time| temperature units oC/oF/K| language| scale |
| Memory type | 2G SD card| Built-in flash |
| File format | Standard JPEG |
| Periodic data storage | User definited| 6 seconds at least |
| AC power supply | 90~260 V AC | 50/60| 5V DC |
| Power management | Automatic shutdown (user defined) |
| Weight inc. battery and standard lens | 450 g |
| Tripod mounting | 43922 |

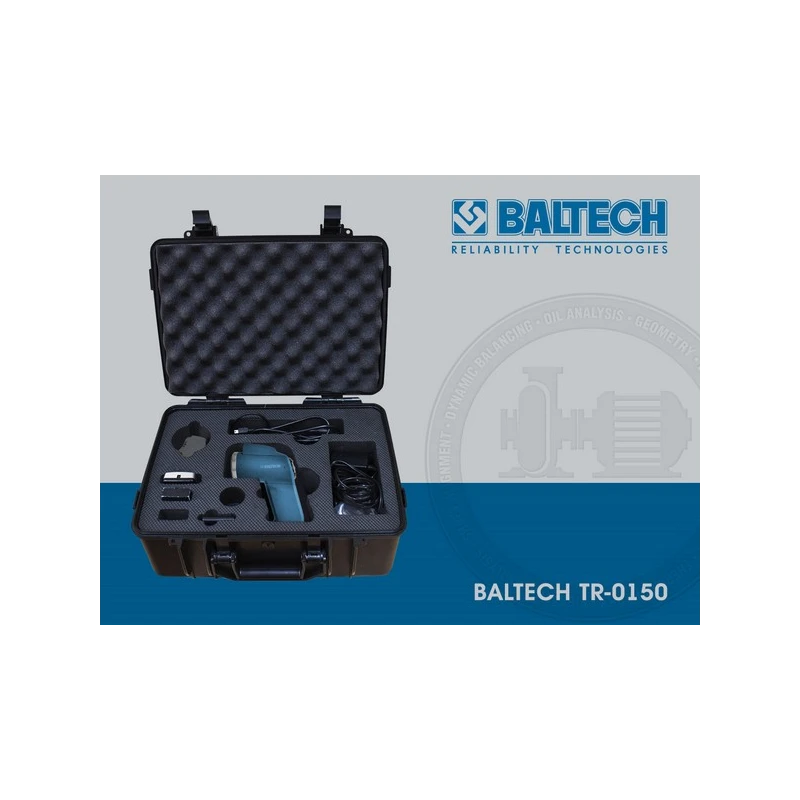

| Delivery set | Infrared camera BALTECH TR-01500with a standard lens| 2 Li-ion batteries| battery charger| adapter| Video cable| SB cable| Software CD| operation manual| warranty certificate| transportation case |
Key Features
- High quality thermal image and high accuracy temperature measurement, thermal sensitivity ±2%, 50 mk
- Uncooled focal plane array 384x288;
- Wide temperature range -20oC...+1200oC
- Detection of max/min/aver temperature
- Temperature sensitivity 0,08 degree C
- Text and voice annotation;
- Color 270 degree C rotatable LCD 3,5''
- Auto focus
- Picture-in-picture function
Product Description

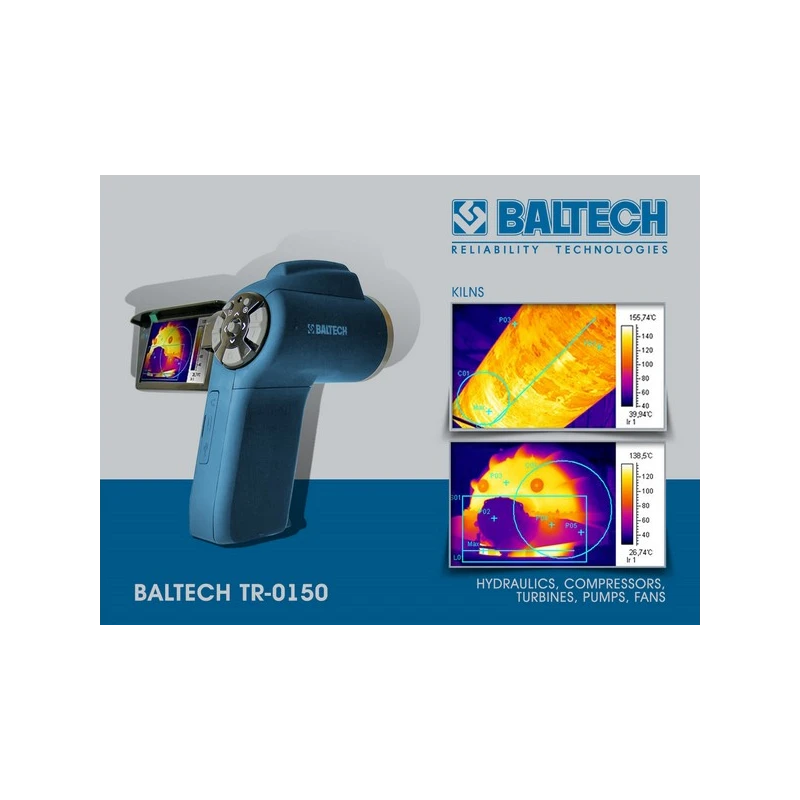

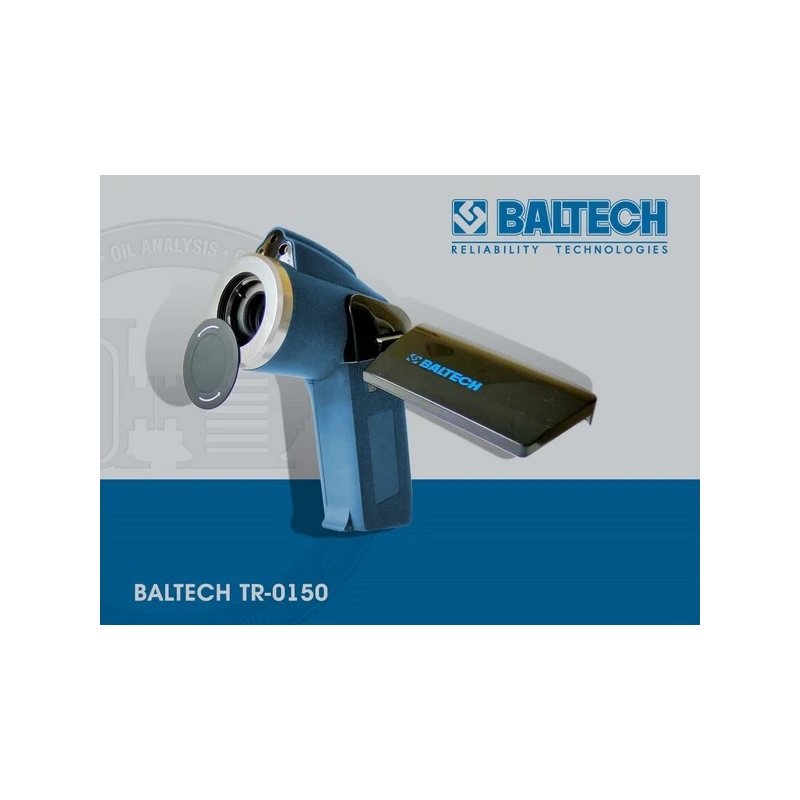

Infrared Thermal Imaging Camera Handycam- BALTECH TR-0150 (384X288)BALTECH TR-0150 (384x288) is a new generation infrared camera with a focal plane array 384x288. Portability, fast start up, various functions and features and low price make this infrared camera the competitive and affordable device.
- Built- in digital camera 2 Mpixel
- Detection of moisture condensation
- Laser pointer;
- Sound and light alarm
- Ambient temperature correction;
- Shockproof, moisture and dustproof housing;
- Big memory for up to 6500 thermal images;
- Tripod mounting;
- BALTECH Expert software on CD
- Narrow-angle and wide-angle lenses (option)
