BALTECH Infrared Thermal Imaging Camera Basic TR-0120 160X120 infra3
Specifications
| Display | 3.5 color LCD | 270o rotatable |
|---|---|
| Type | led FPA|160 x 120 pixels |
| Voltage (V) | 5 B5% DC |
| Focus | Auto/manual |
| Spectral range | 8-14 m |
| Battery | Li-ion| Equal to 3 hours operating time |
| Dimensions (LxWxH) | 125mm x 60mm x 160 mm |
| Humidity | 90 (non-condensation) |
| Temperature range | -20oc ... +350oc -20oc ... +700oc -20oc ... +1100oc -20oc ... +1200oc |
| Calibration | Automatic| based on inputs |
| Measurement Modes | Thermal image| visual image| thermal fusion| picture-in-picture| thumbnail gallery |
| SENSITIVITY | Less Than 0.05oc + 30oc |
| Operation temperature range | -20o +50oc |
| Lamp | 14 cd/m2 |
| Memory Capacity | Up to 7000 on SD card |
| Storage temperature range | -40oc +70oc |
| Area | 3 adjustable boxes with max./min./average |
| Laser type | Class 2| 1 mV /635| red |
| Language | English| Spanish| German| French| Italian| Russian| Chinese| Japanese| Portuguese| Korean |
| USB | Data transfer to and from PC |
| Vibration | 2G IEC68-2-26 |
| Shock | 25G IEC68-2-29 |
| Safety class | IP54 |
| Pixel pitch | 25 m |
| Digital zoom | 1-2x continous |
| Measurement spots | 4 adjustable spots |
| Line profile | Horizontal/vertical |
| Isotherms analysis | Detect high/low temperature/interval |
| Emissivity correction | from 0.01 to 1.0 |
| Thermal fusion | IR image shown above| below or within a temperature interval on a visual image |
| Picture in Picture | Resizable and movable IR area on visual image |
| Image frequency | 50/60 Hz |
| Voice annotation | Built-in microphone to record 40sec voice annotation |
| Charging system | In camera or AC adapter |
| Electronic zoom | 2x |
| Digital camera | 2|4 mega pixel |
| Video output | PAL / NTSC |
| Audio output | yes |
| FOV | 21o x 16o / 0.15 m (standard lens)| 42o x 32o / 0.1 m (wide-angle lens| option )| 10o x 8o / 1 m ( telephoto lens| option ) |
| Spatial resolution | 2.3 mrad |
| Temperature measurement error | 2oc 2% of reading |
| High temperature alarm | Sound| color |
| Color palette | 6 colors |
| Setting of parameters | Date/time| temperature units oC/oF/K| language| scale |
| Memory type | 2G SD card| Built-in flash |
| File format | Standard JPEG |
| Periodic data storage | User definited| 6 seconds at least |
| AC power supply | 90~260 V AC | 50/60| 5V DC |
| Power management | Automatic shutdown (user defined) |
| Weight inc. battery and standard lens | 450 g |
| Tripod mounting | 43922 |
Key Features
- High quality thermal image and high accuracy temperature measurement, thermal sensitivity ±2%, 50 mk
- Folding and rotatable display Transformer
- Auto focus for one-hand operation
- Detection of moisture condensation
- Laser pointer
- Bright LED light
- Built-in digital camera 2 Mpixel
- Wide temperature range -20oC...+1200oC
- Built-in microphone to record 40sec voice annotation
Product Description

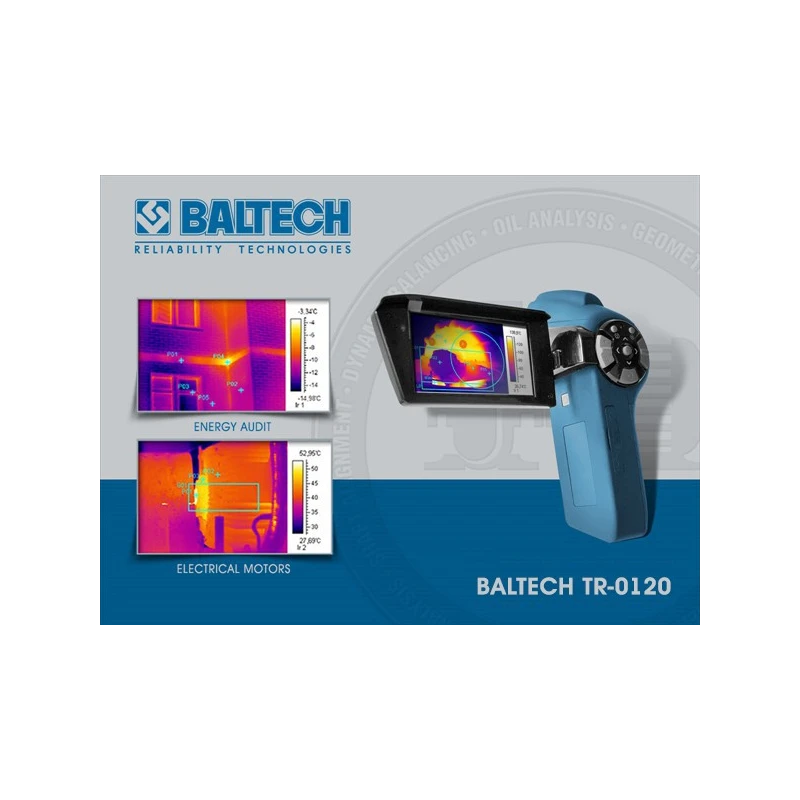

The new unique infrared camera BALTECH TR-0120 is intended to investigate thermal fields of objects in the temperature range -20C +1200C. A picture-in-picture function, color folding and rotatable LCD, auto focus, laser pointer and sound alarm make this infrared camera a leader in its class.
- Wide-angle and telephoto IR lens
- Scalable P-I-P and Thermal fusion
- Automatic Hot/Cold/Average temperature detection
- Real-time thermal video transfer to PC via USB, and remote transfer via MSN and Skype
- Intuitive and easy operating menu
- New generation BALTECH Expert software
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BALTECH Infrared Thermal Imaging Camera TR-0120 has a wide temperature measurement range of -20°C to +1200°C.
This model features a thermal imaging sensor with a resolution of 160 x 120 pixels.
It is equipped with a 3.5-inch color LCD display that is rotatable up to 270 degrees.
This model supports multiple measurement modes including thermal image, visual image, thermal fusion, picture-in-picture, and thumbnail gallery.
It can operate in environments with humidity levels up to 90% (non-condensation).
The dimensions of this thermal imaging camera are 125mm x 60mm x 160mm, and it weighs 450 grams including the battery and standard lens.
This unit supports a standard lens, with options for a wide-angle lens and a telephoto lens.
Yes, it includes a built-in microphone that allows for 40 seconds of voice annotation during recordings.
The BALTECH TR-0120 is rated with an IP54 safety class, indicating protection against dust and water splashes.
The operating menu supports multiple languages including English, Spanish, German, French, Italian, Russian, Chinese, Japanese, Portuguese, and Korean.
