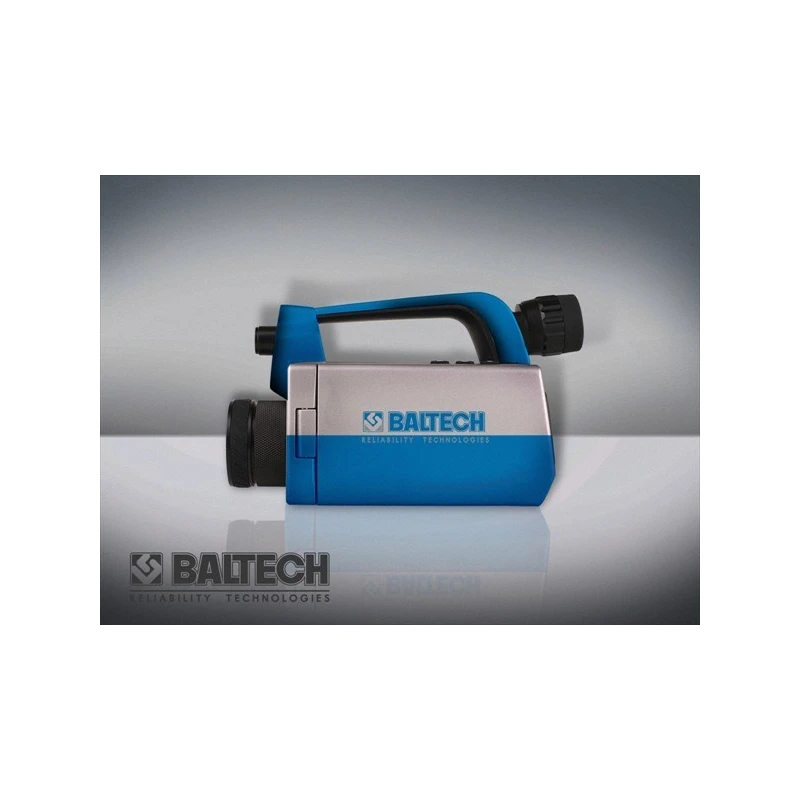

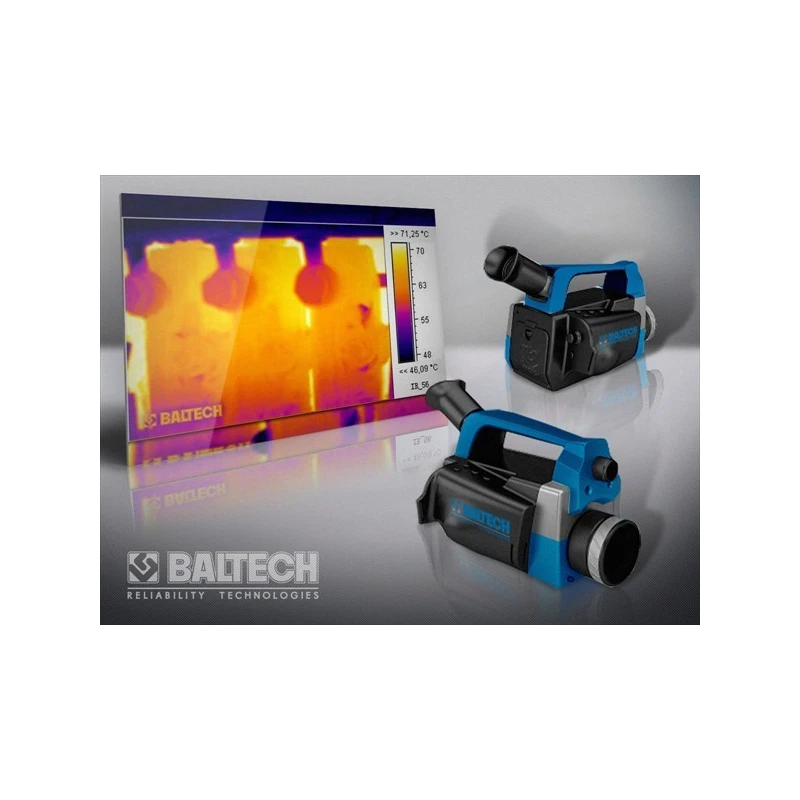

Infrared Thermal Imaging Camera Professional Infraprof.67
Specifications
| Temperature Accuracy | 2oc or 2% of reading |
|---|---|
| Display | 5| 270o tiltable color LCD| 800 x 480 pixels |
| Frequency | 50 Hz/60 Hz |
| Power | Yes |
| Bluetooth | Yes |
| Focus | Manual/Motor/Auto |
| Storage Temperature | -20o - +70o |
| Spectral range | 8~14 m |
| Battery type | Rechargeable li-ion battary |
| Alarm | Voice| color |
| Humidity | 955 (Non-condense) |
| Temperature range | -20oc ... +350oc| -20oc ... +700oc| -20oc...+1100oc| -20oc ... + 1200oc |
| Languages | 10 Languages (English| French| Italian| German| Spanish| Portuguese| Russian| Korean| Japanese| Simplified Chinese & Traditional Chinese) |
| Weight | 1.3Kg (with battery and standard lens) |
| Detector Type | Uncooled FPA |
| Area | 3 adjustable boxes with max./min./avg. temperature value |
| USB | Radiometric images transfer to and from PC |
| Vibration | 2G| IEC60068-2-6 |
| Shock | 25G| IEC60068-2-29 |
| Pixel pitch | 25 m |
| Digital zoom | 1~8 X continuous |
| Measurement spots | 4 adjustable spots |
| Line profile | Vertical/Horizontal |
| Isotherms analysis | Capture high/low temperature/interval |
| Emissivity correction | adjustable from 0.01 to 1.0 or selected from list of Materials |
| Voice annotation | 60s voice record| stored with per image via built-in microphone. It is stored with thermogramms |
| Charging system | In camera| AC adapter| car charger |
| Video output | CVBS |
| Audio output | yes |
| Standard | Thermal imaging camera with standard IR lens| 2 Li-ion batteries| Battery charger| Adapter| USB cable| SD card| SD card reader| BALTECH Expert Software CD| warranty card| transport case |
| Operation temperature | -20oc - +50oc |
| Storage type | Built-in flash card| up to 700 radiometric JPEG images|8G SD card| up to Greater Than 5600 radiometric JPEG images |
| IR resolution | 384 x 288 |
| Power saving | Auto shutdown (user defined) |
| AC supply | 110~240V AC| 50/60Hz| 9~12V DC output |
| FOV/Min focus distance | 24o x 18o / 0.4m (standard)| 48o x 36o / 0.3m (optional)| 6ox4.5o/ 1m (optional) |
| IFOV | 1.3 mrad (24o x 18o) |
| NETD/Sensitivity | Less Than 65 mk@30oc |
| Visual camera | 5.0 mega pixel |
| Spotlight | 10 cd/m2 |
| Image mode | Thermal image| visual image| P-I-P| thermal fusion| W-I-W |
| Viewfinder | 0.6 color OLED| with magnification |
| Measurement correction | Auto/Manual |
| Delta T | Yes |
| Dew point alarm | Yes |
| Color Pallets | 12 pallets (Including iron| rainbow| White hot and black hot etc.) |
| Image adjustment | Adjust contrast and brightness auto/manual |
| Setting function | Date/time| temperature unit oc/oF| language |
| Background temperature correction | Auto |
| Atmospheric transmissivity correction | Auto |
| Periodic image storage | User defined| 10s at least |
| Grade/Type | Class 2| 1mW/635nm Red |
| Battery operating time | 3 hours |
| Encapsulation | IP54 (IEC60529) |
| Size L X W X H | 200 x 117 x 127mm |
| Tripod | 1/420 |
Key Features
- BALTECH TR-0170 has a digital zoom 1-8x.
- Built-in digital camera 5.0 megapixels.
- Built-in lamp and PIP function.

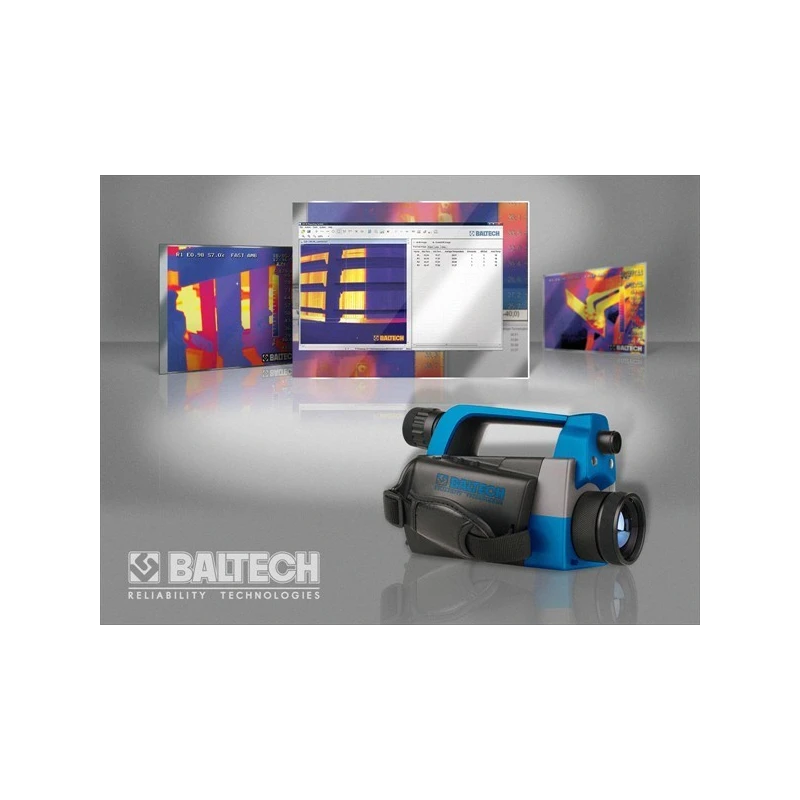

- The software BALTECH Expert (comes together with the infrared camera) and USB 2.0 interface allows the user to display and record the thermal images in real-time mode in field, for example, on a lap top.
- The ergonomic housing of the infrared camera has a folding color display 5 and resolution 800x480 pixels, which makes it possible to detect defects even under strong sunlight
Product Description
Infrared Thermal Imaging Camera Professional- BALTECH TR-0170 (384X288)The infrared camera BALTECH TR-0170 is another interesting solution for performing a high- precision non-destructive thermal inspection at any distance to the object. The wide temperature range -20C...+1200o? and a set of changeable narrow-angle and wide-angle lenses allow conducting the equipment diagnostics and energy audit of any objects. The uncooled microbolometer 384?288 pixels and a high temperature sensitivity allow any user (even without a big working experience in the thermography) to detect temperature spots (cold or hot) on objects when performing the energy audit, diagnostics of electrical equipment, inspections and monitoring of all the manufacturing processes or during the technical maintenance under any industrial conditions.
- There are 2 batteries which ensure reliable and long operation.
- You can record a voice annotation up to 60 sec to every thermal image; up to 5600 thermal images can be stored on the SD- card.
