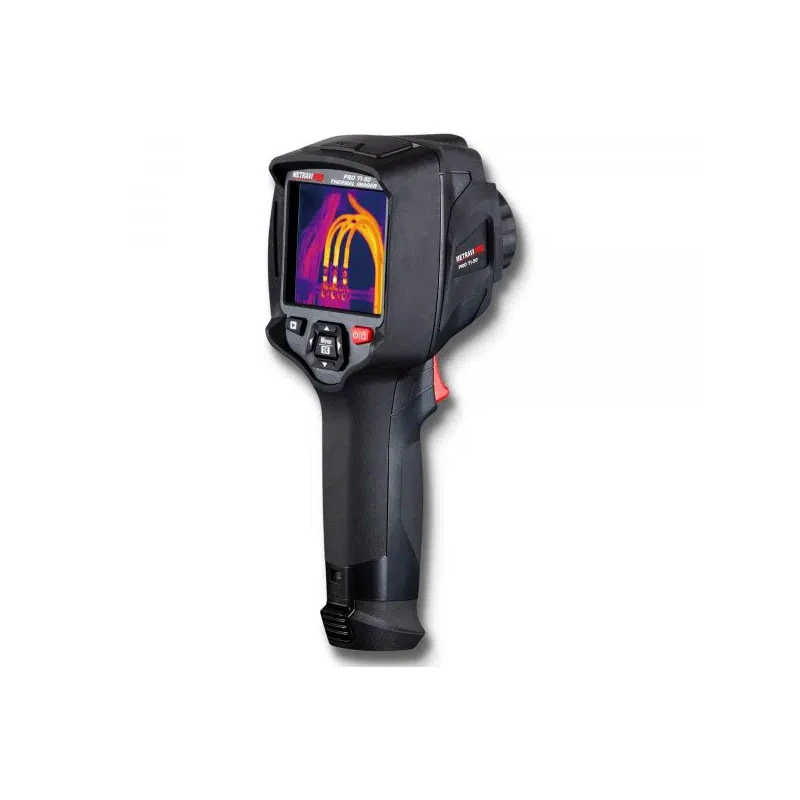

Metravi Handheld Thermal Imager PRO TI-50
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PRO TI-50 Handheld Thermal Imager |
| Brand | Metravi |
| Model | TI-50 |
| Measurement Accuracy | ±2°C(3.6°F)or±2%of reading(Environment temperature10~35°C Object temperatureGreater than 0°C) |
| Image frequency | 50Hz |
| IR resolution | 384×288 pixels |
| Focal Length | 9mm |
| Thermal Sensitivity/NETD | Less than 0.05°C at 30°C (86°F)/80mK |
| Focus Mode | Manual |
| Spatial Resolution (IFOV) | 1.89mRad |
| Zoom | 1–16x continuous digital zoom |
| Set-Up Commands | Local adaptation of units language date and time formats information of camera |
| Field Of View (Fov)/Minimum Focus Distance | 41.5°×31.1°/0.5m |
| Focal Plane Array (Fpa)/Spectral Range | Uncooled microbolometer 8–14µm |
| Image Presentation Display | 3.5inch Touchscreen Display 640x480pixels |
| Image Presentation Image Modes | IR Image Visual Image Picture in Picture Auto-fusion Zoom |
| Image Presentation Colour Palette | Iron Rainbow Grey Grey Inverted Brown Blue-Red Hot-Cold Feather Above Alarm Below Alarm Zone Alarm Vision Zone |
| Measurement Object Temperature Range | -20°~150°C(-4°~302°F)/0~650°C(32°~1202°F) |
| Measurement Analysis Spot | Center Spot Three Manual Spots |
| Measurement Analysis Automatic Hot/Cold Detection | Auto Hot or Cold markers |
| Measurement Analysis Area | Three Area Analysis |
| Measurement Analysis Line | Two Line Analysis |
| Measurement Analysis Measurement Corrections | Emissivity Reflected temperature |
| Storage Of Videos Storage Media | 8Gbytes MicroSD card and 3.4GB internal EMMC |
| Storage Of Videos Video Storage Format | Standard MPEG-4 encode 640x480 at 30fps on memory cardGreater than 60minutes |
| Storage Of Videos Video Storage Mode | IR/visual images simultaneous storage of IR and visual images |
| Storage Of Images Image Storage Format | Standard JPEG or HIR files including measurement data on memory cardGreater than 6000pictures |
| Storage Of Images Image Storage Mode | IR/visual images simultaneous storage of IR and visual images |
| Storage Of Images Image Analyses | Internal image analysis tools Complete function |
| Set-Up Languages | Multinational |
| Digital Camera Built-In Digital Camera | 2Megapixels |
| Digital Camera Built-In Digital Lens Data | FoV65° |
| Data Communication Interfaces Interfaces | USB Type C and WiFi |
| Data Communication Interfaces Usb | Data transfer between camera and PC Live video on camera and PC |
| Data Communication Interfaces Wifi | 802.11 transfer images and realtime video stream |
| Power System Battery | Li-lon battery 4hours operating time |
| Power System Input Voltage | DC5V |
| Power System Charging System | In camera(AC adapter) |
| Power System Power Management | Auto Power-off |
| Environmental Data Operating Temperature Range | -15~50°C(5~122°F) |
| Environmental Data Storage Temperature Range | -40~70°C(-40~158°F) |
| Environmental Data Humidity(Operating And Storage) | 10%~90% |
| Environmental Data Drop Test | 2mts Drop-tested |
| Environmental Data Bump | 25g(IEC60068-2-29) |
| Environmental Data Vibration | 2g(IEC60068-2-6) |
| Physical Data Camera Weight Incl Battery | Less than 500g |
| Physical Data Camera Size(Lxwxh) | 224x77x96mm |
Key Features
- The Metravi PRO TI-50 is a handheld Thermal Imager used for predictive and preventive maintenance, equipment troubleshooting and verification.
- Easy to operate, just focus the lens towards the object and the thermal and visual images are displayed on the LCD, and can also be saved to a Micro SD Memory Card.
- Images can be transferred to a PC by ejecting the MicroSD Memory Card and connecting it to a PC using the card reader (included) or simply transfer the images and videos to your Smart Phone or Device using the free App.
- Also features Video recording and playback.
- With USB Type C and WiFi interfaces.
- Temperature Measuring Range: -20°C to 650°C, Image Frequency 50Hz.
Product Description
The Metravi PRO TI‑50 is a professional‑grade handheld thermal imaging camera built for serious diagnostics in electrical utilities, building inspection, industrial maintenance and mechanical fault‑finding. With high‑density thermal sensor (e.g., 320×240 pixels), wide temperature range (‑20 °C to 600 °C or more), interchangeable lenses, on‑board image analysis (span/level control, histogram, hot‑spot tracking), and rugged IP54/65 rated housing, the TI‑50 delivers advanced thermographic capability. Features include WiFi or Bluetooth connectivity, real‑time thermal video, voice annotations, report‑ready image capture, and strong battery endurance. Designed for demanding field tasks.
Available on EnvMart, these Thermal Imaging Cameras are perfect for detecting heat signatures and temperature variations accurately. Metravi Thermal Imaging Cameras provide high-resolution imaging, precision, and reliability, making them ideal for electrical inspections, maintenance, and industrial applications.
