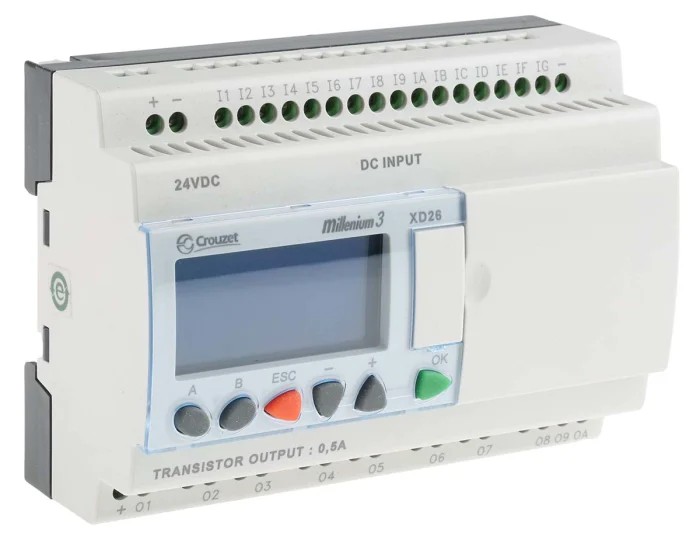

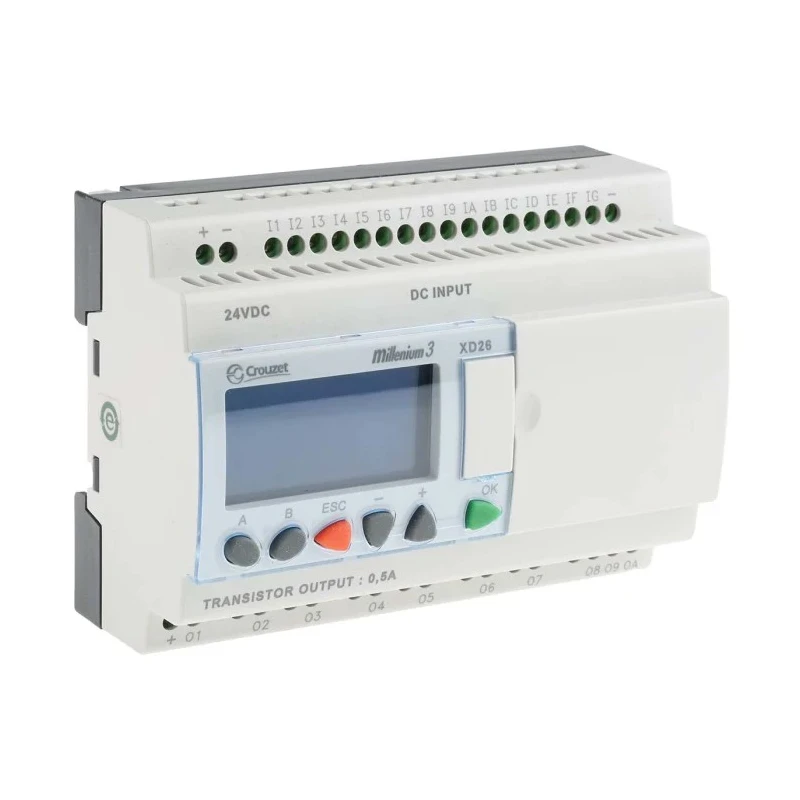

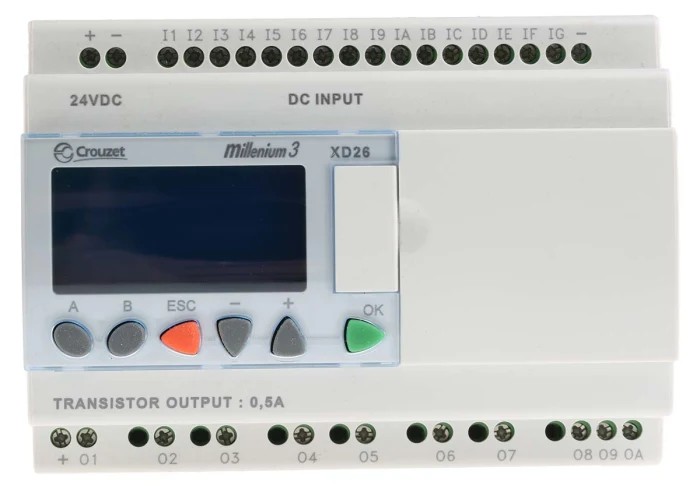

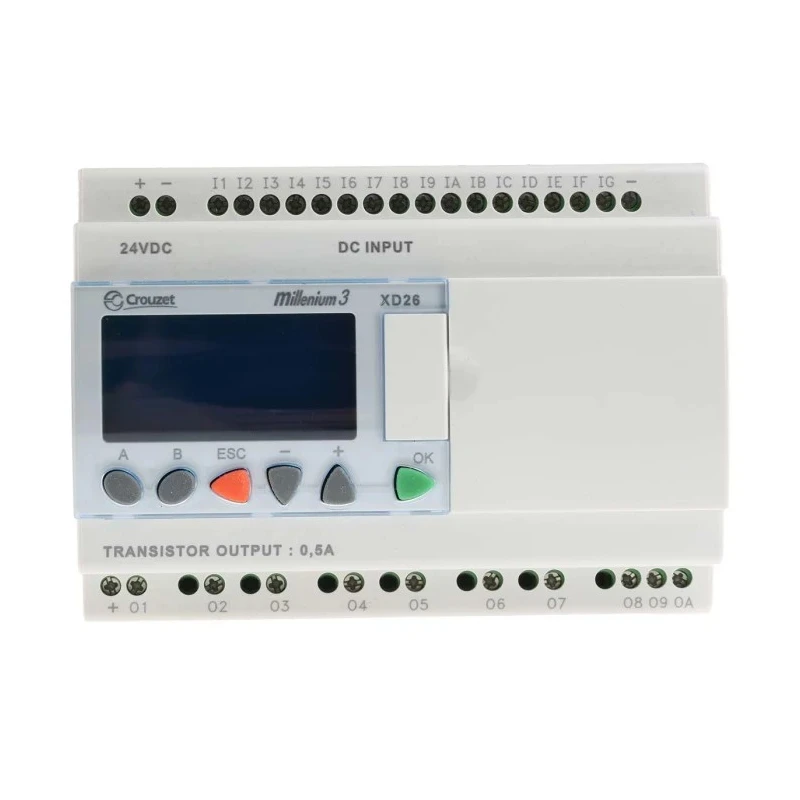

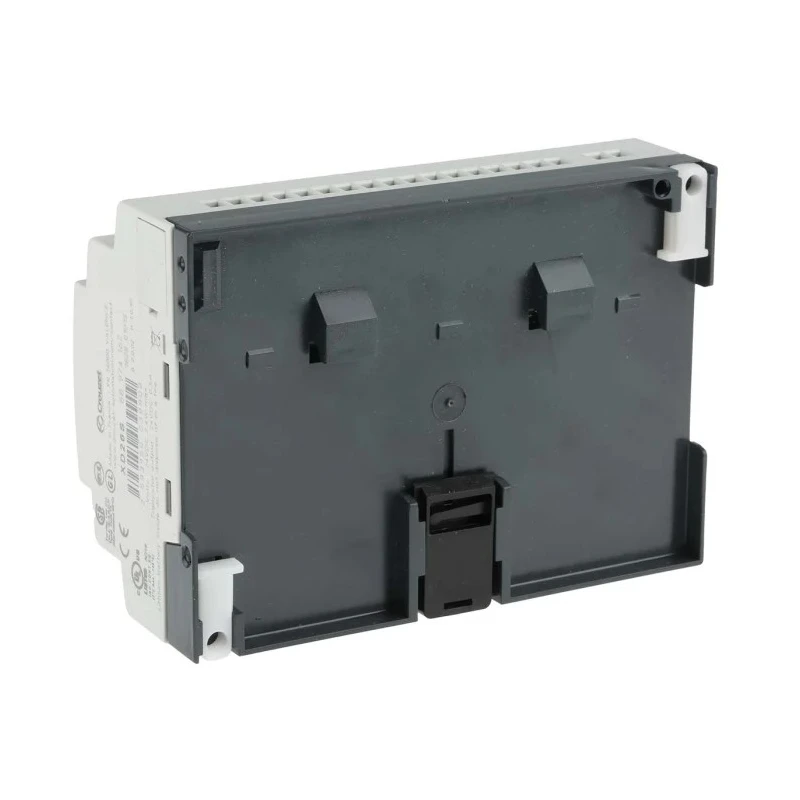

Crouzet Millenium 3 Series Logic Module, 16-Input Digital, 10 Solid State Outputs, 24V DC, 12A Output Current 88974162
Specifications
| Country of Origin | France |
|---|---|
| Brand | Crouzet |
| Length | 100mm |
| Model | 88974162 |
| Depth | 68mm |
| Width | 71.2mm |
| Mount Type | DIN Rail |
| Number of inputs | 16 |
| Output type | Solid State |
| Series | Millenium 3 |
| Output Current | 12A |
| Input Type | Digital |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Interfaces | USB port communication |
| Number of outputs | 10 |
| Program Capacity | 368bit |
| Supply Voltage | 24V dc |
| Number of Communication Ports | 2 |
| Communication Port Type | Serial, USB |
| Programming Language Used | Ladder Logic |
Key Features
- Supports ladder logic programming for flexible control applications.
- Features a large memory capacity of 368 bit suitable for complex programs.
- Includes a highly visible blue LCD with 4 lines of 18 characters and configurable backlighting.
- Operates reliably within temperature range -20°C to 55°C for diverse environments.
- Communication via Serial and USB ports enhances connectivity options.
- Battery backup ensures program retention during power interruptions.
- Mount type is DIN Rail for easy installation in control panels.
- Solid state outputs with 0.5A current rating per output, including 4 outputs capable of PWM.
Product Description
The Crouzet 88974162 Millenium 3 Series Logic Module is a high-performance programmable logic controller designed for industrial automation and control systems. It features 16 digital inputs, including 6 analog inputs, and 10 solid state outputs rated at 0.5A each, with 4 outputs supporting PWM for precise control.
This logic module is powered by a 24V DC supply voltage and supports ladder logic programming language, allowing for flexible and intuitive automation development. It includes a large program capacity of 368 bits, suitable for complex control algorithms, and a highly visible blue LCD screen with 4 lines of 18 characters, including scrolling text and bar graph functionality for real-time status monitoring.
Designed for robust operation, the device can operate in temperatures ranging from -20°C to 55°C, making it suitable for varied industrial environments. The module mounts easily on standard DIN rails using a screw termination method, simplifying integration into existing control panels.
Communication interfaces include serial and USB ports, enabling seamless connectivity with other devices and programming tools. The built-in battery backup protects program integrity during power outages, ensuring continuity of operations.
The Crouzet Millenium 3 incorporates industry standards such as IEC/EN 61000-6-3, IEC/EN 61000-6-4, and IEC/EN 61131-2, providing electromagnetic compatibility and reliability. Compact in size with dimensions of 100mm length, 71.2mm width, and 68mm depth, this module is ideal for automatic washing equipment, agricultural machinery, air conditioning management, heating systems, and other industrial applications.
Supports ladder logic programming. Large memory capacity of 368 bit. 4-line blue LCD display with backlighting. Battery backup included. Digital inputs with 6 analog inputs. 10 solid state outputs including PWM outputs. DIN rail mounting with screw termination.
Serial and USB communication ports. IEC/EN certified for industrial standards.
This Crouzet model is a dependable choice for enhancing automation efficiency and reliability across a variety of industrial sectors. Discover more automation products and solutions at EnvMart.
Explore more products in our PLCs - Programmable Logic Controllers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features 16 digital inputs, including 6 analog inputs, allowing for versatile data acquisition and control.
This model has 10 solid state outputs, each rated at 0.5A, with 4 outputs capable of Pulse Width Modulation (PWM) for precise control.
It operates on a supply voltage of 24V DC, suitable for various industrial applications.
The logic module has a program capacity of 368 bits, which is suitable for complex control algorithms.
It includes both serial and USB communication ports, enhancing connectivity with other devices and programming tools.
The module measures 100mm in length, 71.2mm in width, and 68mm in depth, making it compact for installation.
It can operate reliably within a temperature range of -20°C to 55°C, suitable for diverse industrial environments.
It is designed for DIN rail mounting, simplifying installation in control panels.
It supports ladder logic programming, allowing for flexible and intuitive automation development.
The total output current capacity is 12A, distributed across the 10 solid state outputs.
It includes a highly visible blue LCD with 4 lines of 18 characters and configurable backlighting for real-time status monitoring.
It complies with industry standards such as IEC/EN 61000-6-3, IEC/EN 61000-6-4, and IEC/EN 61131-2, ensuring electromagnetic compatibility and reliability.
