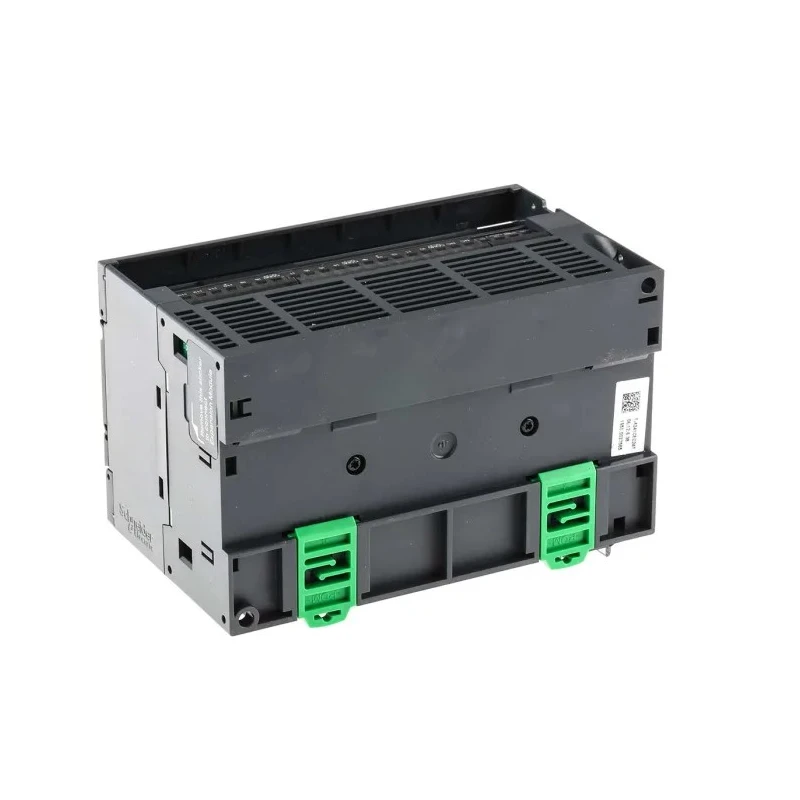

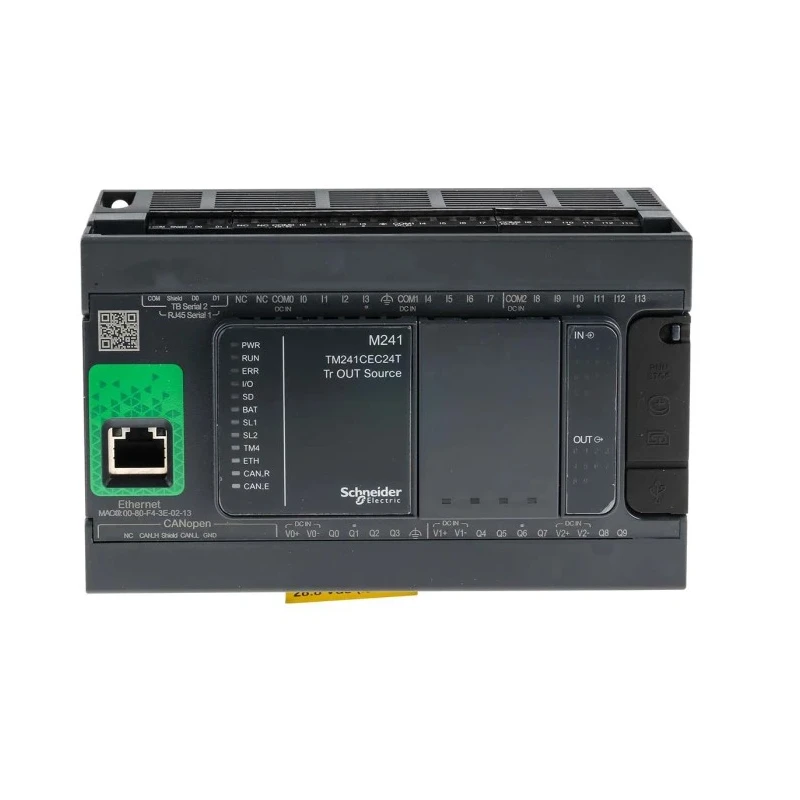

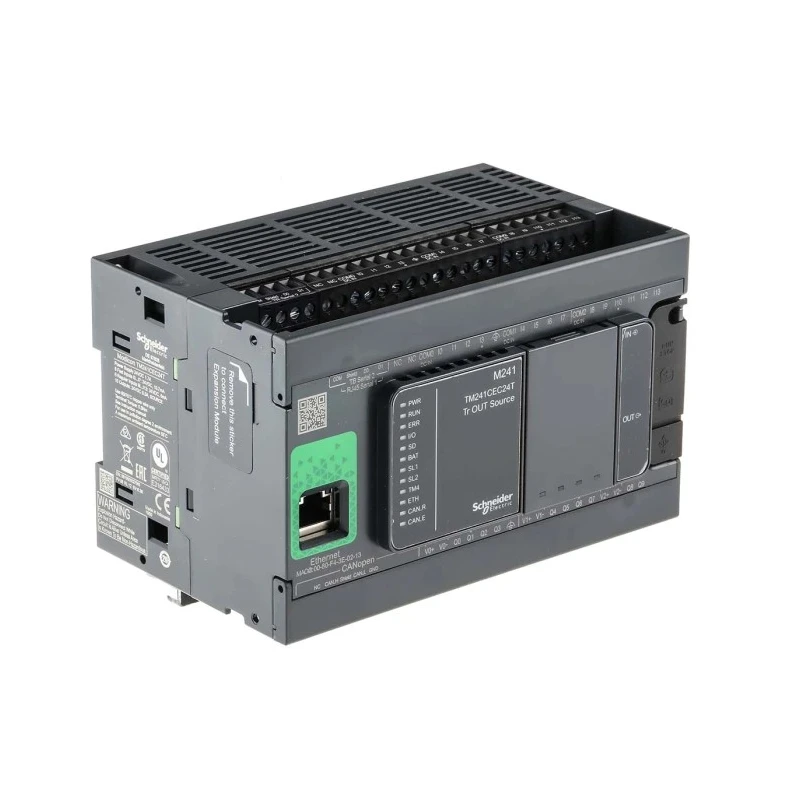

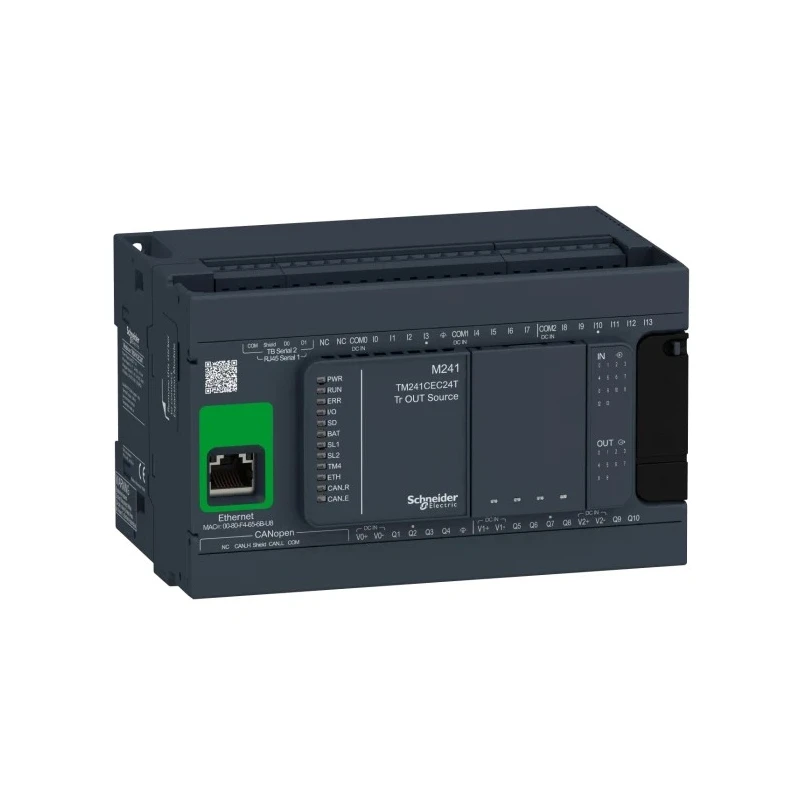

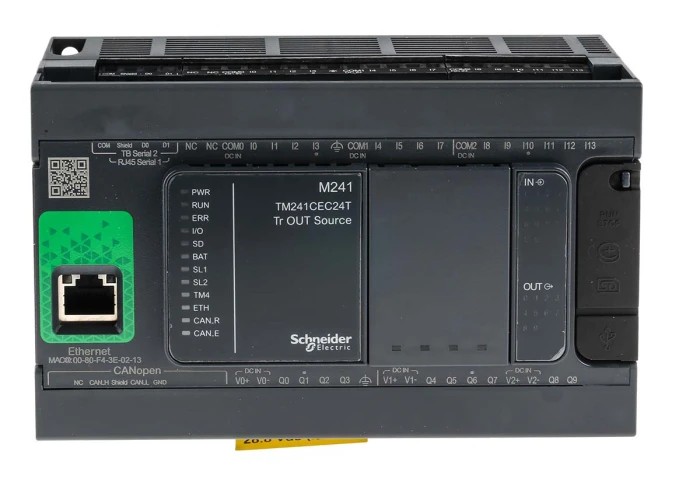

Schneider Electric Modicon M241 Series Programmable Logic Controller CPU 14 Inputs, 10 Transistor Outputs TM241CEC24T
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Length | 150mm |
| Model | TM241CEC24T |
| Depth | 95mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Number of inputs | 14 |
| Output type | Transistor |
| Series | Modicon M241 |
| Output Current | 500mA |
| Input Type | Discrete |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Interfaces | USB programming interface for convenient and hassle-free programming |
| Number of outputs | 10 |
| Program Capacity | 128000Steps |
| Standards/Approvals | CE |
| Number of Communication Ports | 4 |
| Communication Port Type | CANopen |
| Programming Language Used | CoDeSys |
Key Features
- Compact DIN rail design ensures space-saving and easy installation.
- Supports up to 24 inputs and outputs, allowing flexible connectivity.
- Equipped with mini USB programming interface for convenient setup.
- Utilizes CoDeSys programming language for versatile and user-friendly development.
- Includes four communication ports with CANopen protocol support.
- Battery backup included for data retention and reliable operation.
- Operating temperature ranges from -10°C to 55°C for wide environment compatibility.
- 500mA output current capacity with discrete input types for precise control.
Product Description
Schneider Electric TM241CEC24T is a Model Modicon M241 Series programmable logic controller (PLC) CPU designed for reliable automation control. This PLC offers 14 discrete inputs and 10 transistor outputs, supporting a maximum of 24 I/O points to meet diverse industrial requirements.
The device features a compact DIN rail mount design for easy installation and efficient use of panel space. Its mini USB programming interface enables straightforward programming and configuration using the CoDeSys programming environment, which is widely respected for its flexibility and ease of use.
The PLC includes four communication ports supporting CANopen protocol, facilitating seamless integration into complex industrial networks. A battery backup system ensures critical data retention during power interruptions, enhancing operational reliability.
Operating within a temperature range of -10°C to 55°C, it is suitable for a variety of industrial, manufacturing, and building automation environments. The output current capability of 500mA and discrete input types provide precise and dependable control over connected machinery and systems.
Measuring 150mm in length, 90mm in width, and 95mm in depth, this Schneider Electric Modicon M241 PLC CPU is CE certified and manufactured in Indonesia, meeting rigorous international quality standards.
Compact DIN rail mounting for efficient installation. Supports up to 24 inputs/outputs for extensive connectivity. Mini USB interface simplifies programming with CoDeSys. Four communication ports with CANopen support enable network integration.
Battery backup ensures data retention during power loss. Wide operating temperature from -10°C to 55°C. 500mA transistor output current for reliable control. CE certified for quality and safety compliance. Ideal for industrial machinery, automation systems, and building control.
Manufactured in Indonesia with robust build quality.
This Schneider Electric Modicon M241 Series PLC CPU TM241CEC24T is tailored for automation and control applications in industries such as manufacturing, energy management, and building automation. It offers reliable performance with advanced programming and communication capabilities, making it an essential component for streamlined industrial processes.
Explore more products in the PLCs - Programmable Logic Controllers category on EnvMart for comprehensive automation solutions.
