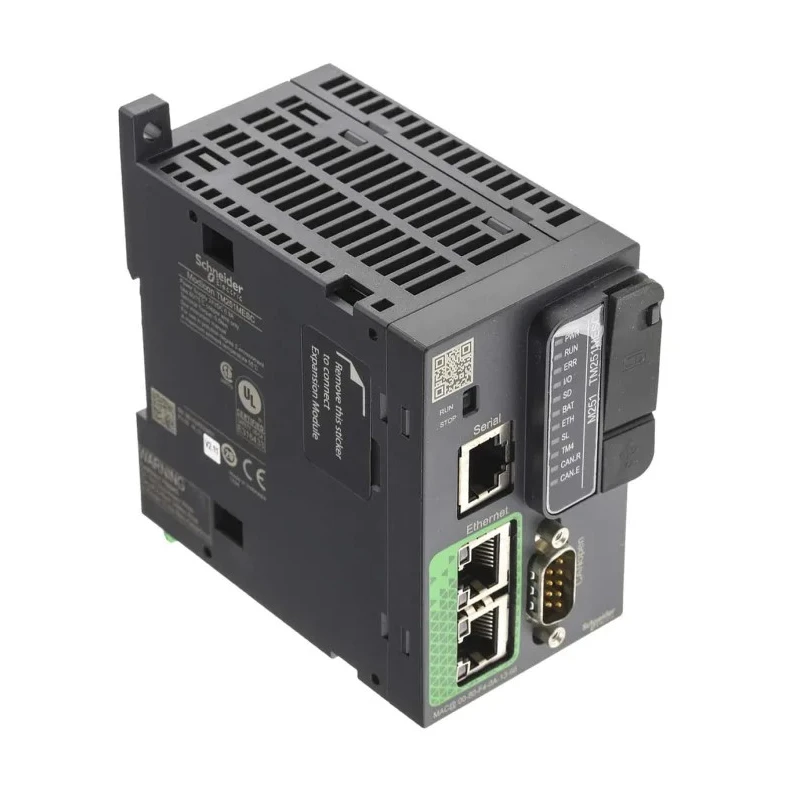

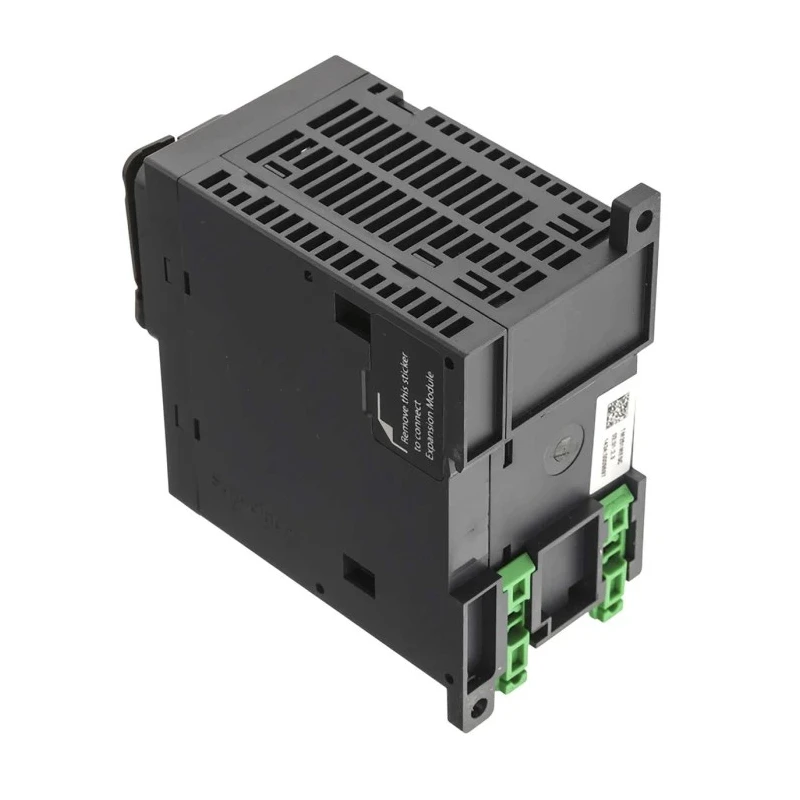

Schneider Electric Modicon TM Series Logic Controller with Analogue Input and Pulse Output TM251MESC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Length | 90mm |
| Model | TM251MESC |
| Depth | 95mm |
| Width | 54mm |
| Mount Type | DIN Rail |
| Output type | Pulse |
| Series | Modicon TM |
| Input Type | Analogue |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Interfaces | Ethernet network |
| Program Capacity | 128000Steps |
| Standards/Approvals | ABS, C-Tick, cULus, DNV, EAC, GL, LR |
| Number of Communication Ports | 4 |
| Communication Port Type | CANopen |
| Programming Language Used | EcoStruxure Machine Expert |
Key Features
- Designed for modular machines and distributed architectures with flexibility.
- Compact DIN rail mount suitable for wall and floor standing control enclosures.
- Supports variable speed drives and remote I/O via CANopen and Ethernet.
- Embedded Ethernet port with FTP, Web, SQL, SNMP, OPC UA, and DNS services.
- High processing power with 128000 steps program capacity and large memory.
- Equipped with 4 communication ports and battery backup for reliability.
- Built-in web server enables visualization and remote maintenance capabilities.
- Operates within temperature range of -10°C to 55°C for industrial use.
Product Description
Schneider Electric TM251MESC Modicon TM Series Logic Controller is a high-performance industrial automation controller designed for complex machine control applications involving analogue inputs and pulse outputs. Featuring compact dimensions of 90mm length, 54mm width, and 95mm depth, it is optimized for DIN rail mounting in wall or floor-standing enclosures.
It supports EcoStruxure Machine Expert programming language and offers program capacity of 128000 steps. The controller includes 4 communication ports using CANopen interfaces and an embedded Ethernet port for versatile networking including FTP Client/Server, Web Server, SQL Client, SNMP Client/Server, OPC UA Server, SNTP Client, and DNS Client, enabling seamless machine monitoring and maintenance remotely via smartphones, tablets, or PCs.
The Modicon TM251MESC features 64MB RAM, 128MB Flash memory, and an SD card slot for expanded data storage. Battery backup ensures uninterrupted operation during power loss. Operating temperatures range between -10°C and 55°C, suitable for industrial environments.
Certified by multiple international standards (ABS, C-Tick, cULus, DNV, EAC, GL, LR), it guarantees compliance and safety in demanding applications. Typical use cases include machine automation in manufacturing, industrial, HVAC, water treatment, and other sectors requiring reliable programmable logic control.
Designed for modular and distributed machine architectures. Suitable for remote I/O and variable speed drive connectivity via CANopen and Ethernet. Embedded web server facilitates real-time visualization and easy maintenance.
High memory capacity enables handling complex machine logic. Supports diverse communication protocols for integration flexibility. DIN rail mounting for convenient installation in control cabinets. Battery backup enhances reliability in critical processes.
Compliance with international standards ensures operational safety.
This product is essential for industrial automation projects requiring advanced programmable logic controllers that combine compact size, connectivity, and performance reliably throughout the machine lifecycle. Browse more products in the PLCs - Programmable Logic Controllers category at EnvMart for complementary devices and solutions.
