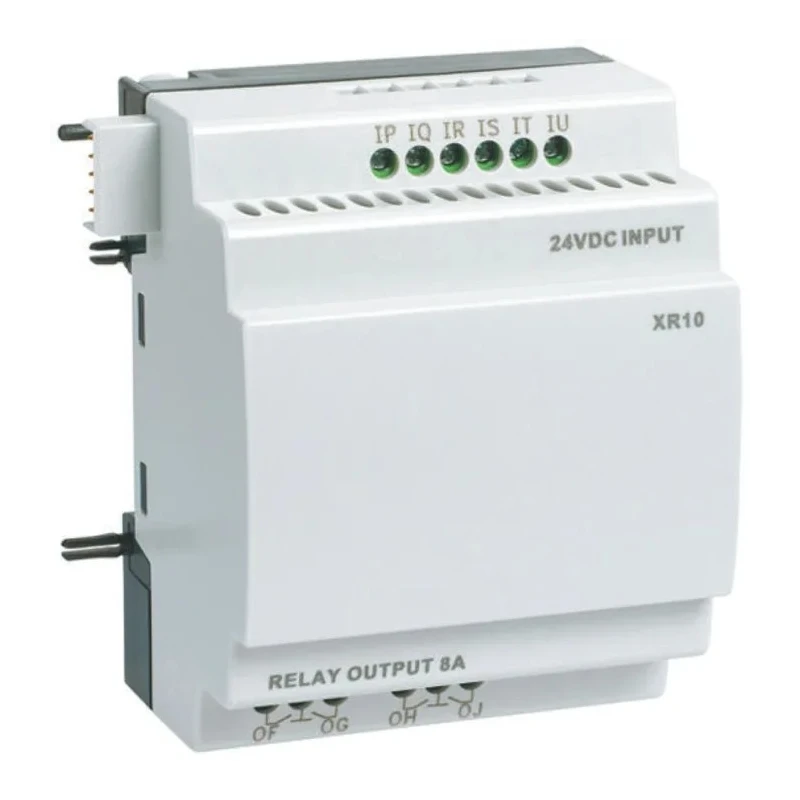

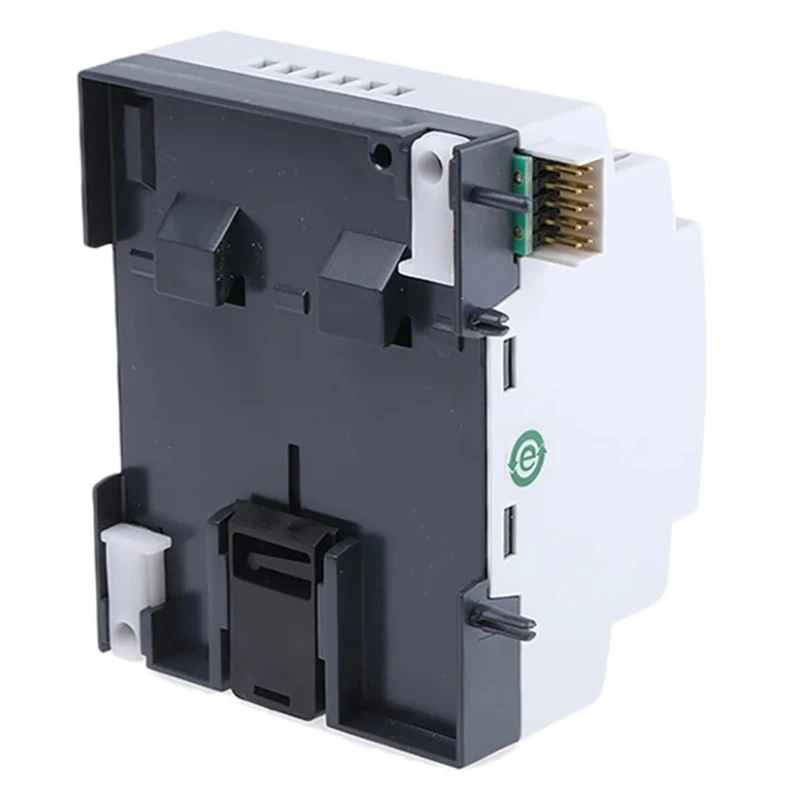

Crouzet Millenium 3 Series I/O Module 6-Input Digital Input 4 Outputs Relay Output 88970221
Specifications
| Country of Origin | France |
|---|---|
| Brand | Crouzet |
| Length | 107.6mm |
| Model | 88970221 |
| Depth | 70mm |
| Width | 72mm |
| Mount Type | DIN Rail |
| Number of inputs | 6 |
| Output type | Relay |
| Series | Millenium 3 |
| Output Current | 8A |
| Input Type | Digital |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 4 |
| Supply Voltage | 24V dc |
| Number of Communication Ports | 2 |
| Communication Port Type | USB, Serial |
| Programming Language Used | FBD, Ladder Diagram |
Key Features
- This module supports digital input types and relay output with 8A output current capacity.
- It operates at a supply voltage of 24V DC with USB and Serial communication ports.
- Equipped with a 4-line, 18-character display including scrolling text and bargraph functionality.
- Battery backup is included to maintain operation during power interruptions.
- Mounting is designed for DIN rail installation, suitable for industry environments.
- Operating temperature range is from -20°C to 55°C, ensuring reliable performance across various conditions.
- Programmable using FBD and Ladder Diagram programming languages for flexible industrial automation control.
- The compact design measures 107.6mm in length, 72mm in width, and 70mm in depth.
Product Description
Crouzet 88970221 Millenium 3 Series I/O Module is a high-performance industrial automation module featuring 6 digital inputs and 4 relay outputs capable of 8A output current. Designed to operate at 24V DC supply voltage, this module offers robust communication via USB and Serial ports, enabling integration into sophisticated control systems.
The module includes a clear 18-character by 4-line display with scrolling text and bargraph to provide real-time status feedback. It supports both Ladder Diagram and Function Block Diagram (FBD) programming languages, allowing engineering teams to tailor the logic to diverse automation needs.
Mounting on a DIN rail simplifies installation in control cabinets. The module is rated for operation between -20°C to 55°C, suitable for varied industrial environments. A battery backup system ensures uninterrupted operation and data retention during power interruptions.
Dimensions of 107.6mm length, 72mm width, and 70mm depth contribute to its compact footprint, making it ideal for expandable automation architectures using the Crouzet Millenium 3 series controllers. The extended memory and increased input/output capacities provide enhanced flexibility and scalability compared to earlier generation units.
This module supports digital input types and relay output with 8A output current capacity. Operates at 24V DC with USB and Serial communication ports for versatile connectivity. Equipped with a user-friendly multi-line display for monitoring and control.
Compatible with FBD and Ladder Diagram programming for custom automation solutions. Robust design with battery backup for reliable industrial performance. Mounts easily on a standard DIN rail, fitting into typical industrial control panels.
Functions reliably within -20°C to 55°C operating temperature range. Manufactured in France ensuring quality and adherence to rigorous standards.
This Crouzet Millenium 3 I/O Module is ideal for industrial automation applications including manufacturing process control, building automation, and machine control systems. Its expandable design supports complex control requirements while maintaining compact and reliable operation.
Explore further Crouzet products and related industrial automation solutions in the Electronics & Electricals category at EnvMart for high quality and dependable control gear.
Explore more products in our Input/Output Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The module has an output current capacity of 8A for its relay outputs.
It operates at a supply voltage of 24V DC.
This model supports 6 digital inputs.
The dimensions are 107.6mm in length, 72mm in width, and 70mm in depth.
It includes USB and Serial communication ports for versatile connectivity.
It supports programming in Function Block Diagram (FBD) and Ladder Diagram languages.
The operating temperature range is from -20°C to 55°C.
This module provides 4 relay outputs.
It is designed for DIN rail mounting, suitable for industrial environments.
This module is manufactured in France.
It is suitable for industrial automation applications including manufacturing process control and machine control systems.
Yes, it includes a battery backup to maintain operation during power interruptions.
