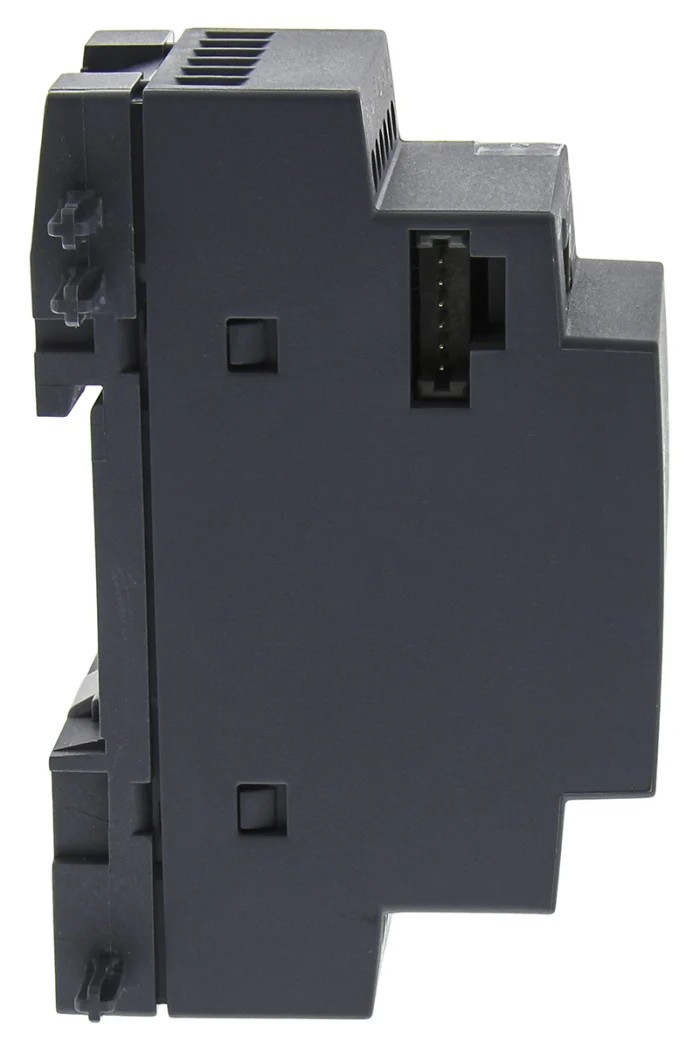

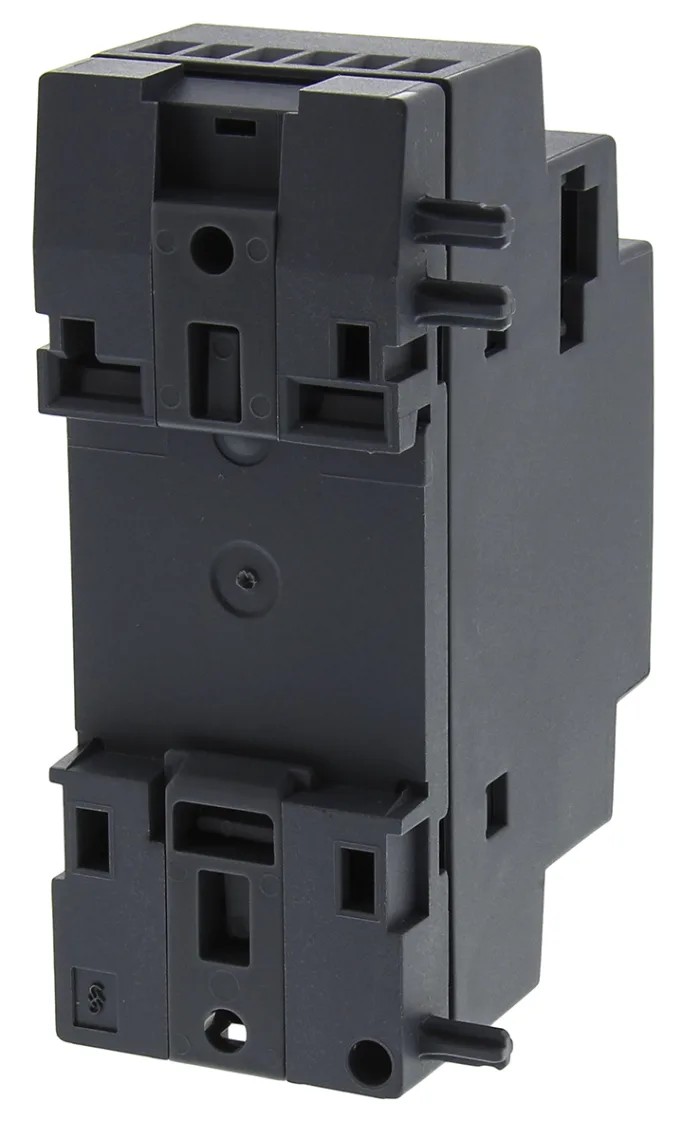

Siemens LOGO! Series I/O Module 4-Input Digital Input 4 Outputs Relay Output 6ED1055-1HB00-0BA2
Specifications
| Country of Origin | China |
|---|---|
| Brand | Siemens |
| Length | 90mm |
| Model | 6ED1055-1HB00-0BA2 |
| Depth | 58mm |
| Width | 35.5mm |
| Mount Type | DIN Rail |
| Number of inputs | 4 |
| Output type | Relay |
| Series | LOGO! |
| Output Current | 5A |
| Input Type | Digital |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 4 |
| Supply Voltage | 24V dc |
| Standards/Approvals | CE, CSA, FM |
| Communication Port Type | Computer |
Key Features
- Provides four additional digital inputs and four relay outputs to extend PLC control capabilities.
- Compact DIN rail mount design with dimensions 90mm length, 35.5mm width, and 58mm depth.
- Supports a supply voltage of 24 V DC for compatibility with common control systems.
- Relay outputs support up to 5 A output current with switching power up to 1000 W.
- Operating temperature range from 0°C to 55°C for use in industrial environments.
- Communication port type is computer interface compatible for seamless integration.
- Digital inputs consume minimal current between 1.1 and 5.5 mA for energy efficiency.
- Certified with CE, CSA, and FM standards ensuring industrial safety and compliance.
Product Description
Siemens 6ED1055-1HB00-0BA2 LOGO! Series I/O Module is a digitally operated expansion module designed for the LOGO! 8 and LOGO! 8.2 programmable logic controllers. It adds four digital inputs and four relay outputs to your control system, enabling automation of additional machine functions with reliable switching capability.
The module features compact dimensions of 90 mm height, 35.5 mm width, and 58 mm depth, allowing for easy mounting on DIN rails in crowded control panels. Operating on a 24 V DC supply voltage, it integrates smoothly with common industrial power supplies and control environments.
Relay outputs support an output current of up to 5 A with a switching power rating of 1000 W, suitable for heavy-duty electrical loads. Mechanical switching speed reaches up to 10 cycles per second for responsive control. The device operates safely under temperatures ranging from 0°C to 55°C and carries CE, CSA, and FM certifications to meet rigorous industrial standards.
The digital inputs have low power consumption, drawing between 1.1 and 5.5 mA, which contributes to system efficiency. An IP20 rating ensures protection against solid objects larger than 12 mm, including fingers, enhancing operator safety.
Provides four digital inputs and four relay outputs for PLC expansion. Compact DIN rail mount design fits standard panels. 24 V DC supply voltage compatible with industrial systems. Relay outputs rated for 5 A and 1000 W switching power.
Operating temperature from 0°C to 55°C. Low input current consumption for energy savings. Meets CE, CSA, and FM safety standards. IP20 protection for safety against solid objects.
This Siemens LOGO! I/O Module is ideal for industrial automation applications including manufacturing lines, process control, building automation, and machine tools. Its durable construction and safety features enable reliable operation in harsh industrial environments. Explore the extensive Siemens range of automation components on EnvMart for comprehensive industrial solutions.
Explore more products in our Input/Output Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The module operates on a supply voltage of 24 V DC, making it compatible with common industrial power supplies.
This model has compact dimensions of 90 mm in length, 35.5 mm in width, and 58 mm in depth, suitable for DIN rail mounting.
It provides four digital inputs and four relay outputs, allowing for expansion of PLC control capabilities.
The relay outputs support an output current of up to 5 A, with a maximum switching power of 1000 W.
The operating temperature range is from 0°C to 55°C, suitable for various industrial environments.
It features a computer interface compatible communication port for seamless integration into control systems.
The module is certified with CE, CSA, and FM standards, ensuring compliance with industrial safety requirements.
The digital inputs consume minimal current, drawing between 1.1 and 5.5 mA, contributing to energy efficiency.
This unit is designed for DIN rail mounting, making it easy to install in standard control panels.
The mechanical switching speed of the relay outputs can reach up to 10 cycles per second, allowing for responsive control.
It provides relay outputs, which are suitable for controlling heavy-duty electrical loads in industrial applications.
The module is manufactured in China, as indicated by its country of origin.
