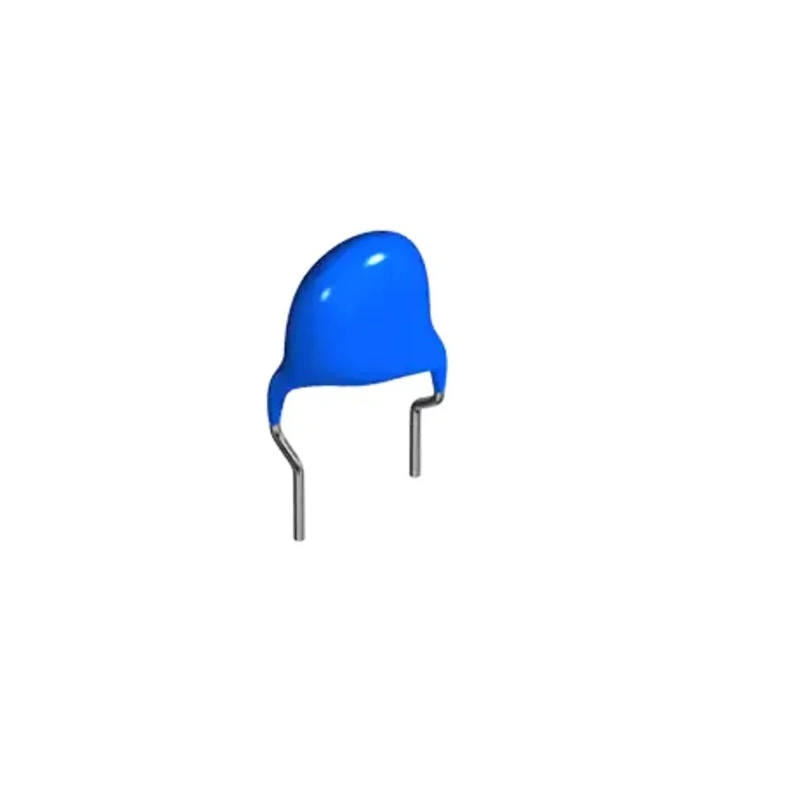

TDK Single Layer Ceramic Capacitor 100pF 2kV DC 5% Tolerance Push-in Mount 125°C Max Operation Temperature CC45SL3DD101JYVNA

TDK CC45SL3DD101JYVNA is a single layer ceramic capacitor designed for high voltage and high frequency applications. The capacitor features a capacitance of 100pF and supports a maximum DC voltage of 2kV with a tolerance of 5%. It is constructed as a ceramic disc type capacitor with push-in leads, enabling convenient installation in various electronic assemblies.

Designed for robustness, the capacitor offers a maximum operating temperature of 125°C, making it suitable for demanding environments including industrial electronics, power supplies, and snubber circuit protection.

The product is classified as a commercial grade capacitor with low dissipation factor and reduced self-heating effects at high frequencies and voltages. This supports reliable performance and longevity in critical applications.

It conforms to RoHS directives, featuring lead-free lead wire and internal solder materials. Additionally, the capacitor is compatible with halogen-free external resin coatings, aligning with environmentally conscious manufacturing standards.

The capacitor includes 2 pins and has a diameter of 7.5mm, supporting integration into compact circuit layouts. Its design targets applications such as snubber circuits in power supplies and other high voltage electronic components.

Capacitance of 100pF suitable for high voltage applications. Rated for 2kV DC voltage ensuring high voltage endurance. Push-in mounting type for easy and secure installation. Operating temperature range up to 125°C for thermal robustness.

Compliant with RoHS directive ensuring lead-free construction. Commercial grade ceramic disc capacitor well suited for snubber circuits. Low dissipation factor and decreased self-heating at high frequency operations. Compatible with halogen free external resin coating for environmental safety.

Pin count of 2 typical for disc capacitor configurations. Diameter of 7.5mm enabling compact footprint in electronic circuits.

This TDK single layer ceramic capacitor is ideal for industrial, laboratory, power electronics, and manufacturing applications requiring durable, high-voltage capacitors. It is widely used in power supply snubber protection and other electronic circuit functions.
