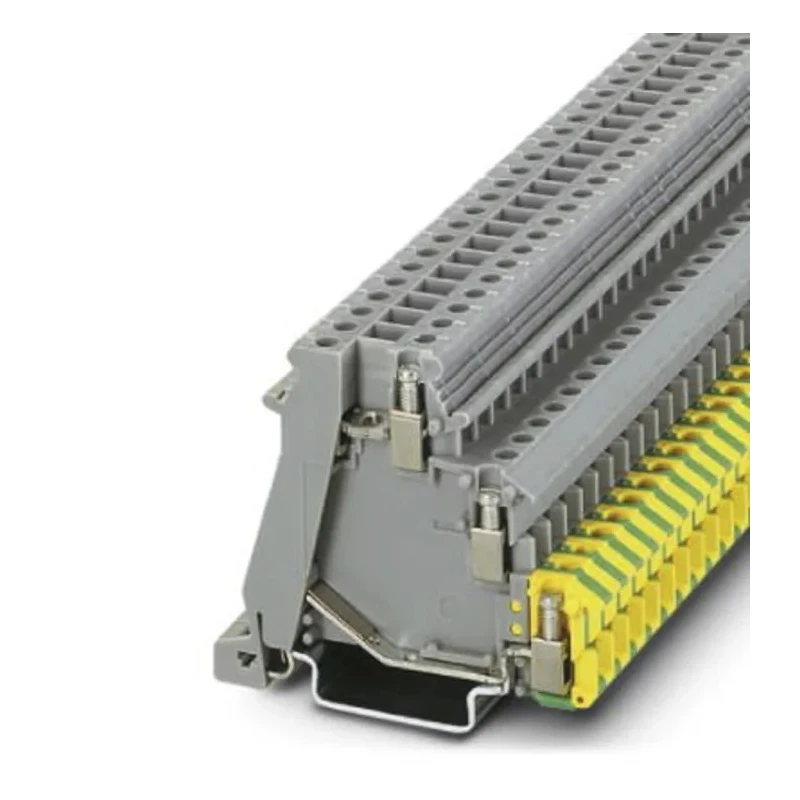

Phoenix Contact DIN Rail Terminal Block, Grey, Sensor/Actuator Sub Type, 3-Level, Screw Termination, 24A Current 2717016

Phoenix Contact 2717016 DIN Rail Terminal Block is a multi-level grey terminal block designed for efficient and flexible wiring in electrical and industrial automation applications. It is a sensor/actuator sub type with robust screw termination providing reliable electrical connections and current carrying capability of 24A.

Part of the DOK 1.5 series, this terminal block supports blocking voltages up to 4kV and cable cross-sectional areas from 0.2mm² up to 4mm². It is engineered to withstand harsh operating temperatures ranging from -60°C to 105°C, making it suitable for diverse environments.

The 3-level configuration facilitates parallel wiring of three conductors, including a PE connection at the lower level, enabling sophisticated wiring schemes for machine controls and automation technology. Mounting is intended on flat top hat rails complying with DIN EN 50 022 standards, ensuring compatibility with standard industrial control panels.

Certified to international standards IEC 60947-7-1, IEC 60947-7-2, and approved by UL, cULus, and CSA, this terminal block provides assured compliance and safety. It accommodates wire sizes from AWG 24 to AWG 12, suitable for sensor and actuator wiring without the inclusion of fuses.

The terminal block is from Phoenix Contact’s DOK 1.5 series, specializing in multi-level wiring. It offers screw type termination enabling secure fastening of wires. Rated for continuous current of 24A with a blocking voltage of 4kV.

Supports wire sizes between 0.2 mm² and 4 mm², corresponding to AWG 24 to AWG 12. Operating temperature range ensures performance from -60°C up to 105°C. Designed specifically for sensor and actuator terminal applications.

Manufactured in Poland under stringent quality controls. Complies with key international standards and safety approvals. Ideal for mounting on DIN standard flat top hat rails in industrial electrical installations.

This terminal block is well-suited for use in industrial automation, manufacturing, machine controls, electrical distribution panels, and other industrial settings where reliable, robust terminal connections are essential. Its design facilitates neat and efficient wiring for modern machine controls and industrial electrical assemblies.
