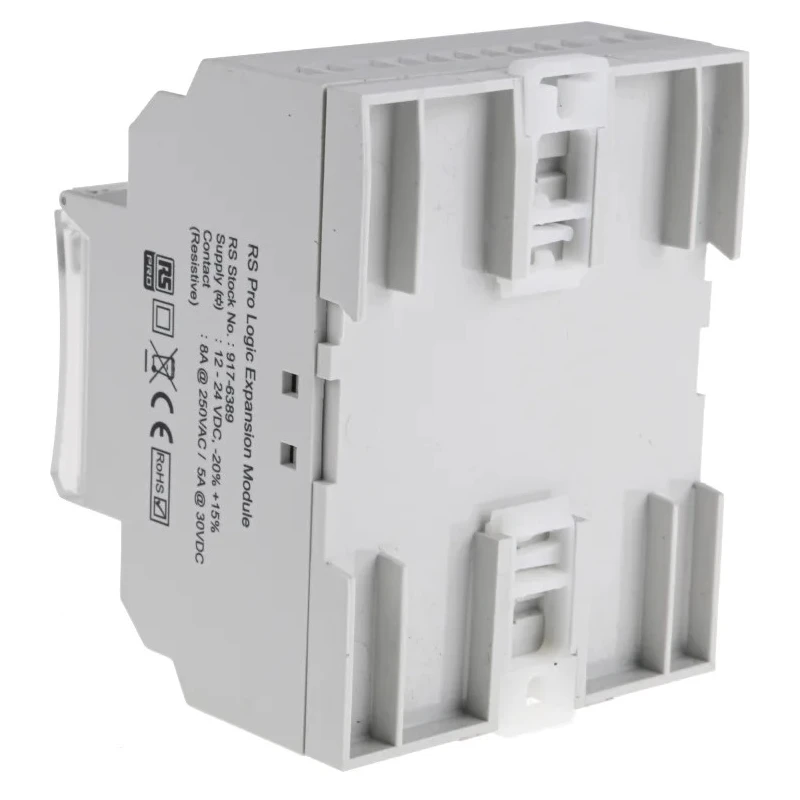

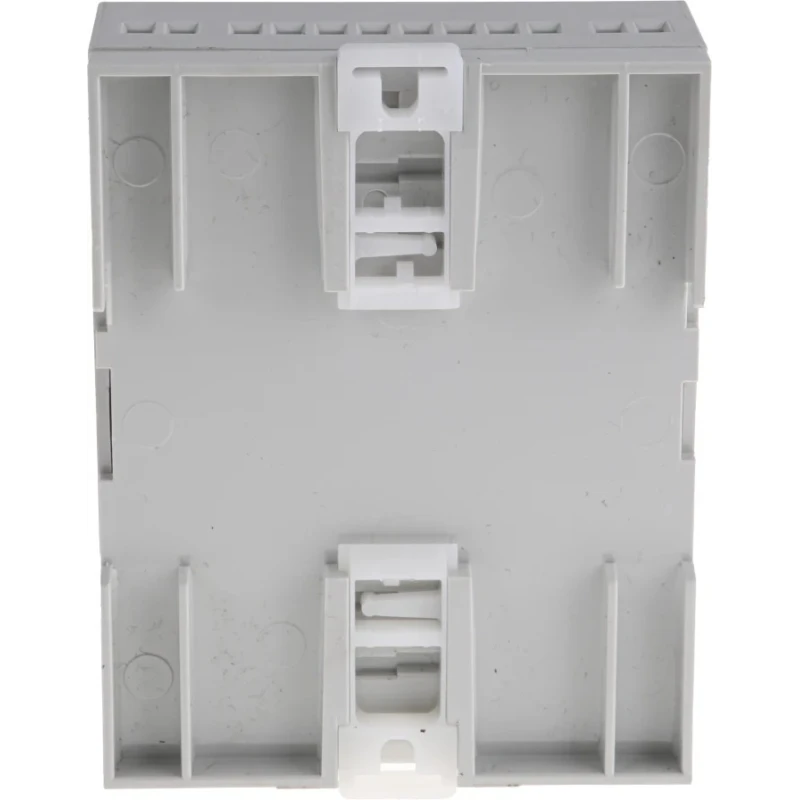

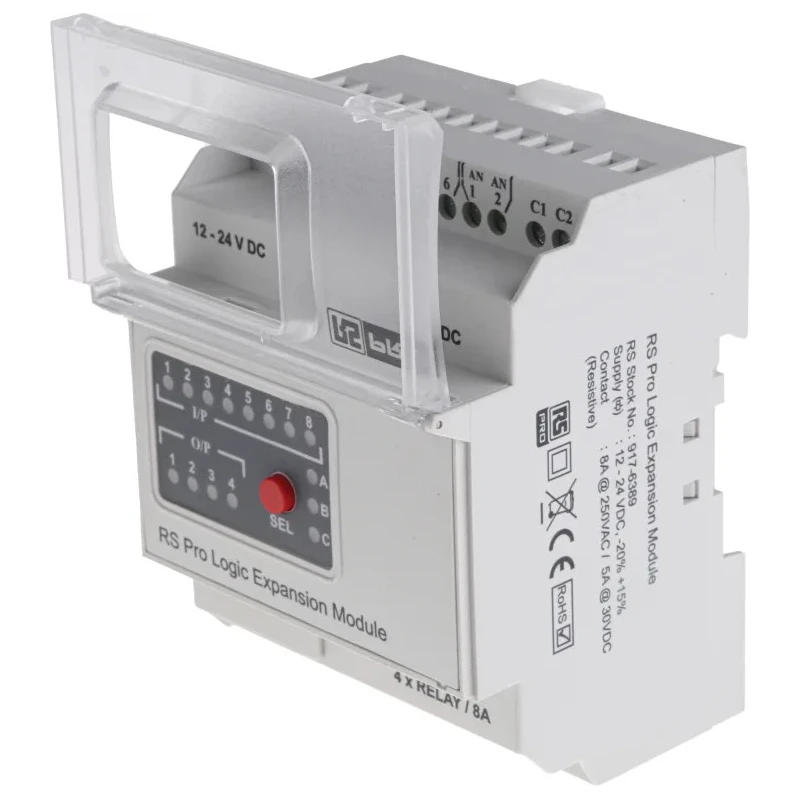

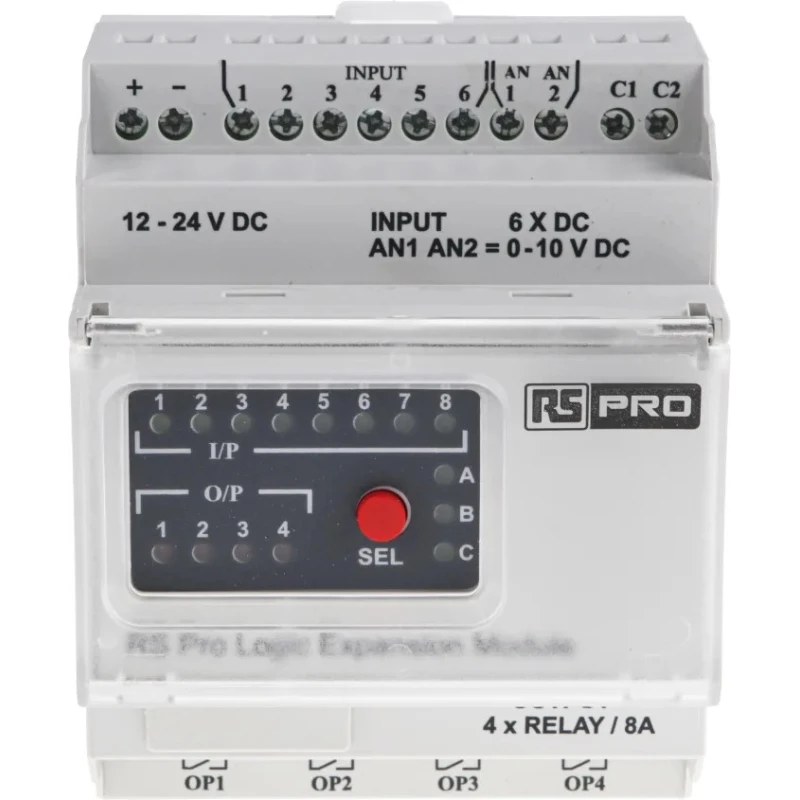

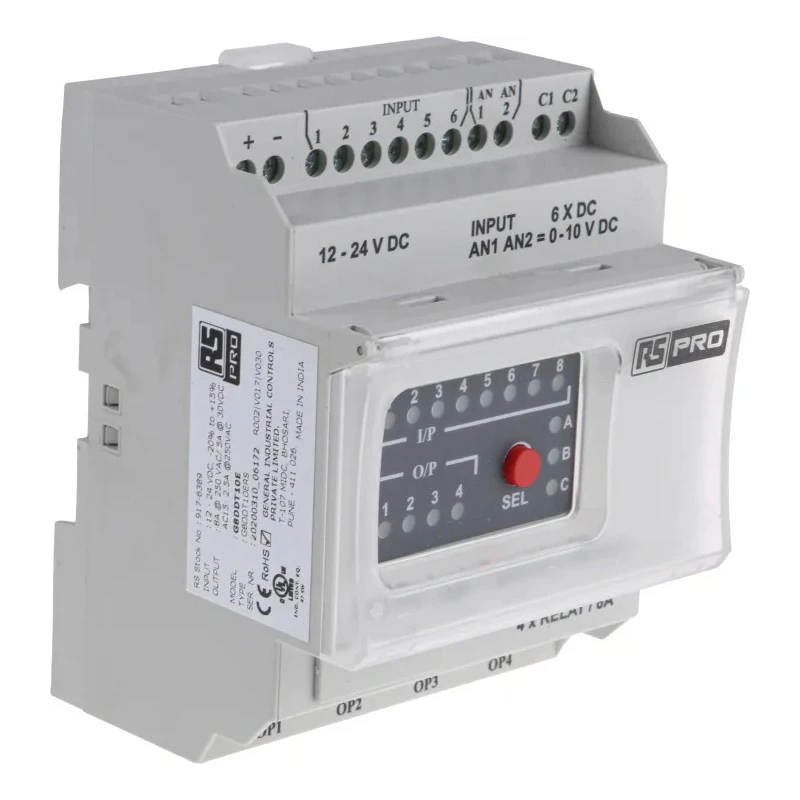

RS PRO I/O Extension Module, 8-Input Digital Input, 4 Outputs Digital Output 12-24V DC 8A 917-6389

Free Delivery in India | Lowest Global Shipping Charges

RS PRO I/O Extension Module, 8-Input Digital Input, 4 Outputs Digital Output 12-24V DC 8A 917-6389

Name: RS PRO I/O Extension Module, 8-Input Digital Input, 4 Outputs Digital Output 12-24V DC 8A 917-6389
Brand: RS PRO
SKU: 412555
Price: 100.64 USD
Availability: InStock



Category Input/Output Module Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Length	90mm
Model	917-6389
Depth	65mm
Width	72mm
Mount Type	DIN Rail
Number of inputs	8
Output type	Digital
Output Current	8A
Input Type	Digital
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-10°C
Interfaces	language
Number of outputs	4
Supply Voltage	12, 24V dc
Standards/Approvals	CE, cULus
Number of Communication Ports	1
Communication Port Type	Serial
Programming Language Used	Ladder Programming

Key Features

Equipped with 8 digital inputs to handle a variety of control signals.
Provides 4 digital outputs with 8A output current capacity.
Operates reliably within a temperature range of -10°C to 55°C.
Powered by 12 to 24V DC supply voltage ensuring stable operations.
Features an easy-to-mount DIN rail design for quick installation.
Includes a single serial communication port for seamless Modbus networking.
Supports Ladder programming language for intuitive programming.
Integrated battery backup ensures data retention during power interruptions.

Product Description

RS PRO 917-6389 I/O Extension Module is designed for industrial automation systems, offering 8 digital inputs and 4 digital relay outputs. It supports applications such as water treatment plants and manufacturing automation, where precise control of temperature, pressure, and flow rates is critical.

This module operates over a supply voltage range of 12V to 24V DC and tolerates environmental conditions from -10°C up to +55°C. The compact module measures 90mm in length, 72mm in width, and 65mm in depth, and can be conveniently mounted on DIN rails ensuring easy integration into existing systems.

The device includes a single serial communication port to enable Modbus networking for communication with RS PRO logic modules or computer systems. Its programming capability includes up to 250 lines in Ladder programming language, facilitating straightforward customization and control logic development.

Features like battery backup protect programmed data during power loss, enhancing system reliability. Certified with CE and cULus standards, this module ensures quality and industry compliance.

The RS PRO I/O Extension Module is suitable for commercial and industrial applications, expanding capability for RS PRO logic modules with digital input/output management. The free RS PRO Logic Module software available for download enables easy programming, simulation, and debugging on a PC.

Equipped with 8 digital input channels for versatile control. Four digital outputs rated for 8A current handling. Supports serial communication via Modbus protocol. Wide operating temperature range between -10°C and 55°C.

Compact design with DIN rail mounting for space-saving installation. Battery backup included to maintain program integrity. Compatible with RS PRO logic modules and software for easy integration. Certified to CE and cULus safety standards.
