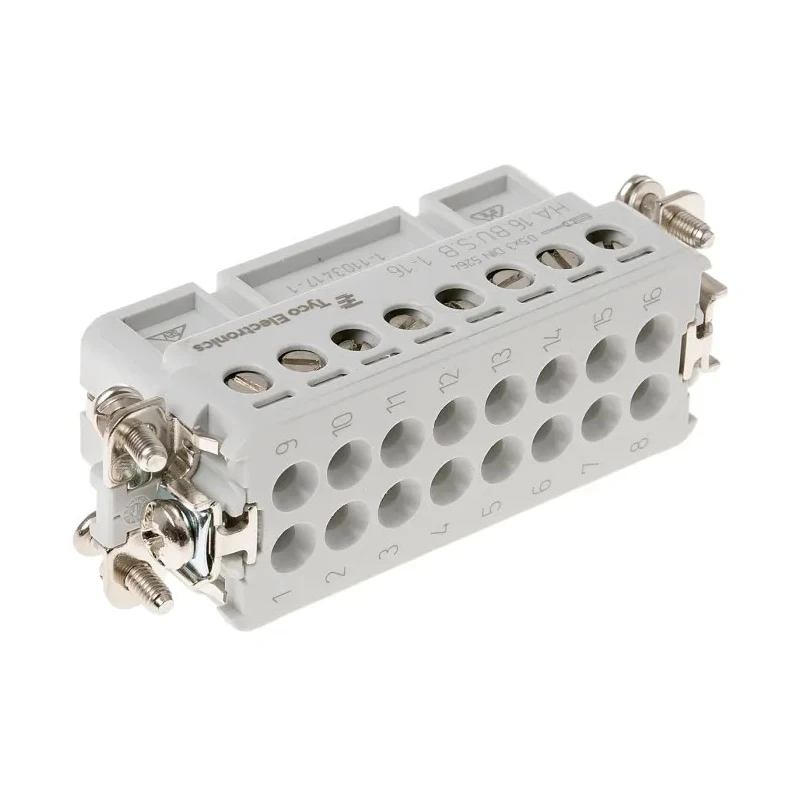

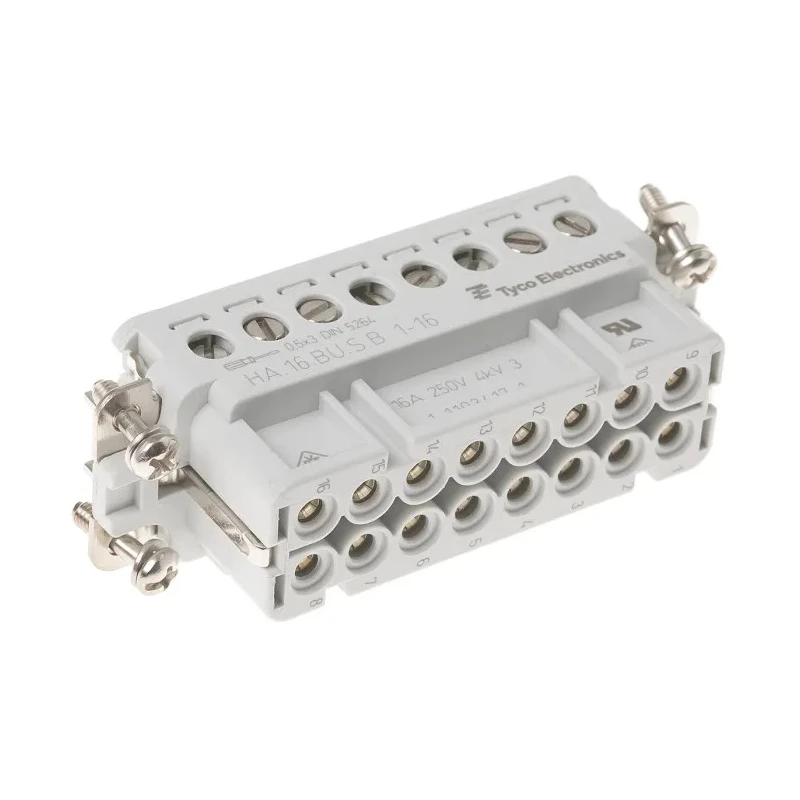

TE Connectivity Contact Insert HA Series 16 Contacts Straight Orientation 1-1103417-1

TE Connectivity 1-1103417-1 Contact Insert from the HA Series is designed for heavy duty power connectors with a total of 16 contacts arranged in 2 rows providing secure and reliable electrical connections. The insert supports straight orientation enabling straightforward assembly into power connectors.

This insert includes a dedicated earth contact to ensure proper grounding and safety compliance. Both male and female inserts in this series fit seamlessly into cable hoods or base housings featuring a twist-locked design which enhances connection robustness. For building a 32-way male connector, the 1-16 pole and 17-32 pole inserts can be combined together in compatible housings. Similarly, two 1-16 pole female inserts together enable formation of 32-way female connectors.

The product is suited for high-density applications due to its sequential contact numbering. It incorporates both screw and spring clamp contacts for ease of installation and maintenance; crimp contacts and suitable crimping tools are available separately as per requirements. Its robust mechanical and electrical design supports industrial, manufacturing, and electronic power supply applications.

These connector inserts are listed by UL and certified by CSA and SEV, ensuring adherence to stringent industry standards. The product is extensively used in industrial systems, equipment assemblies, heavy machinery, and infrastructure where dependable power connections are critical.

Choose TE Connectivity HA Series inserts for reliable, modular heavy duty power connector solutions. Browse our Electronics Components category for similar power connectors and related accessories.

This connector insert belongs to the HA series suitable for heavy duty power applications. It features 16 contacts arranged in 2 rows offering reliable electrical connectivity. The insert is designed for straight orientation facilitating easy integration in power connectors.

Includes a separate earth contact for safety and grounding compliance. Supports both male and female inserts that fit cable hoods or base housings with twist-lock mechanism. Compatible with 32-way connectors by combining multiple 16-way pole inserts as needed.

Suitable for high density applications with sequential contact numbering. Screw and spring clamp contacts are included; crimp contacts and crimping tools are ordered separately. Explore more in Heavy Duty Power Connector Inserts and Modules on EnvMart.
