HARTING Heavy Duty Power Connector Insert 16A Han B Series Male 16 Contacts 09330164625

Free Delivery in India | Lowest Global Shipping Charges

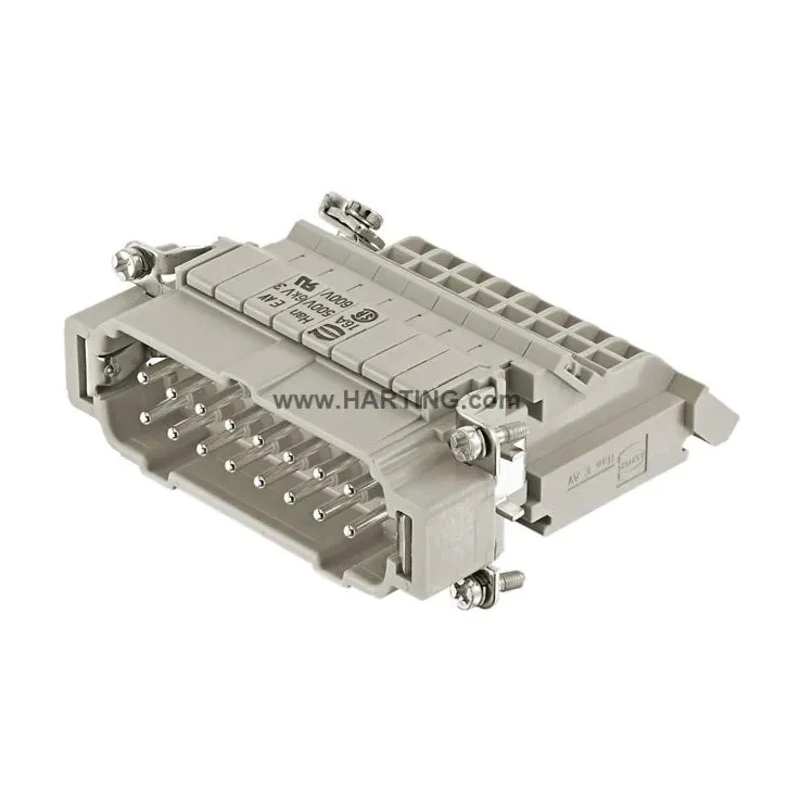

HARTING Heavy Duty Power Connector Insert 16A Han B Series Male 16 Contacts 09330164625

Name: HARTING Heavy Duty Power Connector Insert 16A Han B Series Male 16 Contacts 09330164625
Brand: HARTING
SKU: 172503
Price: 98.27 USD
Availability: InStock



Category Heavy Duty Power Connector Insert Brand HARTING Condition New

Specifications

Country of Origin	Germany
Voltage	500V
Brand	HARTING
Orientation	Straight
Mount Type	Cable
Contact Material	Copper Alloy
Current Rating	16A
Series	Han B
Thread Size	M3 x 10
Sub Type	Connector Insert
Number of Rows	2
For Use With	Heavy Duty Power Connector
Pole Format	16+E
Contact Plating	Silver
Number of Contacts	16
Connector Gender	Male
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²

Key Features

Rated for 16 amperes, ensuring efficient power handling.
Compatible with Han B series housings and hoods.
16 contact points arranged in 2 rows for versatile wiring configurations.
Constructed with copper alloy contacts plated in silver for excellent conductivity.
Designed with a straight orientation and cable mount type for secure installation.
Accommodates wire sizes from 0.2 mm² to 2.5 mm² with M3 x 10 thread size.
Operates safely at voltages up to 500V.
Engineered for a mechanical life of 500 mating cycles.

Product Description

HARTING 09330164625 Heavy Duty Power Connector Insert is a robust electrical connector designed to handle currents up to 16A with a voltage rating of 500V. It belongs to the Han B series and features a male connector gender with 16 contacts arranged in two rows. The connector insert is designed for cable mounting and is constructed from copper alloy contacts with a silver plating for superior electrical conductivity and corrosion resistance.

Suitable for use in demanding industrial environments, this connector ensures secure and customizable wiring solutions compatible with corresponding Han E AV terminal blocks and housing ranges 5, 6, 7, and 8. The inclusion of a pre-mating earth and screw terminal wire acceptance for wire sizes from 0.2 mm² to 2.5 mm² enhances its versatility and application scope.

The connector insert is engineered for a mechanical life of 500 mating cycles and features a straight orientation. The use of high-quality materials, along with its manufacturing origin in Germany, guarantees long-lasting reliability in electronic and power connector systems.

Rated for 16 amperes current and 500 volts voltage capacity. Han B series compatibility with 16+E pole format. 16 contact points arranged in 2 rows for multiple wiring options. Copper alloy contacts plated with silver for optimal conductivity.

Supports wire sizes ranging from 0.2 mm² to 2.5 mm² with M3 x 10 thread size. Cable mount type and straight orientation design. Mechanical durability of up to 500 mating cycles. Made in Germany ensuring high manufacturing standards.

This Heavy Duty Power Connector Insert is ideal for industrial power connector applications where reliability and robust electrical contact performance are essential. It is compatible with a range of Han E series housings and is designed to prevent incorrect mating through polarization features. It is not recommended to mate or unmate under electrical load to maintain connector integrity.
