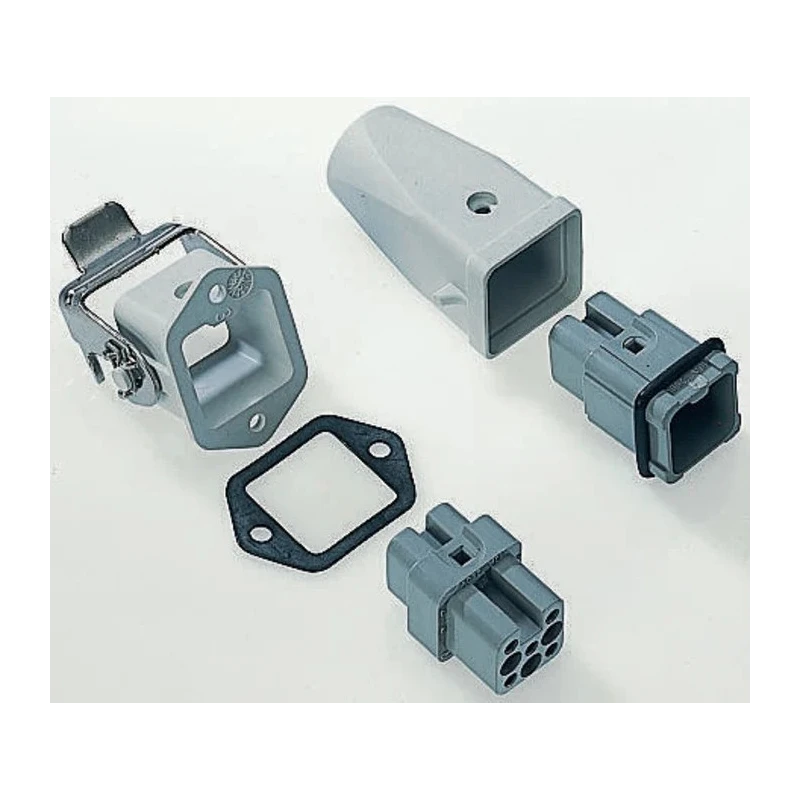

EPIC Heavy Duty Power Connector Insert 10A 250V H-D Series Male 8 Contacts 11252500

EPIC 11252500 Heavy Duty Power Connector Insert is a reliable male connector insert designed for high power applications with a current rating of 10A and voltage rating of 250V. This H-D series insert features 8 contacts organized in 3 rows with a 7+PE pole format, making it suitable for heavy duty electrical power connections in various industrial and commercial environments.

Constructed using high-quality copper alloy contacts with silver plating, the connector ensures excellent electrical conductivity and long service life. The straight orientation and cable mount type provide ease of installation and durability. Its IP65 rating guarantees protection against dust and water ingress, ideal for demanding field applications.

This connector insert supports crimp termination using an 8 point indent crimp tool, providing secure and effective contact termination. It is compatible with type HA3 hoods such as the 284-6757, allowing full assembly in configurations tailored for power and control connections.

The design incorporates a separate earth connection that links all inserts to the metal body shells, enhancing safety and grounding integrity. The connector complies with standards including VDE 0110/72, 0110b, 79, and VDE 0627/86, with approvals from SEV, UL, and CSA, although standards/approvals are noted as 'No' in specific attributes.

This Heavy Duty Power Connector Insert is ideal for use in industrial automation, manufacturing machinery, power distribution systems, and other applications requiring rugged and dependable electrical connectors.

Provides high density contact loading for more power and control connections in smaller shell sizes. Constructed with copper alloy contacts plated with silver for superior conductivity. Features straight orientation and IP65 protection rating for robust environmental resistance.

Designed for crimp termination using a quality 8 point indent crimp tool for effective connection. Compatible with type HA3 hood 284-6757 or similar accessories for complete connector assembly. Ensures separate earth connection through all inserts connected to metal body shells.

Connector insert has 7+PE pole format across 3 rows to support complex wiring configurations. Suitable for industrial, manufacturing, and commercial power connector applications requiring safe and reliable connections. Browse the Electronics & Electricals category at EnvMart for more power connectors and heavy duty inserts from leading manufacturers like EPIC.
