HARTING Heavy Duty Power Connector Insert 16A Han B Series Male 6 Contacts 09330064625

Free Delivery in India | Lowest Global Shipping Charges

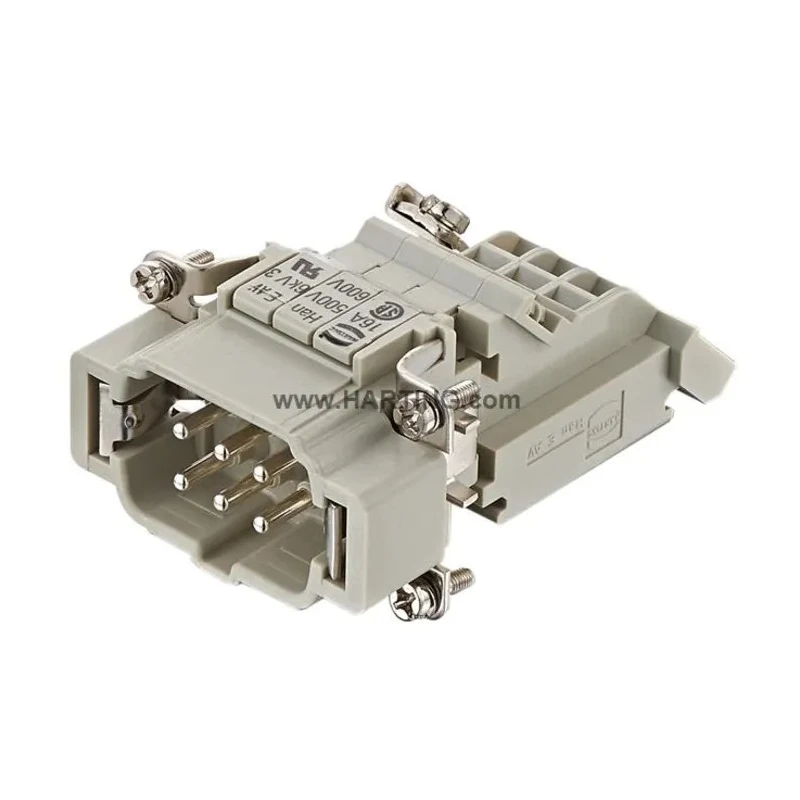

HARTING Heavy Duty Power Connector Insert 16A Han B Series Male 6 Contacts 09330064625

Name: HARTING Heavy Duty Power Connector Insert 16A Han B Series Male 6 Contacts 09330064625
Brand: HARTING
SKU: 172505
Price: 56.3 USD
Availability: InStock



Category Heavy Duty Power Connector Insert Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	HARTING
Orientation	Straight
IP Rating	IP65
Mount Type	Cable
Contact Material	Copper Alloy
Current Rating	16A
Series	Han B
Thread Size	M3 x 10
Sub Type	Connector Insert
Number of Rows	2
For Use With	Heavy Duty Power Connector
Pole Format	6+E
Contact Plating	Silver
Number of Contacts	6
Connector Gender	Male
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²

Key Features

This connector insert supports a voltage rating of 500V.
It features a pole format of 6+E with two rows of contacts for secure connections.
The contact material is high-quality copper alloy with silver plating for enhanced conductivity.
Cable mount type and IP65 rating ensure robust performance in demanding industrial environments.
The wire acceptance range is 0.2 to 2.5 mm² with M3 x 10 thread size screws.
Compatible with Han E AV terminal blocks and associated hoods and housings.
Mechanical mating durability is rated for 500 cycles, supporting long-term reliability.
Suitable for industrial, manufacturing, and power connector applications requiring high-performance inserts.

Product Description

HARTING 09330064625 Heavy Duty Power Connector Insert is a male connector insert designed for power connectors demanding a current rating of 16A and voltage rating up to 500V. It belongs to the Han B series, featuring 6 contacts arranged in 2 rows with a pole format of 6+E for secure and reliable wire terminations.

This connector insert uses copper alloy contacts plated with silver to optimize electrical conductivity and corrosion resistance. It accepts wire sizes ranging from 0.2 mm² to 2.5 mm², secured using M3 x 10 threaded screws, making it suitable for a variety of cable specifications.

Designed for cable mount applications, it offers an IP65 ingress protection rating which ensures resistance against dust and water jets, enabling it to perform in harsh industrial environments. The insert is part of HARTING's Han E AV terminal blocks family, allowing easy integration with matching bulkhead or panel mount housings, and is compatible with Han E ES AV and Han E AV hoods and housings in ranges 5 to 8.

The product’s mechanical life supports 500 mating cycles, ensuring long-lasting performance and reliability. Such robust build quality makes it ideal for use in industrial automation, manufacturing equipment, power distribution systems, and other electrical installations that require heavy-duty power connectors.

This insert supports 16A current at 500V voltage rating. 6 contacts arranged in 2 rows with pole format 6+E for flexible wiring. Contact material is copper alloy with silver plating for durability and conductivity. Cable mount with IP65 rating for dust and water protection.

Wire acceptance from 0.2 mm² to 2.5 mm² using M3 x 10 screws. Compatible with Han E AV series hoods and housings in ranges 5 to 8. Mechanical mating durability rated to 500 cycles.

This connector insert is suitable for demanding industrial, laboratory, construction, HVAC, and manufacturing applications where dependable high-current electrical connections are required.

Explore a range of high-quality HARTING power connectors and components to fulfill your industrial connectivity needs at EnvMart.
