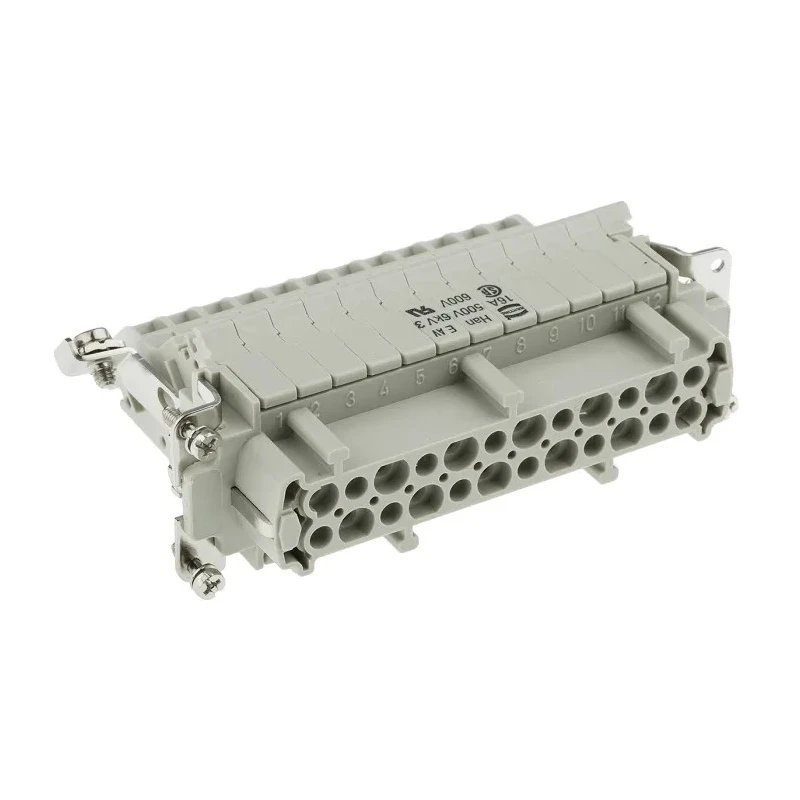

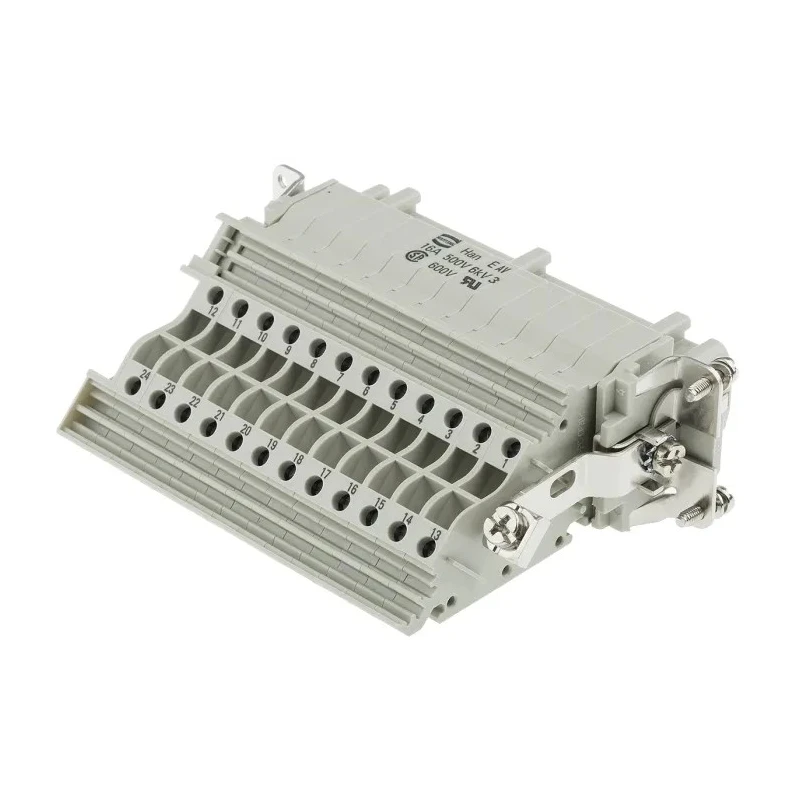

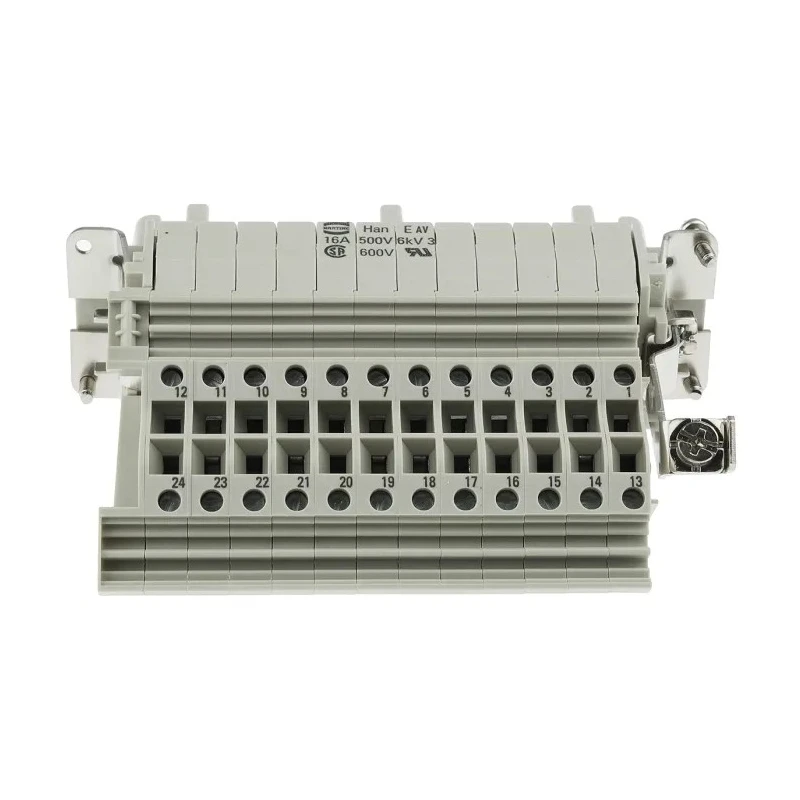

HARTING Heavy Duty Power Connector Insert 16A, Han B Series Female, 24 Contacts 09330244725
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han B |
| Thread Size | M3 x 10 |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 24+E |
| Contact Plating | Silver |
| Number of Contacts | 24 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Designed for heavy duty power connector applications with robust cable mount type.
- Supports 24+E pole format across 2 rows for efficient wiring.
- Silver plated copper alloy contacts provide excellent conductivity and corrosion resistance.
- Compatible with wire sizes from 0.2 mm² to 2.5 mm² with M3 x 10 screw terminals for secure connections.
- Mechanical life cycles up to 500 mating operations ensure long-lasting performance.
- Orientation is straight, optimizing assembly and installation procedures.
- Suitable for industrial, manufacturing, and electrical power distribution environments.
- Not to be mated or unmated under electrical load to ensure safety and reliability.
Product Description
HARTING 09330244725 Heavy Duty Power Connector Insert is engineered for demanding electrical applications requiring a 16A current rating and 500V voltage. This Han B Series female connector features 24 silver-plated copper alloy contacts arranged in a 24+E pole format over 2 rows, offering reliable and efficient wire termination solutions. It is designed as a cable mount type with an IP65 ingress protection rating, making it suitable for industrial and outdoor environments exposed to dust and water.
The connector accommodates wire sizes between 0.2 mm² and 2.5 mm² using M3 x 10 screw terminals, ensuring secure and customizable wiring connections. With a mechanical mating life of up to 500 cycles, it delivers durability and long-term usage in manufacturing, power distribution, and heavy duty equipment installations.
Its straight orientation simplifies installation while maintaining optimal performance. This product should always be handled with care and not connected or disconnected under electrical load to prevent damage. The HARTING 09330244725 insert is compatible with Han E ES AV and Han E AV ranges, allowing integration with a variety of housing and hood configurations.
This connector is ideal for use in industrial automation systems, electrical control panels, power supply units, and machinery connections where high reliability and safety standards are required.
Designed for heavy duty power connector applications with robust cable mount type. Supports 24+E pole format across 2 rows for efficient wiring. Rated voltage of 500V and IP65 protection ensuring durable outdoor and industrial use.
Silver plated copper alloy contacts provide excellent conductivity and corrosion resistance. Compatible with wire sizes from 0.2 mm² to 2.5 mm² with M3 x 10 screw terminals for secure connections. Mechanical life cycles up to 500 mating operations ensure long-lasting performance.
Orientation is straight, optimizing assembly and installation procedures. Suitable for industrial, manufacturing, and electrical power distribution environments. Not to be mated or unmated under electrical load to ensure safety and reliability.
Explore more from the Heavy Duty Power Connector Inserts & Modules category on EnvMart for complete system solutions and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector insert has a current rating of 16A.
It is rated for a voltage of 500V.
This connector insert has an IP65 ingress protection rating, making it suitable for outdoor and industrial environments.
It accommodates wire sizes ranging from 0.2 mm² to 2.5 mm² using M3 x 10 screw terminals.

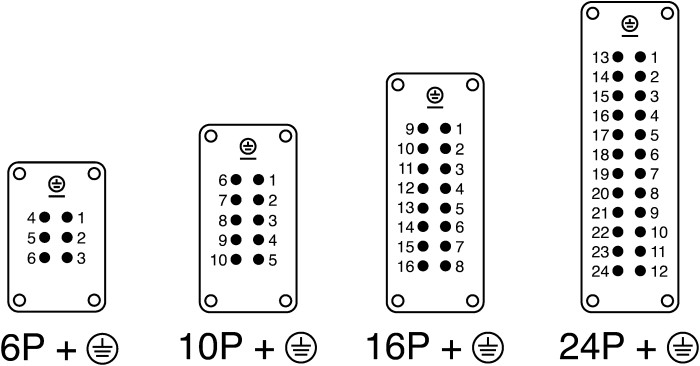

The connector insert features 24 contacts arranged in a 24+E pole format.
The orientation of this model is straight, which optimizes assembly and installation procedures.
The contacts are made from silver-plated copper alloy, providing excellent conductivity and corrosion resistance.
It has a mechanical life cycle of up to 500 mating operations.
This model is designed as a cable mount type.
It belongs to the Han B Series.
Yes, it is suitable for industrial, manufacturing, and electrical power distribution environments.
It should not be mated or unmated under electrical load to ensure safety and reliability.
