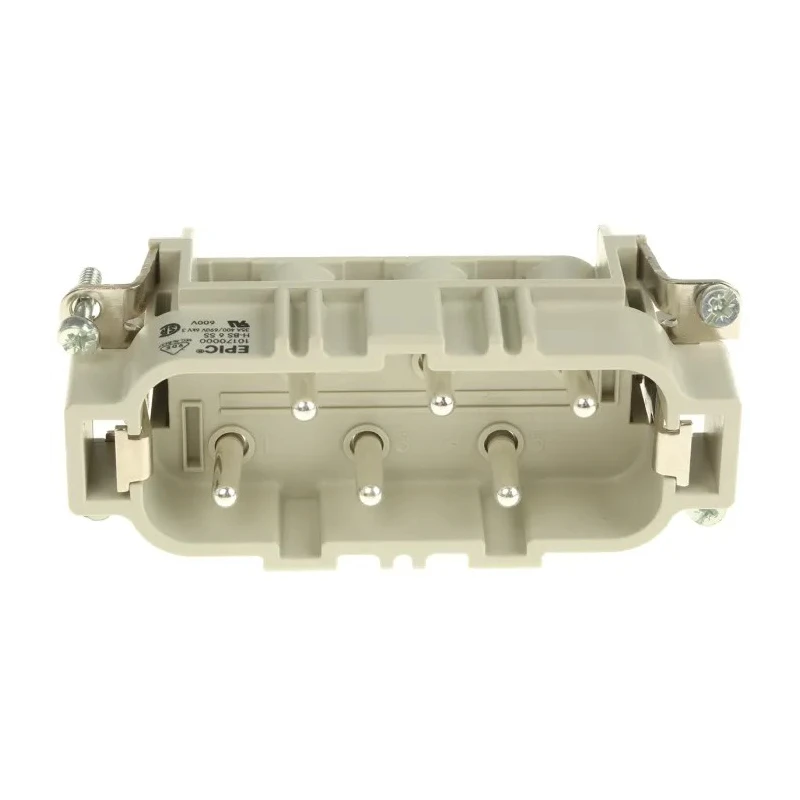

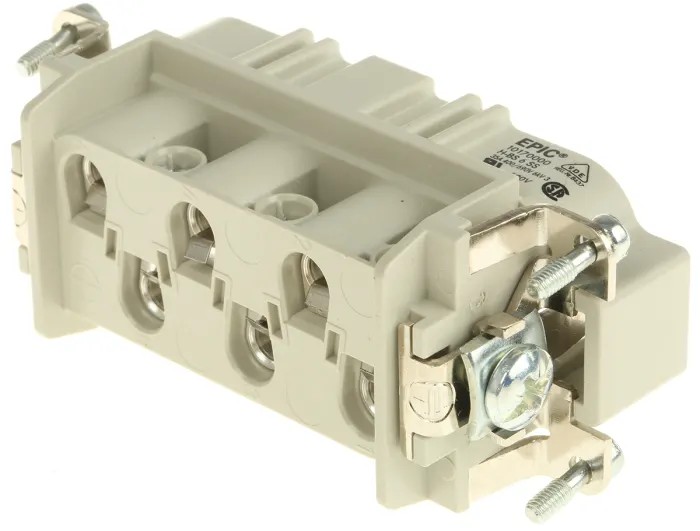

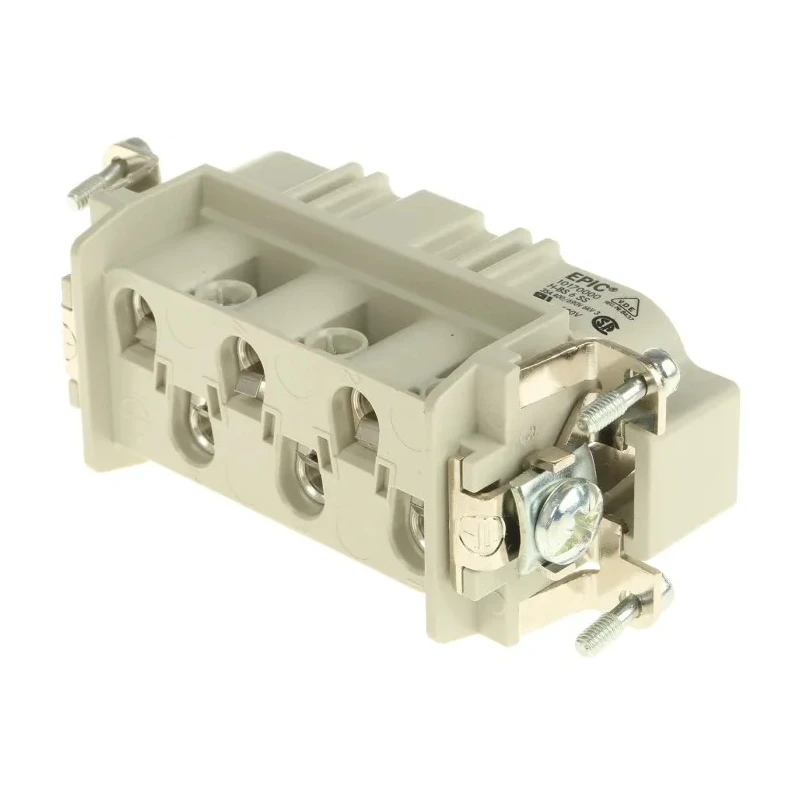

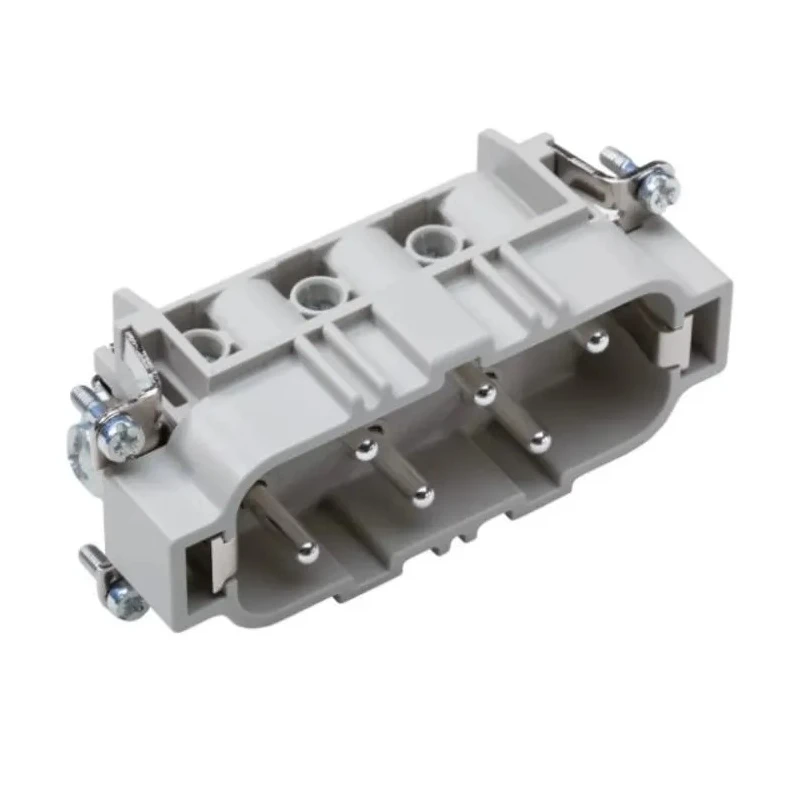

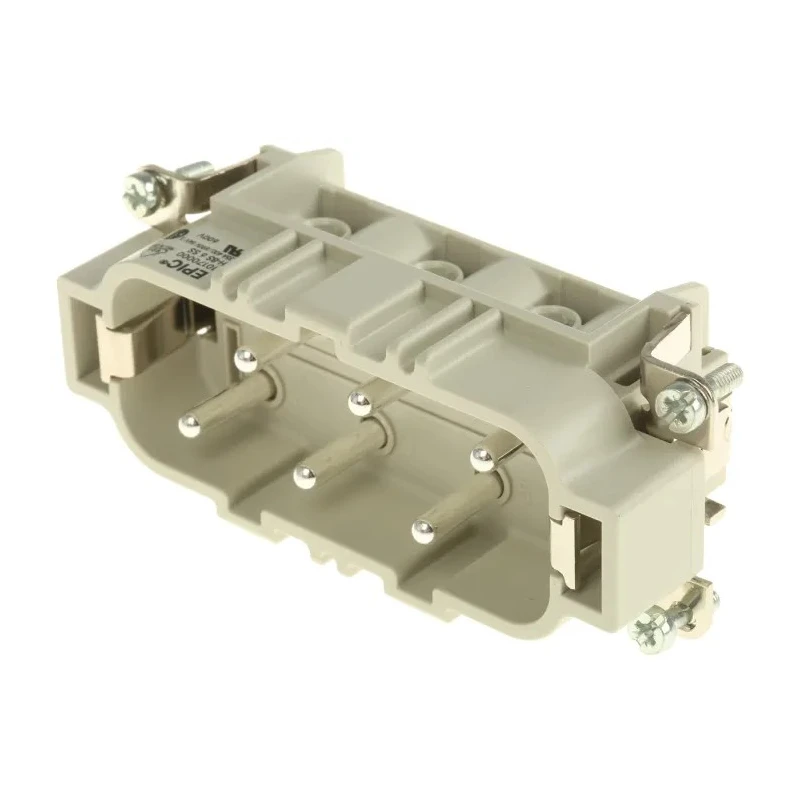

EPIC Heavy Duty Power Connector Insert, 35A Current Rating, H-BS Series Male, 6 Contacts 10170000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 600V |
| Brand | EPIC |
| Orientation | Straight |
| Model | 10170000 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 35A |
| Series | H-BS |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 6 |
| Contact Plating | Silver |
| Number of Contacts | 6 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 6mm² |
Key Features
- Rated for 35 amps current, suitable for robust power applications.
- H-BS series male connector insert with 6 contacts ensures reliable connections.
- Copper alloy contacts with silver plating enhance conductivity and durability.
- Supports wire sizes from 0.5mm² up to 6mm² through screw termination.
- Operating voltage up to 600 volts for heavy-duty industrial use.
- Uses thermoplastic resin body providing electrical insulation and safety.
- Impulse voltage rating of 6kV protects against electrical surges.
- Temperature range from -40°C to +100°C ensures functionality in harsh environments.
Product Description
EPIC 10170000 Heavy Duty Power Connector Insert is a robust cable mount male connector designed to handle a current rating of 35A with a voltage rating of 600V. This insert belongs to the H-BS series and contains 6 contacts arranged in 2 rows, making it ideal for demanding industrial automation and control applications. It utilizes silver-plated copper alloy contacts to ensure high conductivity and long-lasting performance.
The body is made of insulating thermoplastic resin which provides safe touch protection against electric shock. This connector supports wire sizes ranging from 0.5mm² to 6mm², secured via simple screw termination, simplifying installation and maintenance. It operates reliably within temperatures from -40°C to +100°C, suitable for harsh factory, railway, and vehicle construction environments.
With an impulse voltage rating of 6kV, the 10170000 connector insert safeguards against voltage surges. It is compatible with LAPP's HB-S housings and levers to create customized connector solutions for power and data signals. Typical industrial applications include drive systems, plant engineering, control cabinets, and vehicle construction, where durability and safety are paramount.
The insert is certified as a new product made in Germany, ensuring high manufacturing quality standards. The design facilitates integration into heavy-duty power connector assemblies complying with rigorous industrial requirements.
Robust 35A current rating for heavy-duty applications. Silver-plated copper alloy contacts for superior conductivity. Thermoplastic body offers safe touch protection. Wire size compatibility from 0.5 to 6mm² with screw termination.
Impulse voltage rating of 6kV protects electrical systems. Operating temperature range from -40°C to +100°C for harsh environments. Compatible with H-BS series housings and components. Designed for industrial drive systems, plant controls, and vehicle construction.
Manufactured to high standards in Germany. Explore more EPIC power connector products and accessories in the Electronics & Electricals category on EnvMart for your industrial connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EPIC Heavy Duty Power Connector Insert has a current rating of 35A, making it suitable for robust power applications.
This connector insert is rated for a maximum operating voltage of 600V, suitable for heavy-duty industrial use.
It supports wire sizes ranging from 0.5mm² to 6mm², which are secured via screw termination.
The contacts are made of copper alloy and are silver-plated to enhance conductivity and durability.
This model operates reliably within a temperature range of -40°C to +100°C, suitable for harsh environments.
The connector insert features 6 contacts arranged in 2 rows.
It is designed for demanding industrial applications such as drive systems, plant engineering, control cabinets, and vehicle construction.
Yes, it is compatible with LAPP's HB-S housings and levers, allowing for customized connector solutions.
The impulse voltage rating for this connector insert is 6kV, which protects against electrical surges.
The connector insert has a straight orientation, designed for cable mounting.
This product is manufactured in Germany, ensuring high manufacturing quality standards.
This model is classified as a male connector insert, specifically part of the H-BS series.
