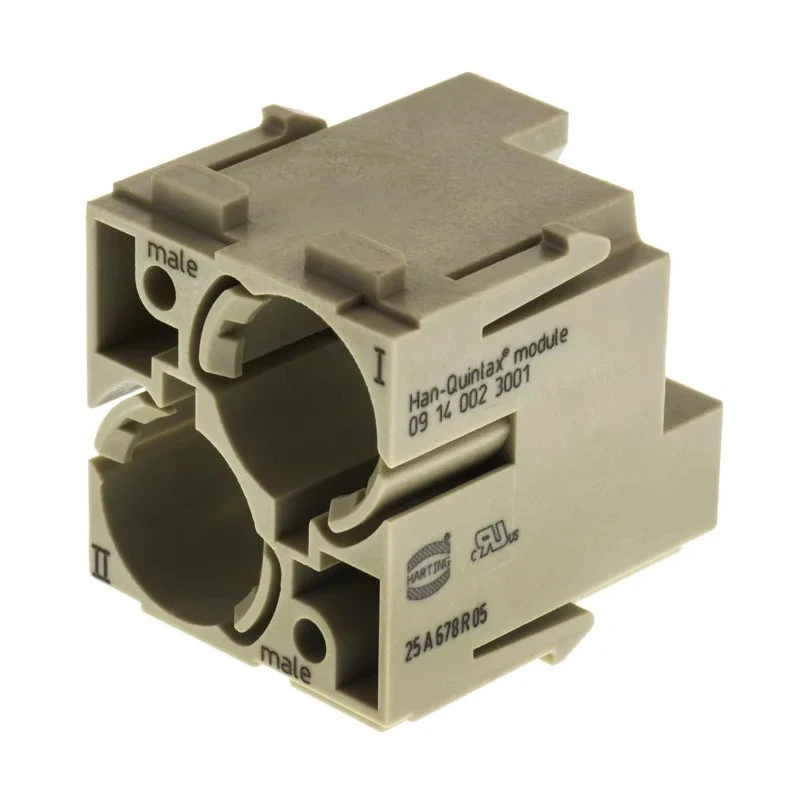

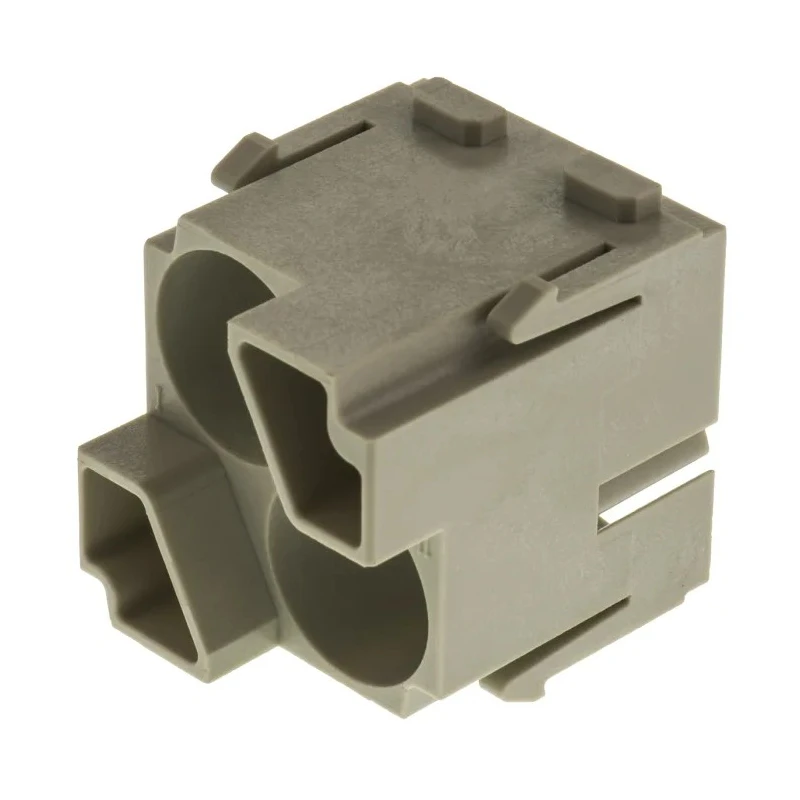

HARTING Heavy Duty Power Connector Module 10A HAN Modular Series Male 2 Contacts 09140023001

HARTING 09140023001 Heavy Duty Power Connector Module is engineered to provide a current rating of 10A with a 50V voltage rating. This male connector module belongs to the HAN Modular series and features 2 contacts arranged in a single row. The connector is suitable for installation with cable mount type configurations and is designed using robust polycarbonate contact material ensuring mechanical and electrical reliability.

This connector utilizes the Han Quintax® modular system allowing integration of cylindrical inserts accommodating up to 4 crimp contacts per insert, creating flexibility in configuring connector assemblies. Two Quintax® modules can fit into a 4-module frame that is compatible with HARTING Series '10A' housing types, facilitating a modular and customizable approach to power connection solutions.

Its design supports screened cables with outer diameters ranging from 3-6 mm up to 9.5 mm, making it ideal for transmitting very sensitive signals including BUS signals with excellent shielding. The connector supports over 500 mating cycles, underlining durability for industrial and electronic applications.

HARTING offers corresponding crimp tooling options to ensure secure and reliable contact mounting with professional assembly tools suitable for different levels of automation. Note that these connectors should not be mated or unmated under electrical load and polarity configurations are recommended to prevent incorrect connections.

Suitable for heavy duty power connector systems requiring 10A current. Two contact, single row male connector module. Polycarbonate contact material enhances longevity and electrical isolation. Supports Han Modular series integration and flexible insert configurations.

High mating cycle rating ensures extended operational life in demanding environments. Manufactured in Germany adhering to high quality standards.

This product is applicable for industrial, electronic components, power distribution, and manufacturing sectors where reliable heavy duty power connections are essential. Explore EnvMart categories for related power connectors and modules designed to meet rigorous industrial application needs.
