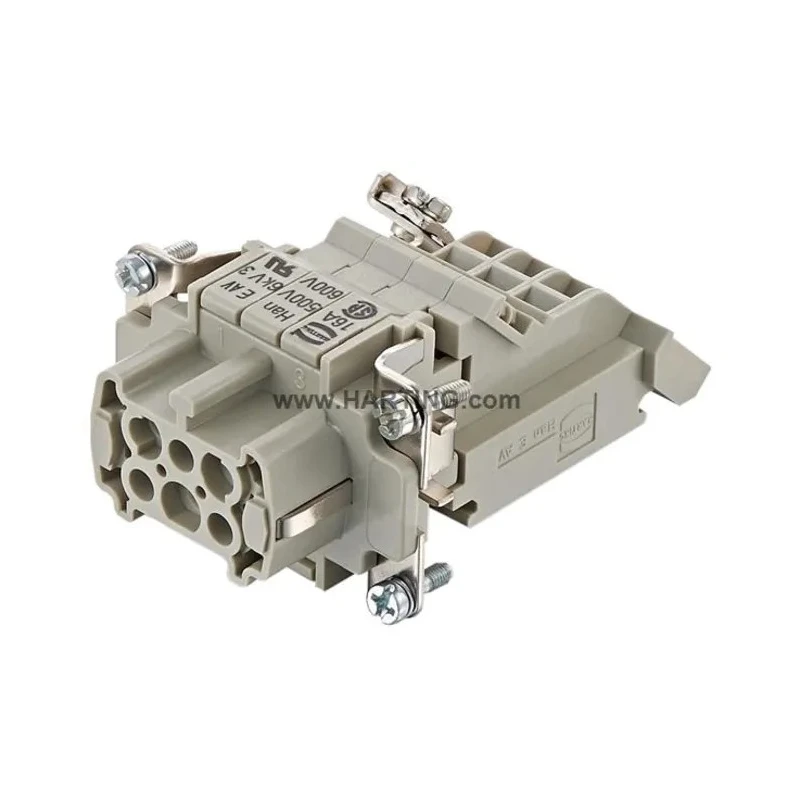

HARTING Heavy Duty Power Connector Insert, Han B Series Female, 6 Contacts, 16A, 500V 09330064725

HARTING 09330064725 Heavy Duty Power Connector Insert is engineered for industrial and electronic power connector applications requiring reliable high-current and voltage performance. This connector insert is part of the Han B series with a female configuration featuring 6 contacts capable of handling 16A current at 500V voltage.

The body utilizes copper alloy contacts with silver plating to maintain excellent electrical conductivity and resistance against corrosion. The IP65 rating ensures this connector is protected from dust and water, suitable for harsh industrial environments including manufacturing, construction, and automation systems.

It offers a pole format of 6+E (6 signal contacts plus earth) distributed across 2 rows and is designed with a straight orientation for cable mounting. The terminal screws allow secure wire connections using wire sizes ranging from 0.2 mm² to 2.5 mm². Thread size for mounting is M3 x 10.

This connector insert is compatible with Han E AV terminal block housing ranges 5 through 8, enabling customers to create flexible and customizable power connection solutions. The design life is rated for 500 mechanical mating cycles, assuring durability and extended service life.

The connector insert features a Han B series female design with 6 contacts for reliable electrical connections. Rated for a 16 amp current and 500 volts to support demanding industrial power needs. Constructed with copper alloy contacts plated in silver for optimal conductivity and durability.

Provides an IP65 rating ensuring protection against dust and water ingress in harsh environments. Compatible with heavy duty power connectors with a pole format of 6+E and straight orientation. Accepts wire sizes from 0.2 mm² up to 2.5 mm² with screw terminal mounting type.

Designed to mate with housings within Han E AV range for customizable connection solutions. Mechanical mating life rated for 500 cycles ensuring long-term reliability.

This HARTING Heavy Duty Power Connector Insert is essential in sectors such as industrial automation, machinery manufacturing, and electrical distribution systems requiring durable, high-performance connectors. It supports modular configurations and robust power handling capabilities.
