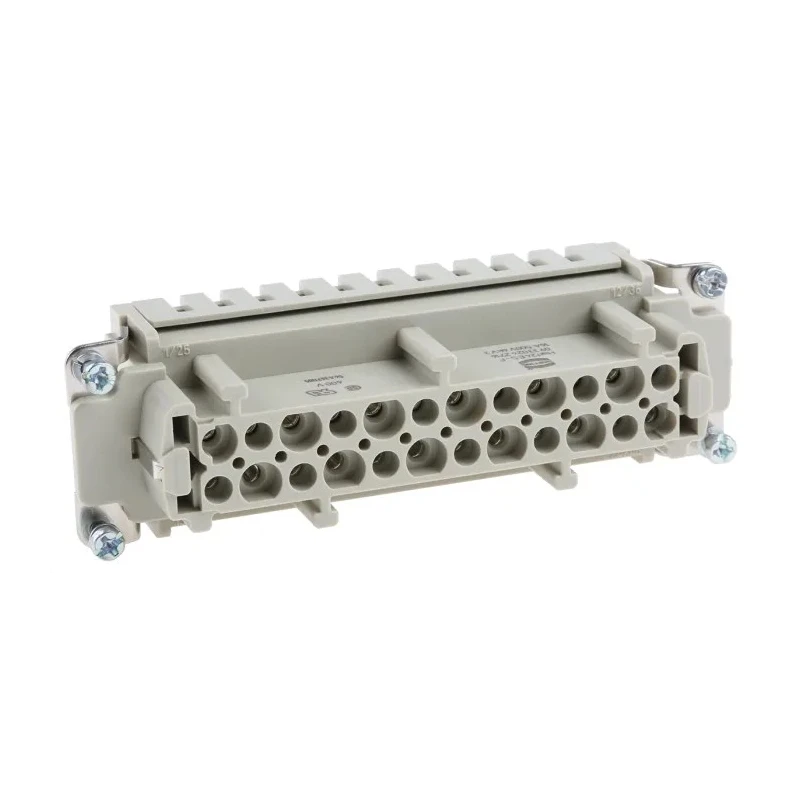

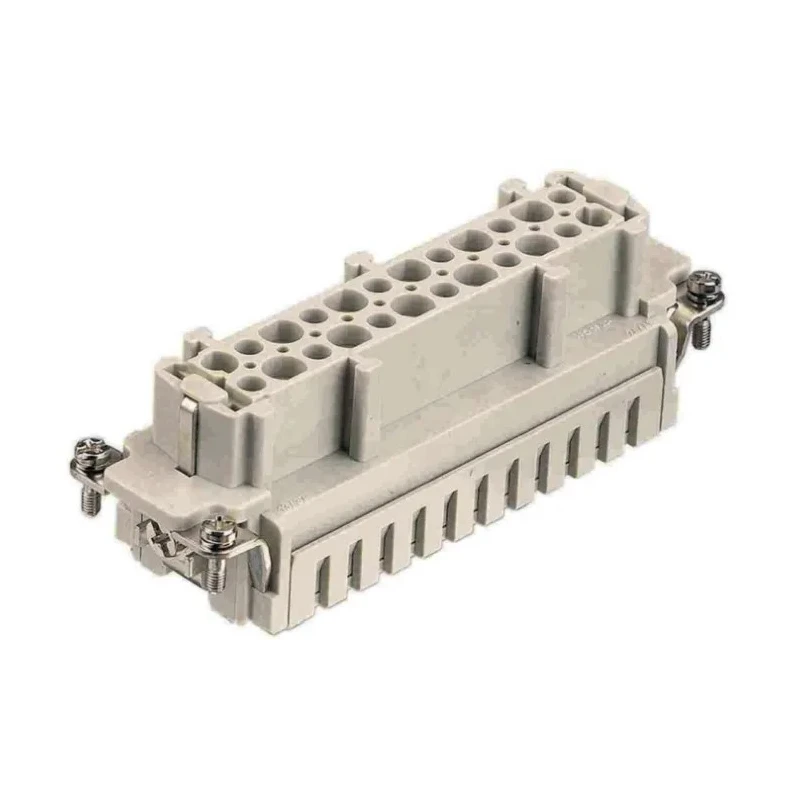

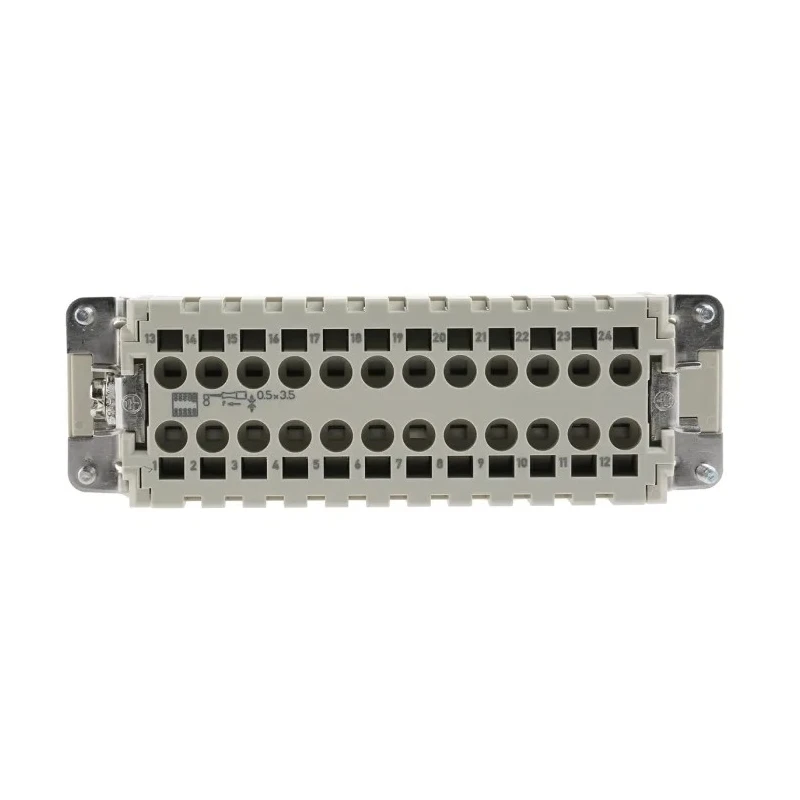

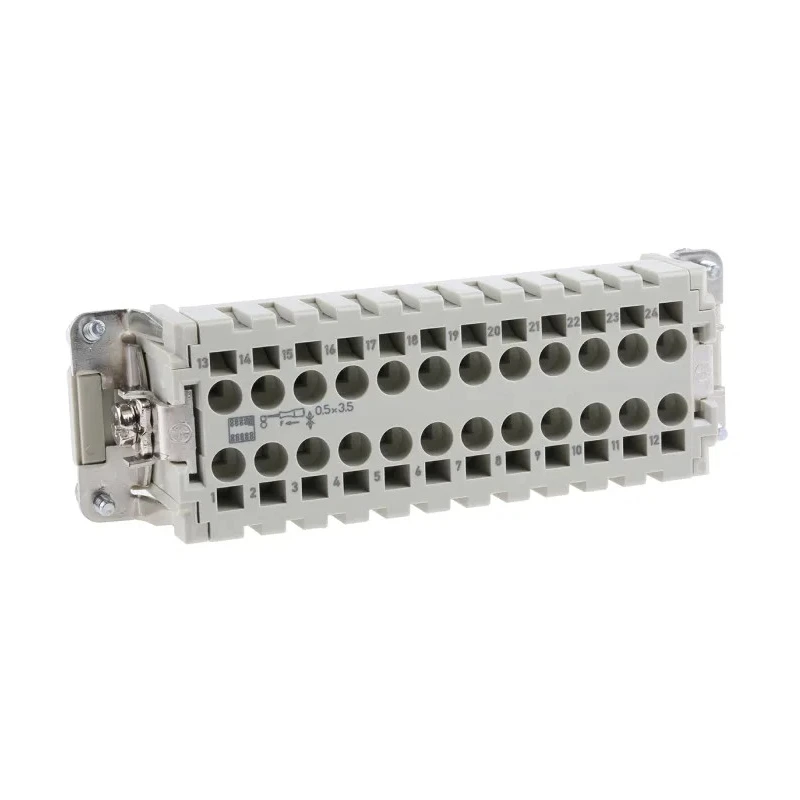

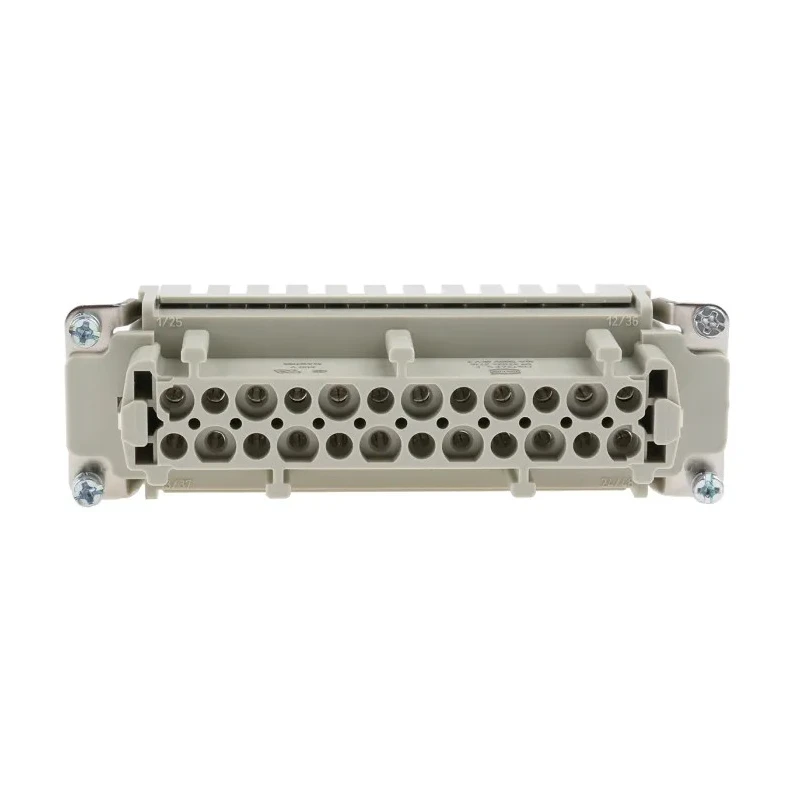

HARTING Heavy Duty Power Connector Insert 16A 500V Han ES Series Female 24 Contacts 09330242716
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han ES |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Standards/Approvals | IEC 60664-1 |
| Pole Format | 24 |
| Contact Plating | Silver |
| Number of Contacts | 24 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Designed for cable mounting with a straight orientation.
- 24 silver-plated copper alloy contacts ensure optimal conductivity and durability.
- Supports conductors ranging from 0.14 mm² to 2.5 mm² for versatile wiring.
- Complies with IEC 60664-1 insulation standards for electrical safety.
- Ideal for industrial automation, control cabinets, and motor control systems.
- Enables dense power routing in confined spaces with two rows of contacts.
- Suitable for medium-voltage power distribution applications up to 500V.
- Constructed in Germany for quality assurance.
Product Description
HARTING 09330242716 Heavy Duty Power Connector Insert is a high-quality industrial-grade female insert designed for reliable power interconnections in demanding environments. Rated for 16A current and 500V voltage, this Han ES Series product offers 24 silver-plated copper alloy contacts arranged in two rows to maximize contact density and ensure excellent electrical performance.
The insert supports cable mounting and straight orientation, simplifying installation in robust power distribution systems within automation, conveyor, and industrial machinery applications. Conductors from 0.14 mm² up to 2.5 mm² are compatible, providing wiring flexibility for diverse cable sizes including single-core and flexible wires.
Manufactured in Germany and compliant with IEC 60664-1 standards, this power connector insert ensures strong insulation coordination suitable for medium-voltage industrial equipment. The silver plating on copper alloy contacts reduces resistance and enhances durability, supporting repeated mating cycles in factory and mobile equipment power setups.
Applications include industrial control-cabinet power feeds, machine tool and conveyor power connections, motor control, and drive-system cabling. This heavy duty insert excels in factory automation scenarios requiring compact multi-pole power distribution with reliable detachable interfaces.
24 contacts allow for dense and efficient power routing in constrained spaces. Durable copper alloy contact material with silver plating for electrical and mechanical reliability. Rated for 16 ampere current and 500 volts suitable for medium power industrial use.
Compatible with conductors sized from 0.14 to 2.5 mm squared. Cable mount type eases field installation and maintenance.
This product is part of the EnvMart catalog for Electronics Components and Power Connectors. Browse more HARTING power connectors and accessories for industrial-grade connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector insert is rated for a voltage of 500V.
It has a current rating of 16A.
This model features 24 contacts arranged in two rows.
It supports conductors ranging from 0.14 mm² to 2.5 mm².
This unit is designed for cable mounting.
It complies with IEC 60664-1 insulation standards for electrical safety.
It is manufactured in Germany.
The contacts are made of silver-plated copper alloy for optimal conductivity.
It is ideal for industrial automation, control cabinets, and motor control systems.
This model features a straight orientation for installation.
The arrangement of 24 contacts in two rows allows for dense power routing in confined spaces.
This product is classified as a connector insert within the Han ES series.
