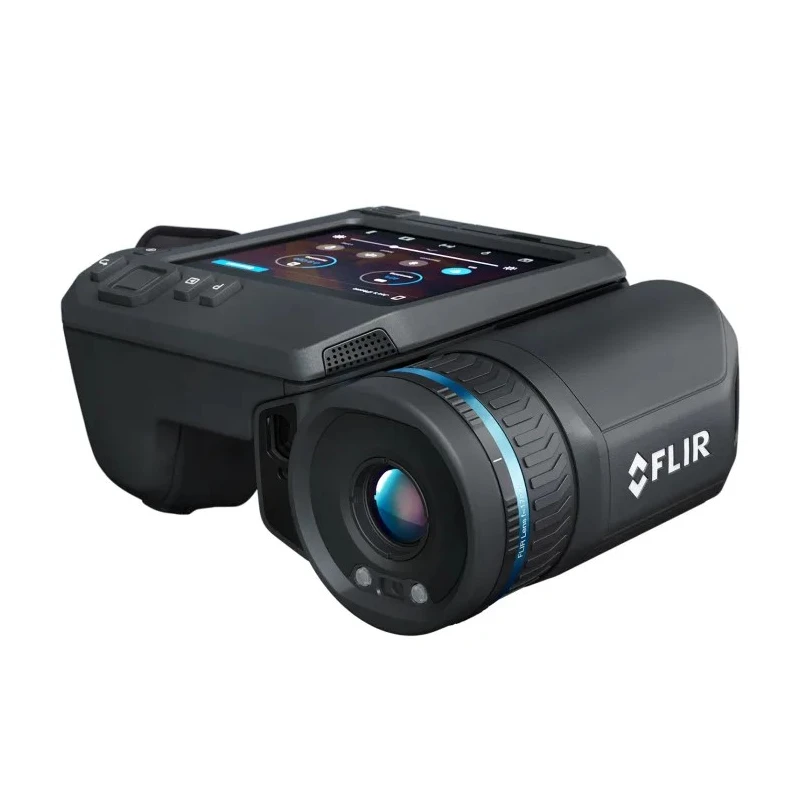

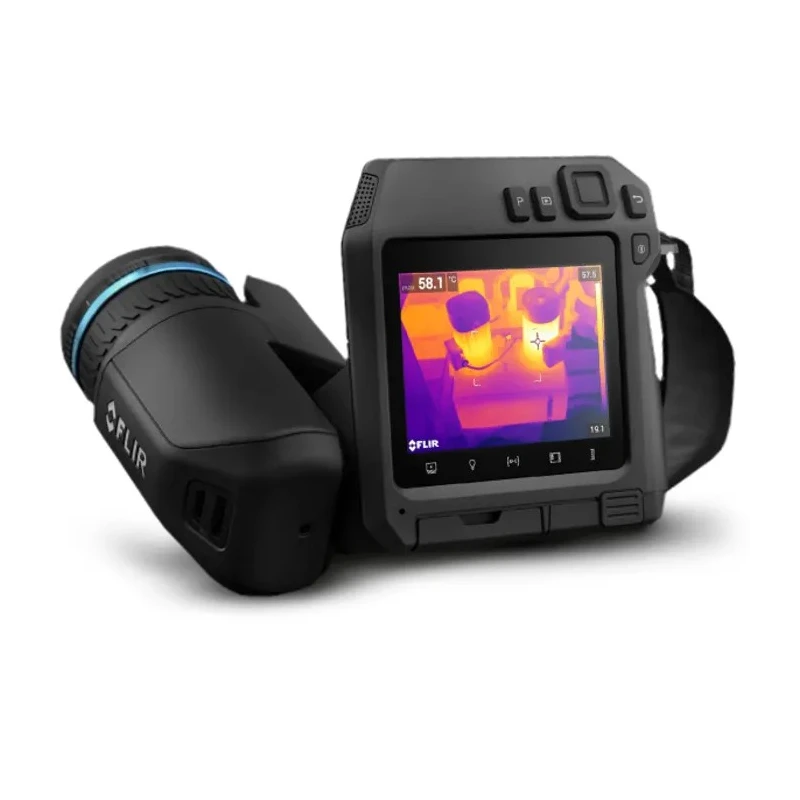

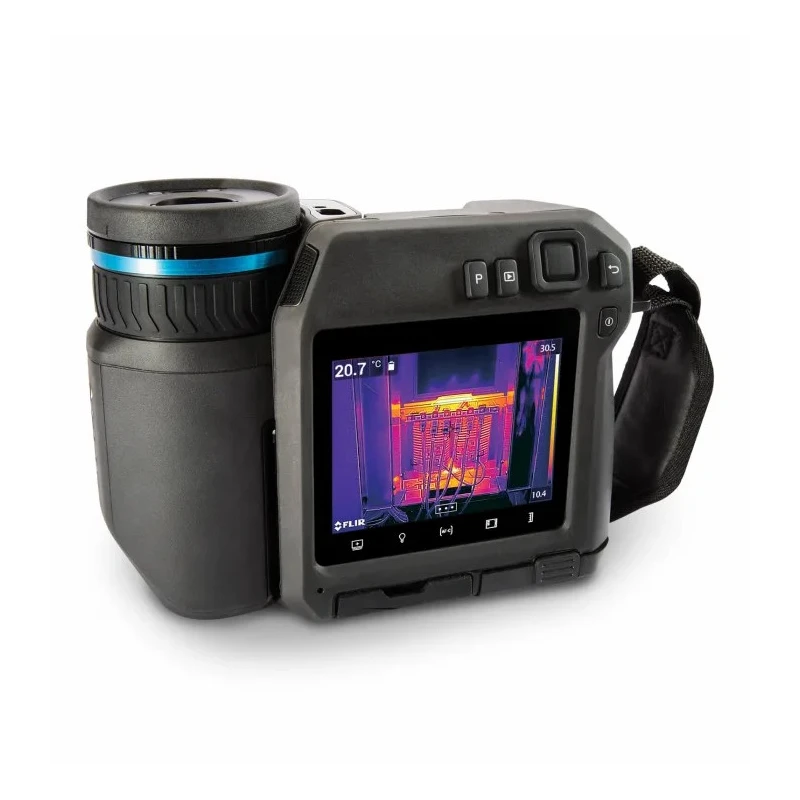

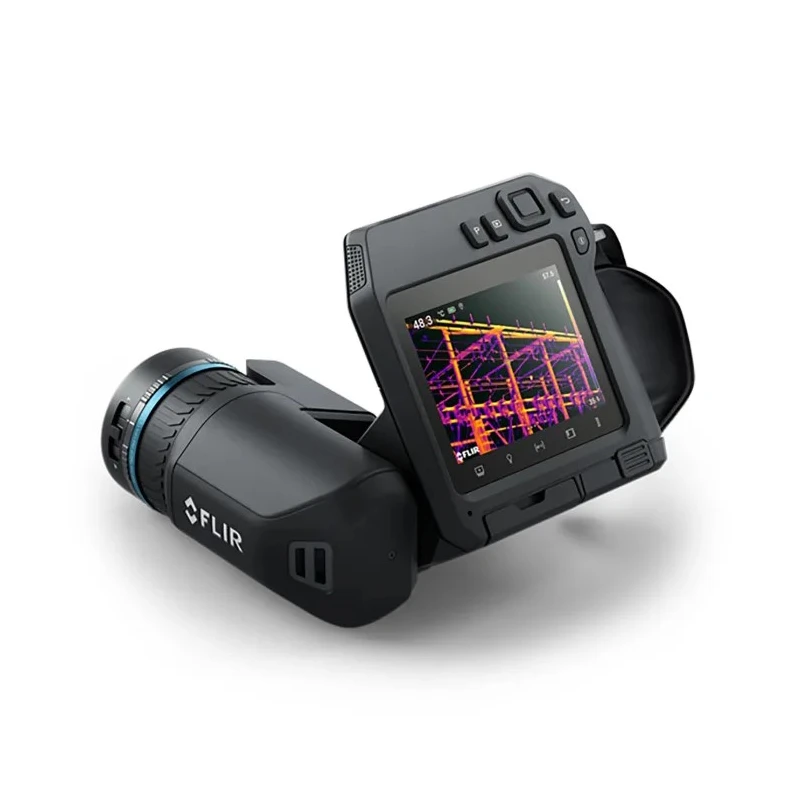

FLIR Thermal Imaging Camera 1500°C, 640 x 480 Pixel Detector Resolution, USB Type C Interface, 4 Inch Display FLIR T560 24°

Free Delivery in India | Lowest Global Shipping Charges

FLIR Thermal Imaging Camera 1500°C, 640 x 480 Pixel Detector Resolution, USB Type C Interface, 4 Inch Display FLIR T560 24°

Name: FLIR Thermal Imaging Camera 1500°C, 640 x 480 Pixel Detector Resolution, USB Type C Interface, 4 Inch Display FLIR T560 24°
Brand: Flir
SKU: 165937
Price: 20.22 USD
Availability: InStock



Category Thermal Imaging Camera Brand Flir Condition New

Specifications

Country of Origin	Estonia
Accuracy	±2.0 °C
Brand	FLIR
Battery Life	4h
Battery type	Charged in camera or on separate Lithium-ion battery
Length	140mm
Model	FLIR T560 24°
Depth	84mm
Emissivity	0.01 to 1
Gross Weight	1.4kg
Width	201mm
Detector Resolution	640 x 480 pixel
Series	T560
Thermal sensitivity	30mK
Minimum focus distance	150mm
Display Resolution	640 x 480 pixel
Refresh Rate	30Hz
Image Storage	SD card
Interface Type	USB Type C
Focus Type	Continuous
Standards/Approvals	EN/ UL/CSA/PSE 609501, IEC 60068227, 2 g / IEC 6006826 /
Maximum Temperature Measurement	1500°C
Diagonal Display Size	4in
Horizontal Angle of View	53°
Vertical Angle of View	41°
Spatial Resolution IFOV	0.7mrad
IR/Visual Image Combination	Picture-in-Picture

Key Features

Equipped with a 640 x 480 pixel thermal detector for detailed imaging.
Measures maximum temperatures up to 1500°C accurately.
Features a 4-inch diagonal display and 30Hz refresh rate for smooth visualization.
Powered by a rechargeable lithium-ion battery with approximately 4 hours battery life.
Includes continuous focus, 180° rotating lens platform, and laser-assisted autofocus.
Provides precise temperature readings with ±2.0 °C accuracy and 30mK thermal sensitivity.
Supports SD card image storage and USB Type C connectivity.
Lightweight design at 1.4 kg with dimensions 140mm x 201mm x 84mm.

Product Description

FLIR FLIR T560 24° Thermal Imaging Camera is designed for professional technicians needing reliable high-resolution thermal imaging and precise temperature measurement up to 1500°C. Featuring a 640 x 480 pixel detector and a bright 4-inch diagonal display with a refresh rate of 30Hz, this camera offers clear and crisp images essential for troubleshooting electrical, mechanical, and manufacturing equipment.

The camera's 180° rotating lens platform enhances accessibility to hard-to-reach areas while continuous focus and laser-assisted autofocus provide accurate thermal diagnostics. The thermal sensitivity of 30mK and ±2.0 °C measurement accuracy ensure dependable readings during inspections.

Powered by a lithium-ion battery, the device delivers up to 4 hours of operation and supports charging either within the camera or externally. Images are conveniently stored on an SD card, and data transfer is enabled via a USB Type C interface.

This model includes a visual camera component and supports picture-in-picture IR/Visual image combination to aid in pinpointing faults effectively. Its ergonomic design weighs 1.4 kg with compact dimensions (140mm length × 201mm width × 84mm depth), making it portable for extended use.

Compliant with EN/UL/CSA/PSE 609501 and IEC standards, the FLIR T560 24° is suitable for industrial, laboratory, HVAC, and manufacturing environments. Key applications include detecting hot spots in power generation, diagnosing electrical transmission faults, and monitoring mechanical equipment condition.

High-resolution 640 x 480 pixel thermal detector for precise imaging. Maximum measurable temperature of 1500°C suited for demanding industrial applications. Rechargeable lithium-ion battery with 4-hour operational life and battery level indicator.

Continuous focus and laser-assisted autofocus optimize image clarity. Compact and ergonomic design for ease of handling during complex inspections. Records images on an SD card and supports USB Type C for fast connectivity.

Picture-in-picture IR and visual image combination for comprehensive diagnostics. Standards compliance ensures safety and reliability in hazardous environments. Ideal for power generation, electrical transmission, and manufacturing equipment maintenance.

Explore more products in Thermal Imaging Cameras at EnvMart for advanced industrial measurement solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The FLIR T560 24° can measure maximum temperatures up to 1500°C, making it suitable for demanding industrial applications.

It features a 640 x 480 pixel thermal detector, providing high-resolution thermal imaging for detailed diagnostics.

This model supports a USB Type C interface for fast data transfer and connectivity.

The thermal sensitivity of this camera is 30mK, allowing for precise temperature readings during inspections.

It has dimensions of 140mm in length, 201mm in width, and 84mm in depth, with a gross weight of 1.4 kg.

Yes, it supports image storage on an SD card, allowing for convenient data management.

The display has a refresh rate of 30Hz, providing smooth visualization of thermal images.

This camera features continuous focus and laser-assisted autofocus for enhanced image clarity during use.

It is compliant with EN/UL/CSA/PSE 609501 and IEC standards, ensuring safety and reliability in various environments.

This model is suitable for detecting hot spots in power generation, diagnosing electrical transmission faults, and monitoring mechanical equipment condition.
