Infrared Thermal Imaging Camera Professional IR 640X480
Specifications
| Temperature Accuracy | 2oc or 2% of reading |
|---|---|
| Display | 5| 270o tiltable color LCD| 800 x 480 pixels |
| Frequency | 50 Hz/60 Hz |
| Power | Yes |
| Bluetooth | Yes |
| Focus | Manual/Motor/Auto |
| Storage Temperature | -20o - +70o |
| Spectral range | 8~14 m |
| Battery type | Rechargeable li-ion battary |
| Alarm | Voice| color |
| Humidity | 95% (Non-condense) |
| Temperature range | -20oc ... +350oc| -20oc ... +700oc| -20oc...+1100oc| -20oc ... + 1200oc |
| Languages | 10 Languages (English| French| Italian| German| Spanish| Portuguese| Russian| Korean| Japanese| Simplified Chinese & Traditional Chinese) |
| Weight | 1.3Kg (with battery and standard lens) |
| Detector Type | Uncooled FPA |
| Area | 3 adjustable boxes with max./min./avg. temperature value |
| USB | Radiometric images transfer to and from PC |
| Vibration | 2G| IEC60068-2-6 |
| Shock | 25G| IEC60068-2-29 |
| Pixel pitch | 25 m |
| Digital zoom | 1~8 X continuous |
| Measurement spots | 4 adjustable spots |
| Line profile | Vertical/Horizontal |
| Isotherms analysis | Capture high/low temperature/interval |
| Emissivity correction | adjustable from 0.01 to 1.0 or selected from list of Materials |
| Voice annotation | 60s voice record| stored with per image via built-in microphone. It is stored with thermogramms |
| Charging system | In camera| AC adapter| car charger |
| Video output | CVBS |
| Audio output | yes |
| Standard | Thermal imaging camera with standard IR lens| 2 Li-ion batteries| Battery charger| Adapter| USB cable| SD card| SD card reader| BALTECH Expert Software CD| warranty card| transport case |
| Operation temperature | -20oc - +50oc |
| Storage type | Built-in flash card| up to 700 radiometric JPEG images|8G SD card| up to Greater Than 5600 radiometric JPEG images |
| IR resolution | 640 x 480 |
| Power saving | Auto shutdown (user defined) |
| AC supply | 110~240V AC| 50/60Hz| 9~12V DC output |
| FOV/Min focus distance | 24o x 18o / 0.6m (standard)| 48o x 36o / 0.3m (optional)| 6ox4.5o/ 1|2m (optional) |
| IFOV | 0.65 mrad (24o x 18o) |
| NETD/Sensitivity | Less Than 60 mk@30oc |
| Visual camera | 5.0 mega pixel |
| Spotlight | 10 cd/m2 |
| Image mode | Thermal image| visual image| P-I-P| thermal fusion| W-I-W |
| Viewfinder | 0.6 color OLED| with magnification |
| Measurement correction | Auto/Manual |
| Delta T | Yes |
| Dew point alarm | Yes |
| Color Pallets | 12 pallets (Including iron| rainbow| White hot and black hot etc.) |
| Image adjustment | Adjust contrast and brightness auto/manual |
| Setting function | Date/time| temperature unit oc/oF| language |
| Background temperature correction | Auto |
| Atmospheric transmissivity correction | Auto |
| Periodic image storage | User defined| 10s at least |
| Grade/Type | Class 2| 1mW/635nm Red |
| Battery operating time | 3 hours |
| Encapsulation | IP54 (IEC60529) |
| Size L X W X H | 200 x 117 x 127mm |
| Tripod | 1/420 |
Key Features
- High quality thermal images 640?480 pixels,
- Wide temperature range (-20oC...+350oC, +700oC, +1100oC, +1200oC),
- High-precision temperature measurement,
- Folding rotatable color display,
- Auto focus,
- Built-in digital camera,
- Built-in laser pointer,
Product Description

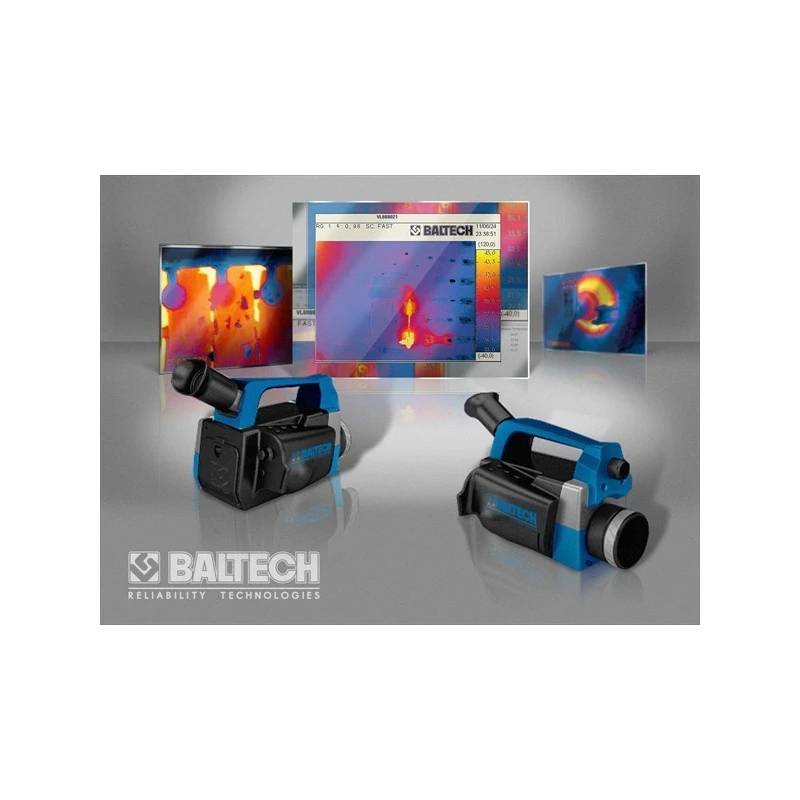

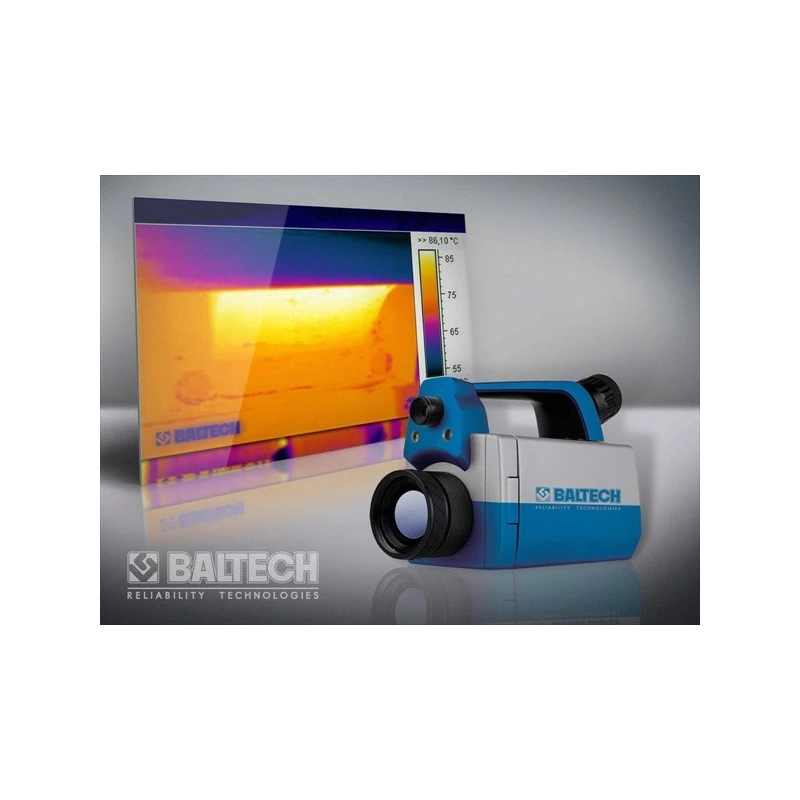

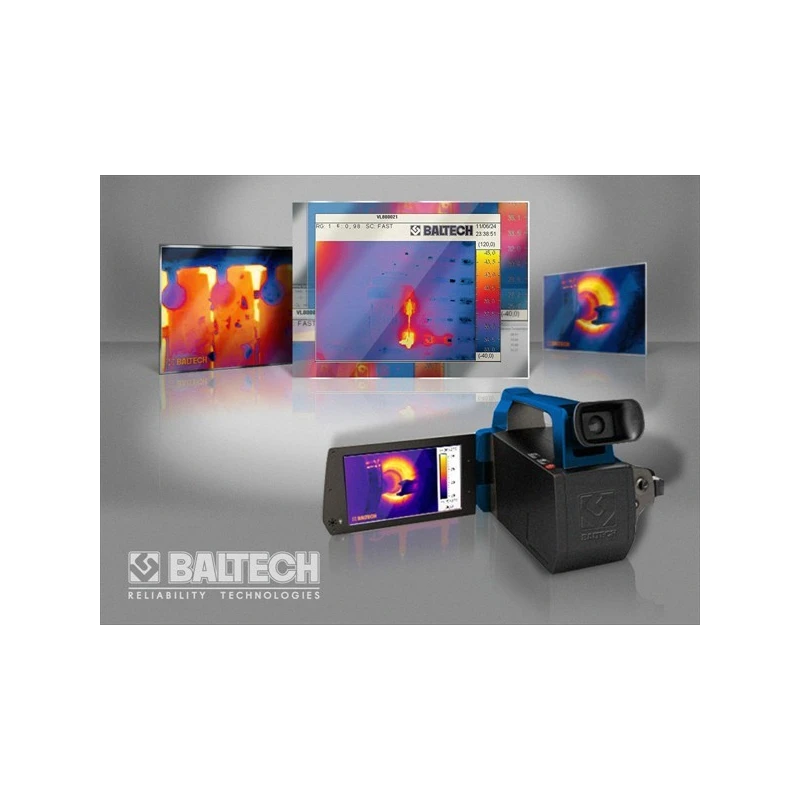

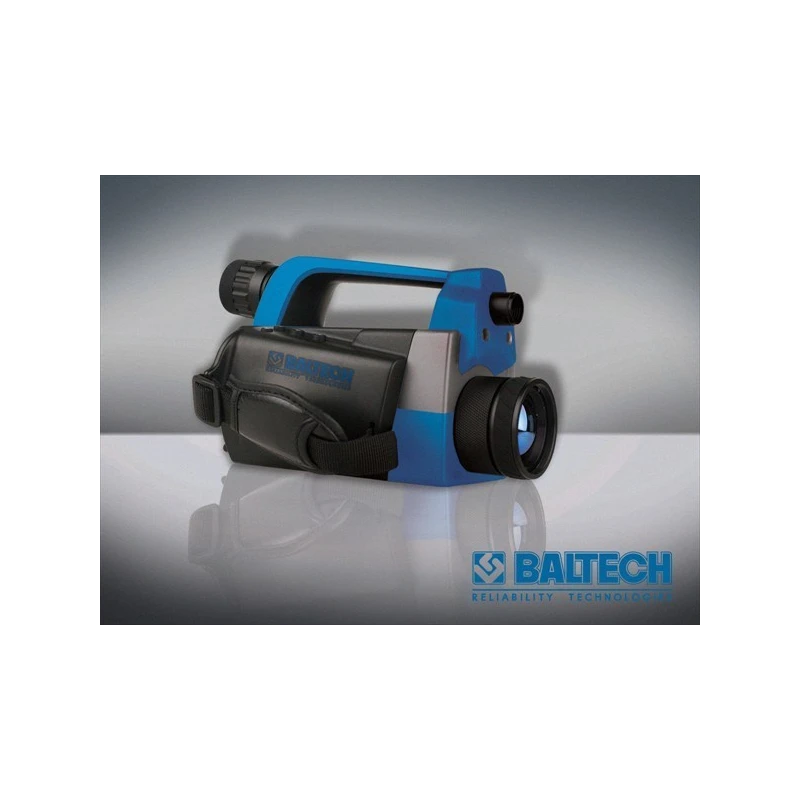

Infrared Thermal Imaging Camera Professional- Infrared Camera BALTECH TR-0180 (640X480)You can purchase the new innovative thermal imaging complex on the basis of the inexpensive infrared camera BALTECH TR-0180 and the BALTECH Expert software for the thermal image analysis at a special price. The inexpensive infrared camera BALTECH TR-0180 is a leader among all the infrared cameras ThermaRed Series.The uncooled microbolometer 640?480 pixels provides best quality of the thermal images, and the built-in 5.0-megapixel digital camera ensures crisp pictures of the monitored object. The unique function Picture in Picture (PIP) generates the infrared and visual images of the monitored object on a single picture.
- Built-in LED lamp
- Voice annotation (up to 60 sec to every thermal image),
- Picture-in-Picture and Fusion,
- Changeable IR lenses,
- Big memory (up to 5600 thermal images),
- BALTECH Expert software
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The camera can measure temperatures in the range of -20°C to +350°C, -20°C to +700°C, -20°C to +1100°C, and -20°C to +1200°C.
It provides infrared images with a resolution of 640 x 480 pixels.
This model features manual, motorized, and automatic focus options.
The temperature accuracy is ±2°C or ±2% of the reading.
It has a 5-inch tiltable color LCD display with a resolution of 800 x 480 pixels.
The camera weighs 1.3 kg including the battery and standard lens.
It features built-in flash storage capable of holding up to 700 radiometric JPEG images and supports an 8G SD card for up to 5600 images.
Yes, this model includes Bluetooth functionality.
It has an IP54 rating according to IEC60529 standards.
It includes features such as Picture in Picture (PIP), voice annotation, and isotherm analysis for temperature intervals.
The dimensions are 200 x 117 x 127 mm.
