Dial Gauge Shaft Alignment Advance Range 0-13mm
Specifications
| Measurement Range | 0-13 mm |
|---|---|
| Display | Color LCD 320x240| 3|5 |
| Sensor Type | Digital indicator |
| Rod Length | 290 mm |
| Measurement Accuracy | 0|01 mm |
| Safety class | IP-54 |
| Operation temperature | -15oC +45oC |
| Maximum diameter of mating shafts (couplings) - with chains | 600 |
| with magnets (options) | Not limited |
| Measurement unit | Pocket PC |
| Data transfer to PC | USB |
| S Dimensions of the electronic unit | 200x140x35 mm |
| Number of measurement channels | 2 |
Key Features
- Horizontal shaft alignment 9-0-3
- Vertical shaft alignment 9-0-3
- Check and elimination of soft foot
- Compensation of thermal growth
- Compensation of shaft floating on oil wedge
- Compensation of the rod deflection
- Alignment of machines with intermediate shafts
Product Description

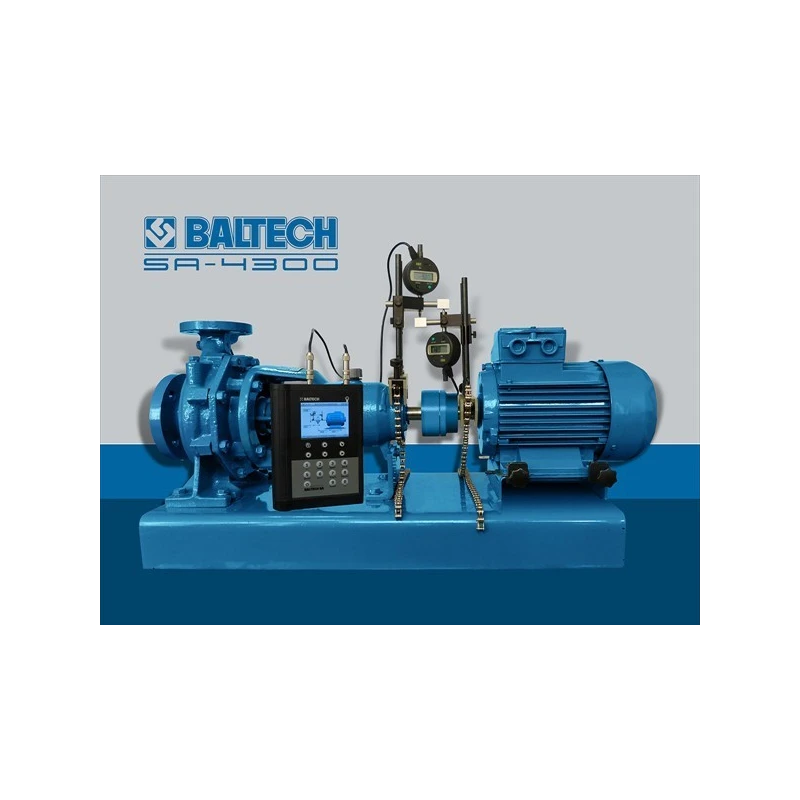

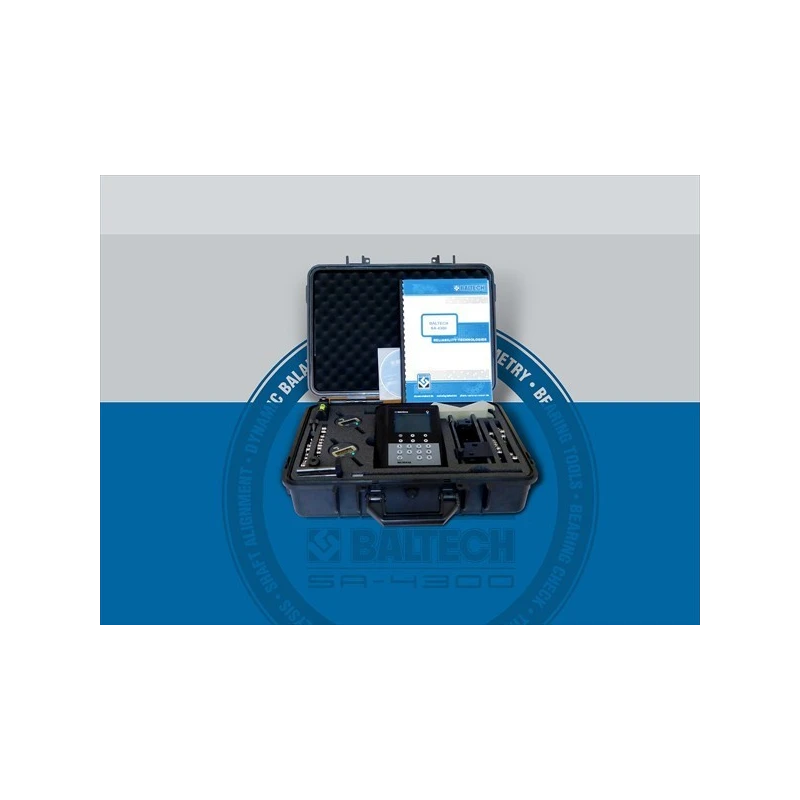

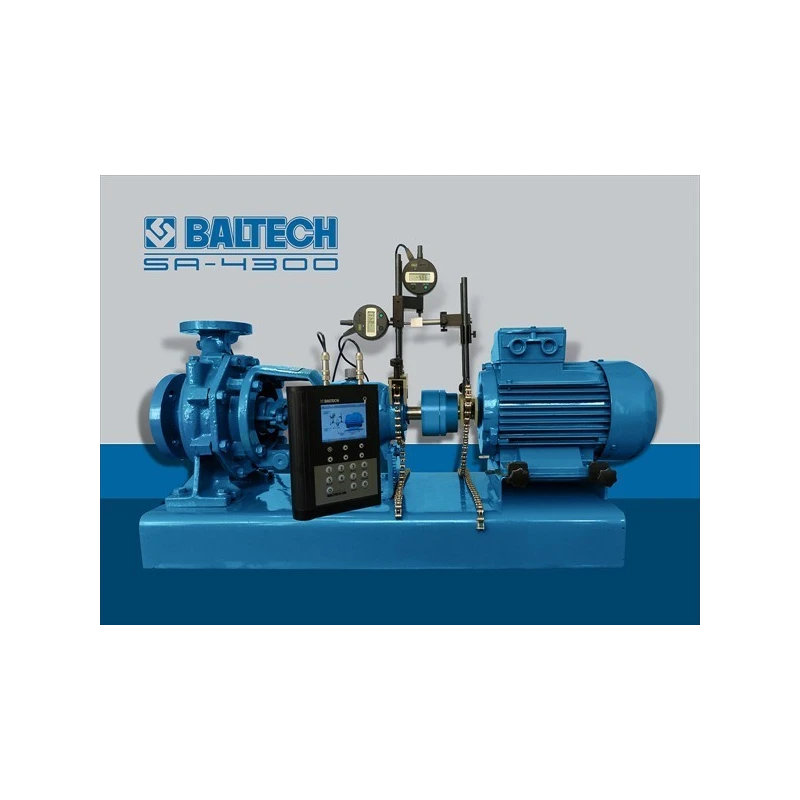

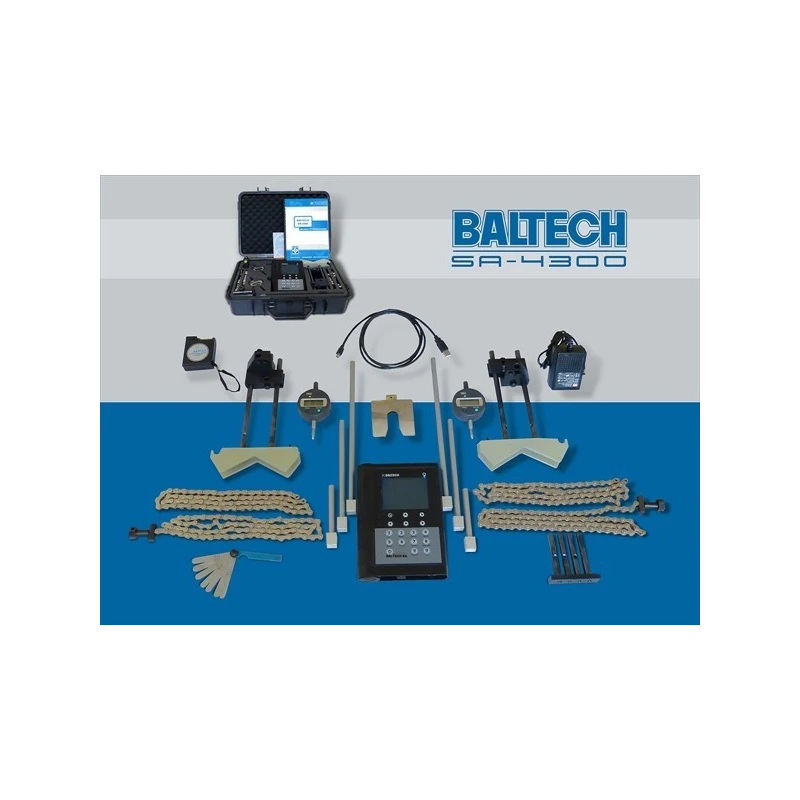

Dial Gauge Shaft Alignment Advance- BALTECH SA-4300BALTECH SA-4300 is an electronic and mechanical alignment system with digital electronic indicators. This is a fully automated set for shaft alignment of horizontal and vertical machines. The digital indicators are connected directly to the electronic unit via cables. The electronic unit carries out automatic calculation of misalignment values in two planes. BALTECH SA-4300 helps to perform the machine alignment in real-time mode. The alignment report is stored in the device memory and can be transferred to the BALTECH Expert balancing software.
- On-line alignment quality control
- Selection between the alignment methods: radiaxial method or dial indicator method
- Alignment results are stored in the device memory
- Report transfer to PC
