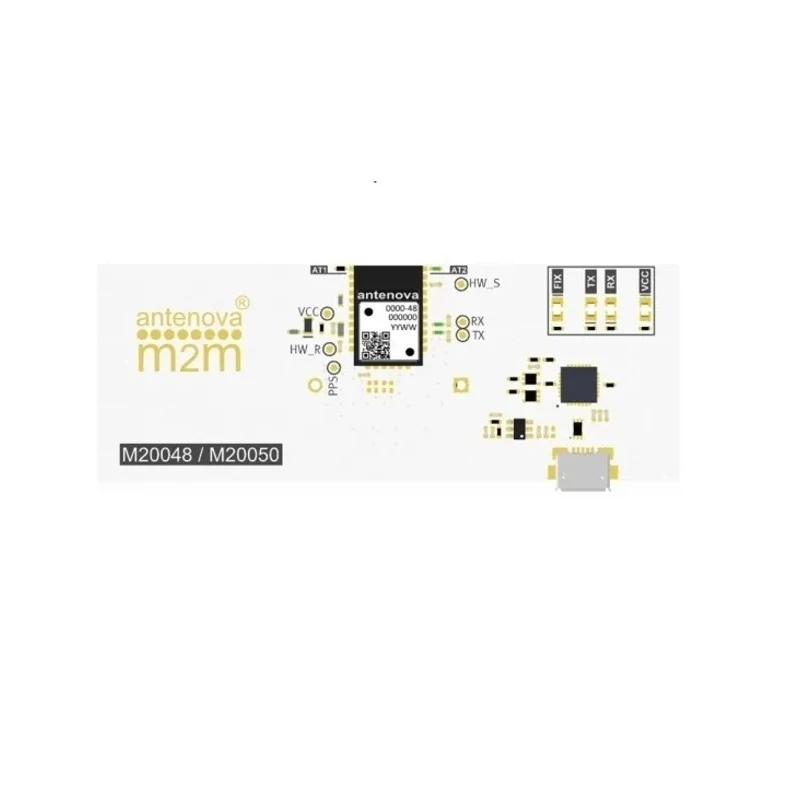

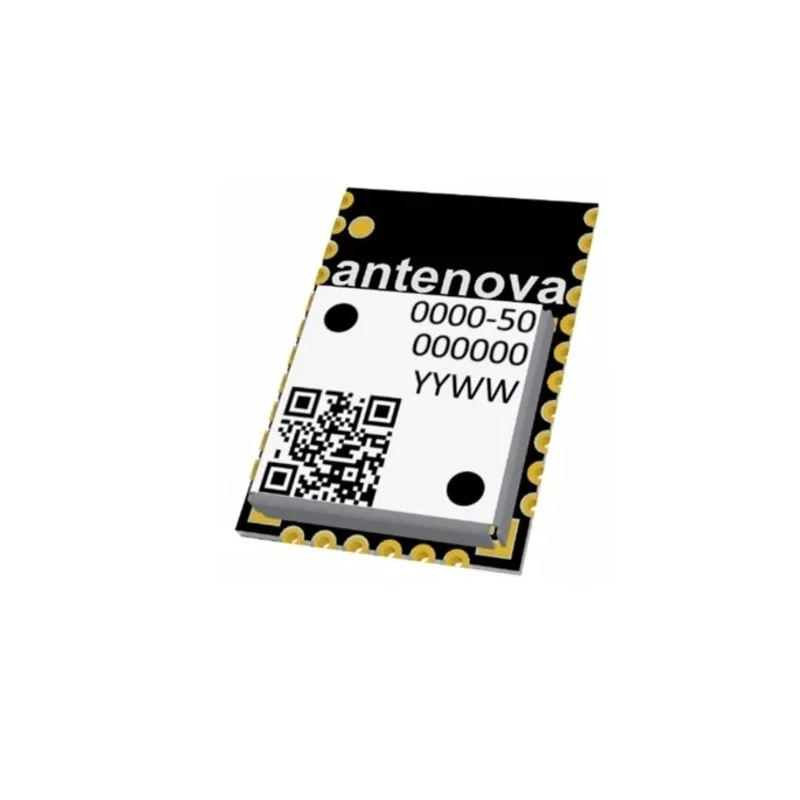

Antenova Compact GPS Module with MediaTek MT3333 Chip, 88 Channels, -163 dBm Sensitivity, 1575.42 MHz UART Interface M20050-1
Specifications
| Country of Origin | China |
|---|---|
| Frequency | 1575.42MHz |
| Brand | Antenova |
| Height | 1.8mm |
| Length | 13.8mm |
| Model | M20050-1 |
| Series | M20050-1 |
| Maximum Operating Temperature | 85°C |
| Protocol | NMEA 0183 |
| Minimum Operating Temperature | -40°C |
| Tracking Sensitivity | -165dBm |
| Acquisition Sensitivity | -163dBm |
| Number Of Channels | 88 |
| Interface Type | UART |
| Maximum Supply Voltage | 4.3V |
| Minimum Supply Voltage | 2.8V |
| Time to First Fix - Cold Start | 150s |
Key Features
- Supports 88 GNSS channels for accurate positioning.
- Exceptional acquisition sensitivity of -163 dBm and tracking sensitivity of -165 dBm.
- Operates at a frequency of 1575.42 MHz with UART interface.
- Compact ultra-small SMD package of 13.8 x 9.5 x 1.8 mm dimensions.
- Wide supply voltage range from 2.8 V to 4.3 V, with low power consumption.
- Fast cold start time to first fix of approximately 150 seconds.
- Supports simultaneous operation of GPS, GLONASS, GALILEO, and BEIDOU systems.
- Operating temperature range from -40°C to 85°C for robust deployment.
Product Description
Antenova M20050-1 is a compact GPS module integrating a MediaTek MT3333 flash chip to provide a complete GNSS receiver solution optimized for performance in industrial and commercial applications. Its ability to run multiple global navigation satellite systems simultaneously - including GPS, GLONASS, GALILEO, and BEIDOU - enhances location accuracy and reduces time to first fix (TTFF).
The module features an ultra-small surface mount device (SMD) package measuring 13.8 mm in length, 9.5 mm in width, and 1.8 mm in height, allowing integration in size-constrained devices. It operates within a versatile supply voltage range of 2.8 V to 4.3 V with low current consumption and various low power modes, ideal for power-sensitive applications.
The M20050-1 supports a high number of 88 GNSS channels with acquisition sensitivity down to -163 dBm and tracking sensitivity of -165 dBm. The 1575.42 MHz frequency operation, combined with a UART interface and NMEA 0183 protocol compatibility, facilitates straightforward integration into various embedded systems.
Supports multi-constellation operation for enhanced global coverage. Robust performance in indoor and outdoor environments with multi-path detection and compensation. Accurate 0.5 ppm temperature compensated crystal oscillator (TXCO) ensures precise timing for short TTFF.
Wide operating temperature range (-40°C to 85°C) suits demanding industrial environments. Low power consumption with specialized power saving modes extend battery life in portable devices. Ultra-compact SMD form factor enables design flexibility for modern electronic products.
Compatible with standard UART communication ensuring versatile interfacing options. Designed to meet industrial and commercial GNSS positioning needs across IoT, automotive tracking, asset management, and personal navigation systems.
This product is ideal for industrial, commercial, automotive, and consumer electronics applications requiring precise GPS location data with multi-GNSS support in a minimal footprint.
Explore our broad selection of GNSS & GPS Modules at EnvMart for advanced positioning solutions tailored to your project requirements.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This unit supports 88 GNSS channels for accurate positioning.
The acquisition sensitivity of this GPS module is -163 dBm.
The tracking sensitivity is -165 dBm.
It operates within a supply voltage range of 2.8 V to 4.3 V.
The module uses the NMEA 0183 protocol for communication.
The dimensions of this model are 13.8 mm in length, 9.5 mm in width, and 1.8 mm in height.
It operates at a frequency of 1575.42 MHz.
The minimum operating temperature is -40°C.
This GPS module uses a UART interface for connectivity.
It supports simultaneous operation of GPS, GLONASS, GALILEO, and BEIDOU systems.
