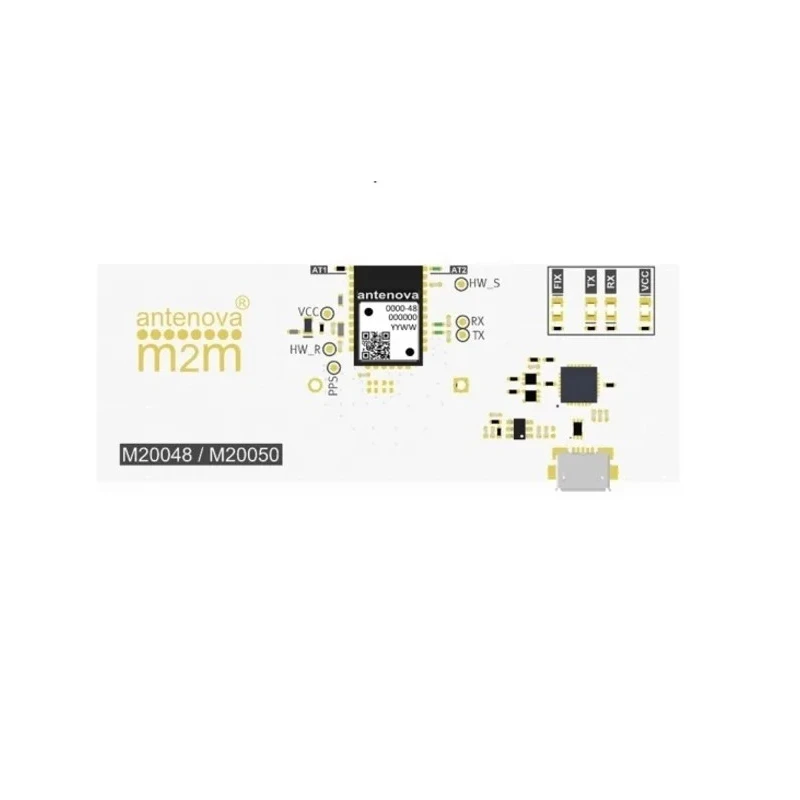

Antenova GPS Module 88 Channels -163 dBm Acquisition Sensitivity 1575.42 MHz UART Interface M20048-1

The Antenova M20048-1 GPS Module is a compact and highly sensitive GPS receiver module designed for precise location detection and tracking applications. Featuring 88 channels, it utilizes the MediaTek MT3337 ROM chip to provide complete GPS functionality with an integrated antenna, simplifying installation and reducing footprint on your design.

This module boasts a remarkable acquisition sensitivity of -163 dBm and an even better tracking sensitivity of -165 dBm, ensuring reliable operation in challenging environments. Operating at a frequency of 1575.42 MHz, it supports fast and accurate positioning with a Time to First Fix (cold start) of about 150 seconds, aided by a precise 0.5ppm temperature compensated crystal oscillator (TXCO).

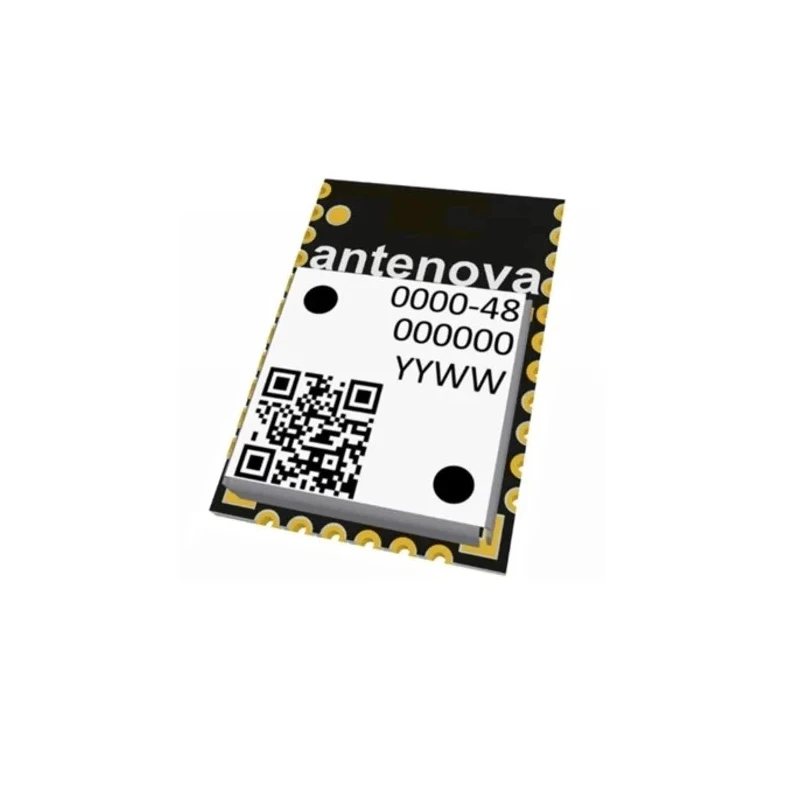

The module is housed in an ultra-small surface-mount device (SMD) package with dimensions 13.8 mm in length and 1.8 mm in height, making it an excellent choice for embedded applications with tight space constraints. Its low power requirements spanning from 2.8 V to 4.3 V and various low-power modes make it suitable for battery-operated devices.

With an operating temperature range of -40°C to 85°C, the M20048-1 GPS Module is rugged enough for industrial, automotive, and outdoor applications. It outputs GPS data using the widely adopted NMEA protocol over UART interface, allowing for easy integration with microcontrollers and processors.

Indoor and outdoor multi-path detection and compensation features contribute to enhanced positional accuracy. The Antenova M20048-1 GPS module is ideal for use in consumer electronics, asset tracking, navigation systems, and IoT devices requiring reliable satellite positioning.

The module supports an acquisition sensitivity of -163 dBm for fast satellite acquisition. Tracking sensitivity reaches -165 dBm for accurate ongoing GPS signal tracking. Operates at a frequency of 1575.42 MHz with a compact ultra-small SMD package.

Low power consumption with a supply voltage range from 2.8 V to 4.3 V. Temperature operating range is from -40°C to 85°C ensuring rugged performance. Uses a MediaTek MT3337 ROM chip with internal antenna, enabling simple drop-in integration.

Time to first fix in cold start is approximately 150 seconds. Supports NMEA protocol for data output. Dimensions: length 13.8 mm, height 1.8 mm for easy PCB mounting. Manufactured in China with no additional standards or approvals listed.

Antenova is a recognized brand in electronic antenna and RF modules, and the M20048-1 series represents a dependable choice for designers requiring integrated GPS solutions. Explore more GNSS & GPS Modules on EnvMart for complementary wireless components and modules.
