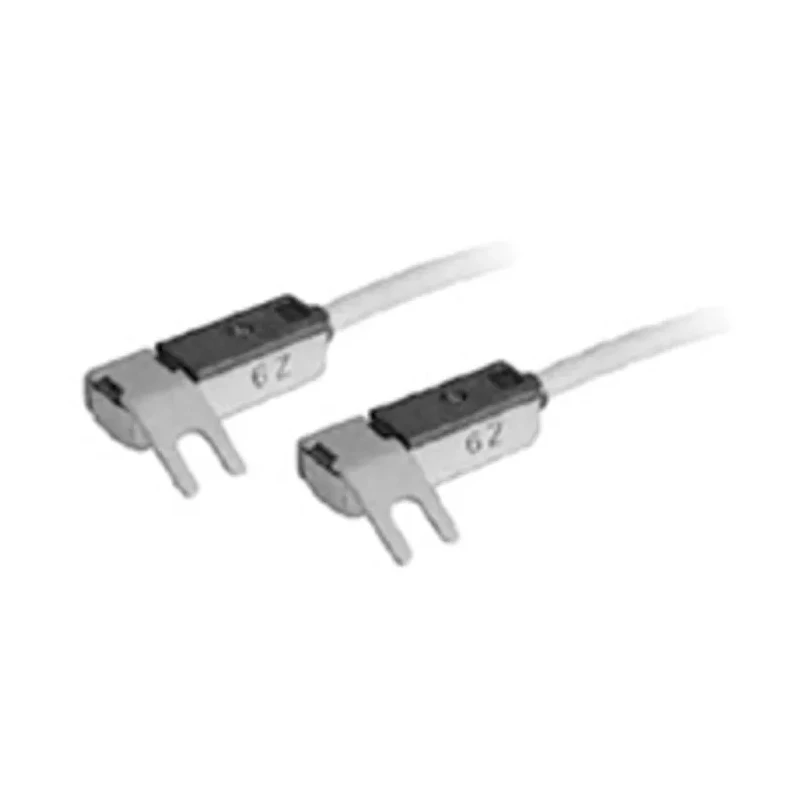

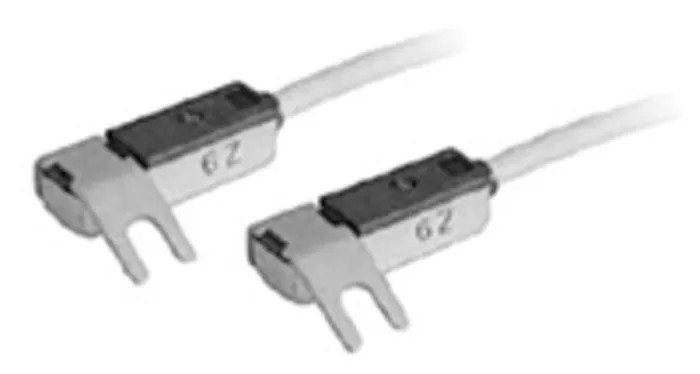

SMC 2-Wire Open End Cable Direct NC Reed Pneumatic Cylinder & Actuator Switch 100V ac LED Indicator D-R731

Free Delivery in India | Lowest Global Shipping Charges

SMC 2-Wire Open End Cable Direct NC Reed Pneumatic Cylinder & Actuator Switch 100V ac LED Indicator D-R731



Category Pneumatic Cylinder Switch Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	100V ac
Brand	SMC
Height	18mm
Model	D-R731
Depth	46mm
IP Rating	IP67
Width	15.5mm
Operation Type	NC
Mount Type	Direct
Series	D-R7
Maximum Operating Temperature	60°C
Sub Type	Reed
Minimum Operating Temperature	-10°C
For Use With	Size 20 to 100 CDRB Series Rotary Actuator, Size 7 to 20 MDSU Series Rotary Actuator
Standards/Approvals	IEC 529
Electrical Connection Type	2-Wire Open End Cable
Applicable Load	PLC

Key Features

The switch is designed for use with Size 20 to 100 CDRB Series Rotary Actuator and Size 7 to 20 MDSU Series Rotary Actuator.
It offers a robust IP67 rating ensuring protection against dust and water ingress.
Operating temperature ranges from -10°C to 60°C for versatile industrial applications.
Equipped with a PLC applicable load for automation control systems.
Compact dimensions of 18mm height, 15.5mm width, and 46mm depth facilitate easy installation.
Conforms to IEC 529 standards assuring safety and reliability.
Includes an LED indicator to assist in identifying operating position during use.

Product Description

SMC D-R731 Pneumatic Cylinder & Actuator Switch is a 2-wire open end cable type sensor designed specifically for direct mounting on pneumatic cylinders and actuators. Operating at 100V AC, it features an NC (normally closed) reed switch and comes with an integrated LED indicator for easy position identification during automation and control operations.

This product is compatible with Size 20 to 100 CDRB Series Rotary Actuators and Size 7 to 20 MDSU Series Rotary Actuators, making it suitable for diverse pneumatic systems. Its compact size with dimensions of 18mm height, 15.5mm width, and 46mm depth ensures flexible installation in tight spaces.

The switch offers an IP67 rating, providing excellent protection against dust and water ingress, making it ideal for harsh industrial environments such as manufacturing, fluid power systems, and automation machinery. The operational temperature range between -10°C and 60°C supports reliability under varying climatic conditions. This switch’s load compatibility with PLC systems ensures smooth integration into programmable logic controller setups for precise control.

Manufactured to meet IEC 529 standards, the D-R731 assures safe and consistent performance. The built-in two-color LED indicator helps operators quickly identify the switch’s operating status, enhancing operational efficiency and reducing downtime.

This SMC pneumatic cylinder switch is a reliable component widely used in industrial, laboratory, construction, automation, and HVAC applications for position sensing and control feedback. Its durable construction and functional design contribute to optimized pneumatic system performance.

The switch is designed for use with Size 20 to 100 CDRB Series Rotary Actuator and Size 7 to 20 MDSU Series Rotary Actuator. It offers a robust IP67 rating ensuring protection against dust and water ingress. Operating temperature ranges from -10°C to 60°C for versatile industrial applications.

Equipped with a PLC applicable load for automation control systems. Compact dimensions of 18mm height, 15.5mm width, and 46mm depth facilitate easy installation. Conforms to IEC 529 standards assuring safety and reliability.

Includes an LED indicator to assist in identifying operating position during use. Explore the full range of Pneumatic Cylinder Switches and actuators to find compatible accessories and enhance your industrial automation setup.
