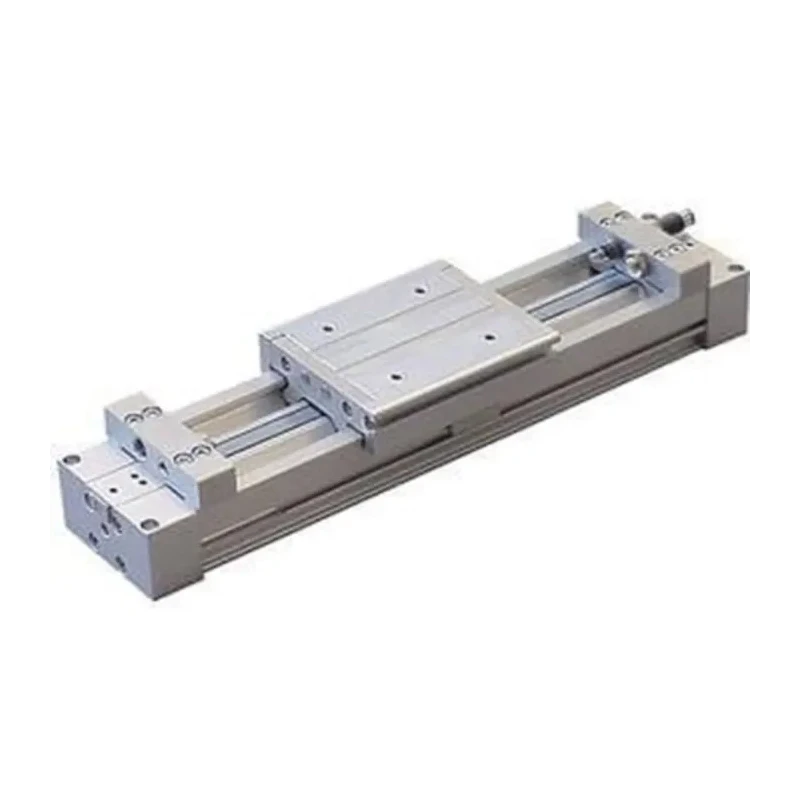

SMC Double Acting Rodless Pneumatic Cylinder 20mm Bore 300mm Stroke Aluminium Alloy Body MY1M20G-300
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 8 bar |
| Height | 46mm |
| Length | 500mm |
| Model | MY1M20G-300 |
| Width | 60mm |
| Series | MY1M |
| Maximum Operating Temperature | 60°C |
| Mounting Orientation | Horizontal |
| Minimum Operating Temperature | 5°C |
| Stroke Length | 300mm |
| Bore Diameter | 20mm |
| Action Type | Double Acting |
| Standards/Approvals | 2011/65/EU |
| Connection Thread Standard | Metric |
| Cushioning Type | Air Cushion |
| Guide Type | Slide Bearing |
| Port Gender | Female |
| Port Thread Size | M5 x 0.8 |
Key Features
- Constructed with an aluminium alloy body for strength and lightweight performance.
- Offers double acting action type for versatile pneumatic control.
- Equipped with air cushioning for smooth operation and reduced impact.
- Maximum operating pressure of 8 bar for reliable function under load.
- Features slide bearing guide type for lateral stability and side load protection.
- Metric connection thread standard with M5 x 0.8 port thread size and female port gender.
- Operates efficiently in temperatures ranging from 5°C to 60°C.
- Designed for horizontal mounting orientation suitable for various pneumatic systems.
Product Description
SMC MY1M20G-300 double acting rodless pneumatic cylinder is a precision-engineered component designed to provide effective linear motion in pneumatic systems. Featuring a 20mm bore diameter and 300mm stroke length, this cylinder boasts a durable aluminium alloy body that combines strength with lightweight performance, ideal for industrial, manufacturing, and automation applications.
The double acting operation allows fluid control in both directions, enhancing the cylinder's versatility. It incorporates an air cushioning mechanism that ensures smooth piston movement and minimizes mechanical impact, extending the cylinder's service life. The integrated slide bearing guide offers excellent lateral stability and protects against side loads, making it suitable for horizontal mounting in constrained spaces.
This model operates reliably under a maximum pressure of 8 bar and is rated for continuous use within a temperature range of 5°C to 60°C. The metric connection thread standard and M5 x 0.8 female port thread size facilitate easy integration with existing pneumatic systems.
With a compact footprint (height 46mm, width 60mm, length 500mm), it is suitable for environments requiring precise linear motion with space limitations. The product complies with the RoHS directive 2011/65/EU, ensuring restriction of hazardous substances and alignment with environmental regulations.
Durable aluminium alloy body construction. Double acting pneumatic control for bidirectional movement. Air cushioning reduces piston impact and noise. Maximum operating pressure of 8 bar for demanding applications. Slide bearing guide enhances stability and reduces wear.
Metric threads with female port gender for compatibility. Operates efficiently between 5° and 60°C. Compact dimensions allow for space-saving installation. Designed for horizontal mounting orientation. Complies with RoHS 2011/65/EU standards.
This Pneumatic Rodless Cylinder is suited for industrial automation, manufacturing plants, and any pneumatic system requiring reliable and compact linear actuation. Explore more industrial pneumatics components and cylinders in the Hydraulic & Pneumatic Tools category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 300mm.
It has a maximum operating pressure of 8 bar.
The bore diameter is 20mm.
This pneumatic cylinder features a double acting action type, allowing for fluid control in both directions.
The dimensions are height 46mm, width 60mm, and length 500mm.
It operates efficiently in temperatures ranging from 5°C to 60°C.
It is equipped with air cushioning to ensure smooth operation and reduce impact.
The connection thread size is M5 x 0.8 with a female port gender.
This model features a slide bearing guide type for lateral stability and side load protection.
It is designed for horizontal mounting orientation.
It complies with the RoHS directive 2011/65/EU, ensuring the restriction of hazardous substances.
The body of the cylinder is constructed from aluminium alloy, providing strength and lightweight performance.
