RS PRO Handheld Digital OLED Multimeter 1kV AC/DC Voltage 10MHz Frequency Measurement RS-9519BT

Free Delivery in India | Lowest Global Shipping Charges

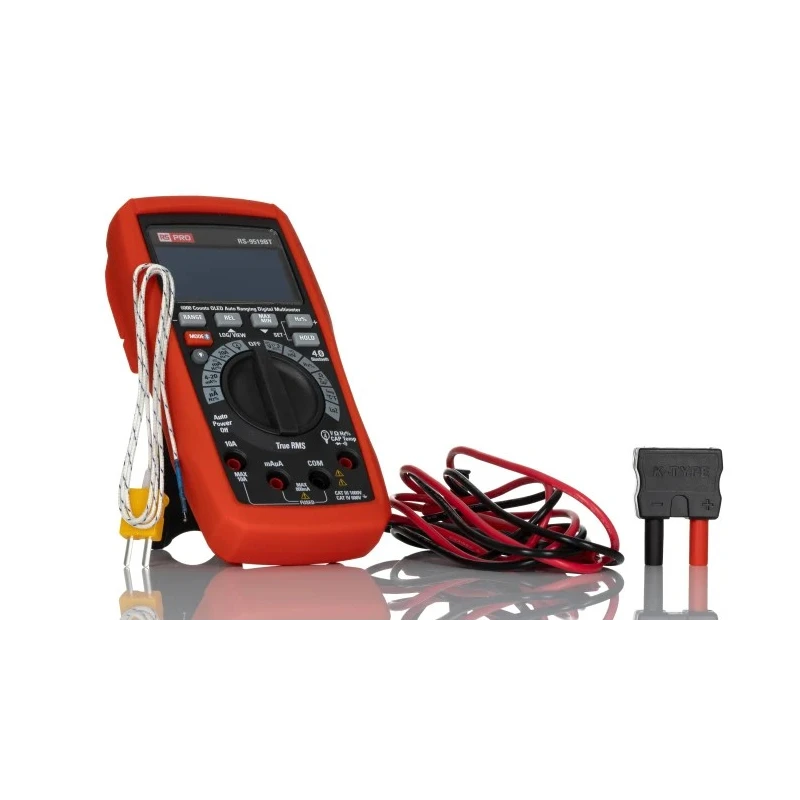

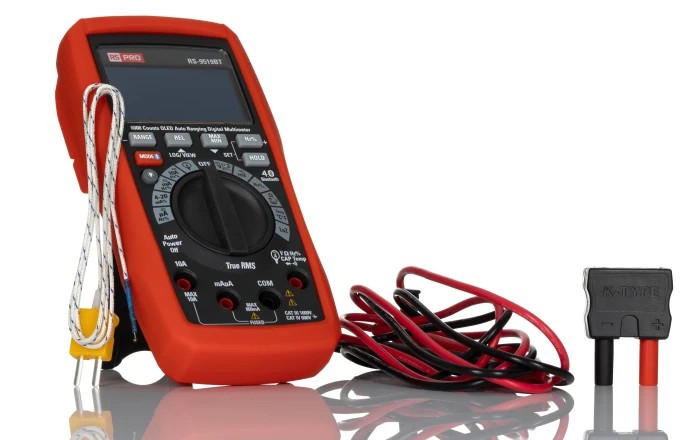

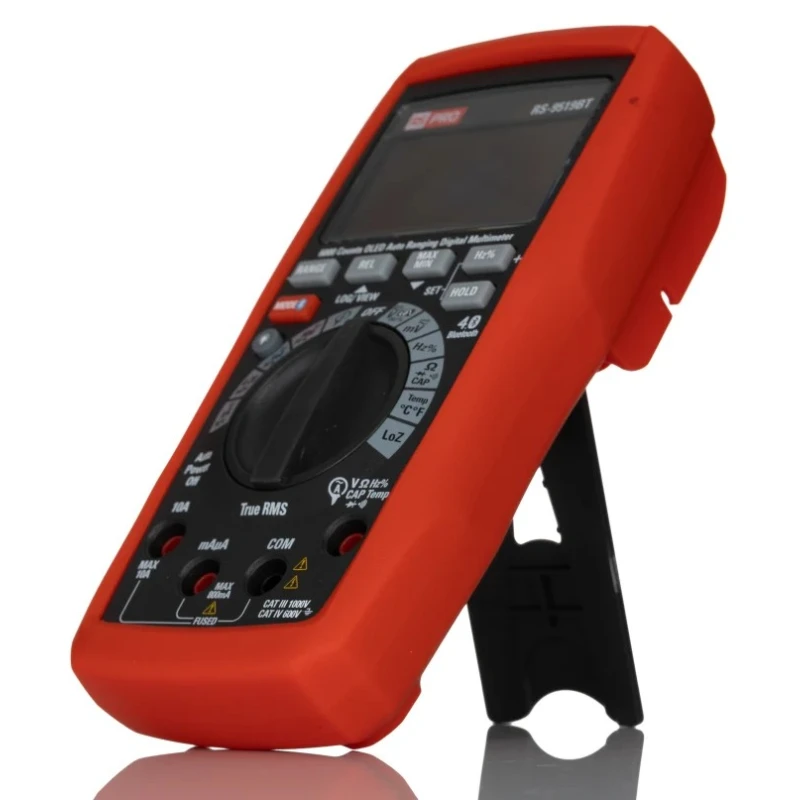

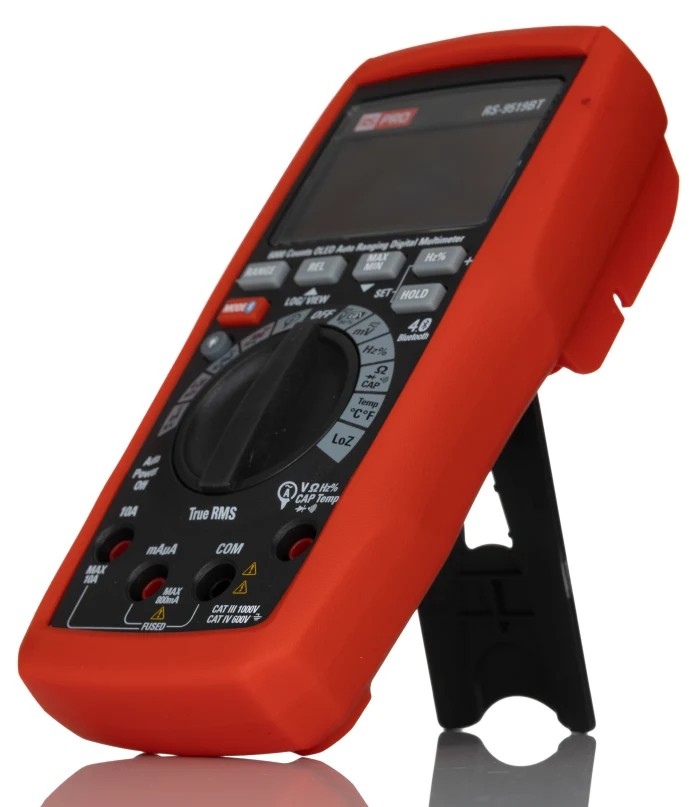

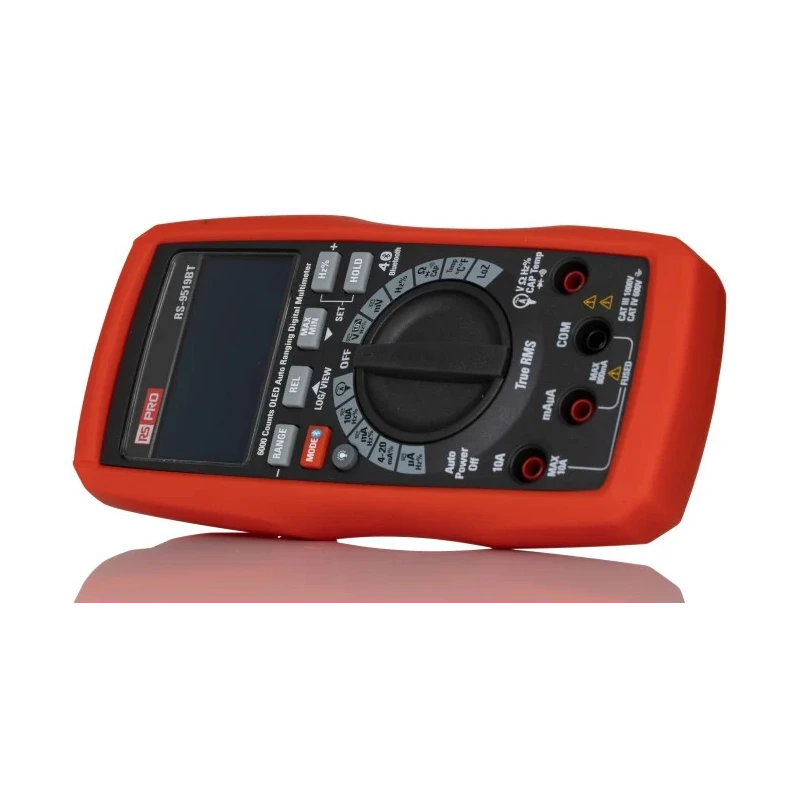

RS PRO Handheld Digital OLED Multimeter 1kV AC/DC Voltage 10MHz Frequency Measurement RS-9519BT

Name: RS PRO Handheld Digital OLED Multimeter 1kV AC/DC Voltage 10MHz Frequency Measurement RS-9519BT
Brand: RS PRO
SKU: 336998
Price: 236.18 USD
Availability: InStock



Category Digital Multimeter Brand RS PRO Condition New

Specifications

Country of Origin	China
Display Type	OLED
Brand	RS PRO
Battery type	1.5 V AAA
Height	183mm
Length	45mm
Model	RS-9519BT
Gross Weight	350g
Width	90mm
Maximum Operating Temperature	40°C
AC Voltage Resolution	1V
Minimum Operating Temperature	0°C
DC Current Accuracy	±1.5%+8
Resistance Resolution	0.01
AC Current Resolution	10mA
Multimeter Type	Handheld
Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Duty Cycle, Frequency, Resistance, Temperature
Maximum DC Voltage Measurement	1kV dc
Maximum Frequency	10MHz
Safety Category Level	CAT III, CAT IV
Safety Category Voltage	1kV

Key Features

Measures AC/DC voltage up to 1kV and DC current with ±1.5% accuracy plus 8 digits.
Features capacitance, resistance, frequency, duty cycle, temperature, diode, and continuity tests.
Equipped with Bluetooth for wireless data transmission and easy recording.
Compact, rugged design for durability in harsh industrial environments.
Includes auto power-off and low battery indicator for efficient power management.
Backlit OLED screen ensures visibility in low light and outdoor conditions.

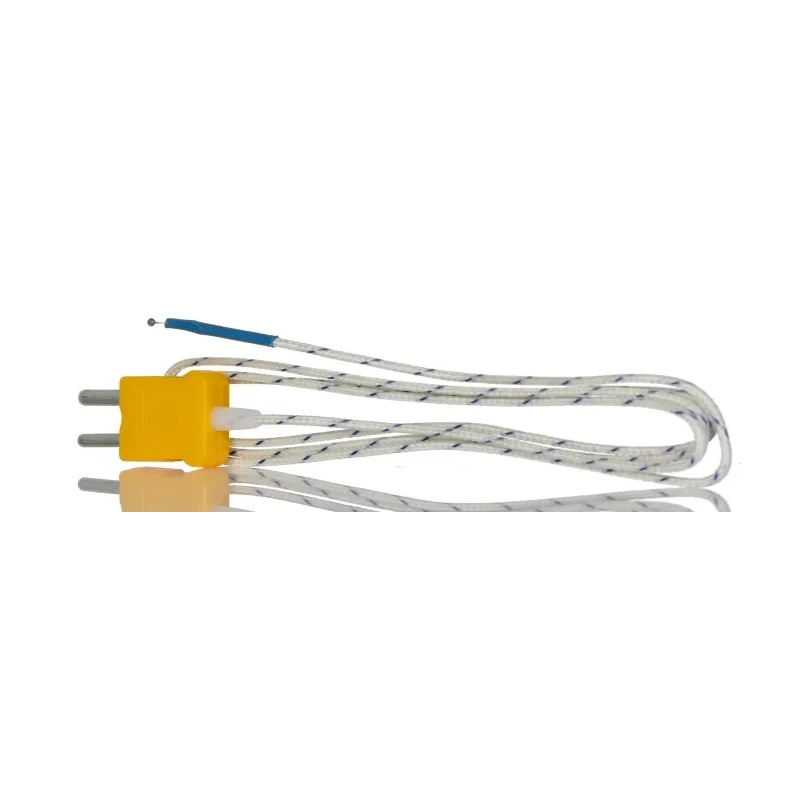

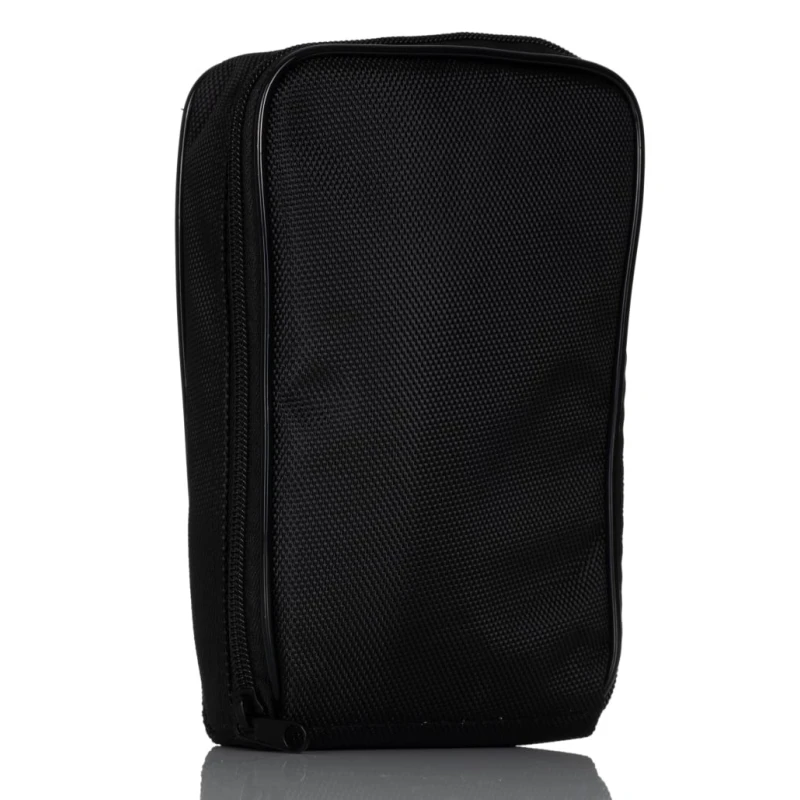

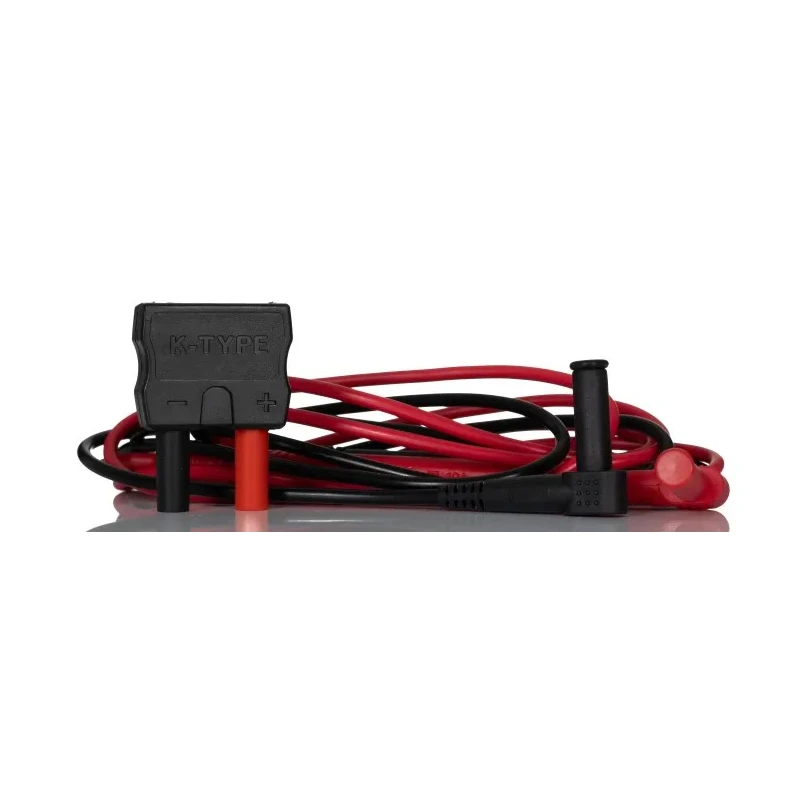

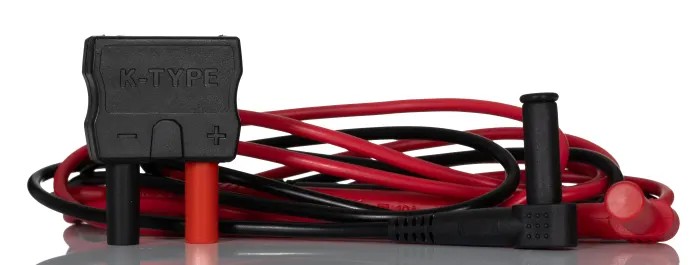

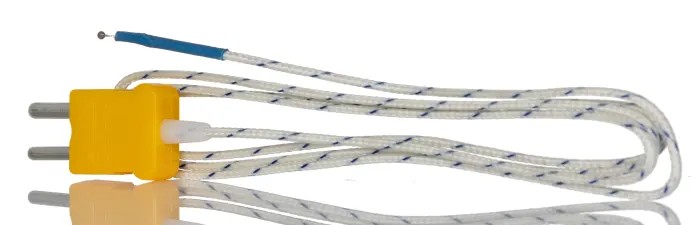

Supplied with test leads, Type K temperature probe, carrying case, and batteries.

Product Description

The RS PRO RS-9519BT is a handheld true RMS digital multimeter that delivers accurate and comprehensive electrical measurements for professionals. Equipped with a high-quality OLED display, it enables clear visualization of measurement data even under challenging lighting conditions, making it ideal for industrial, construction, and electrical maintenance applications.

This multimeter measures AC and DC voltages up to 1000 volts and DC current with ±1.5% plus 8 digits accuracy, ensuring precision in diagnostics and troubleshooting. Its wide functionality includes capacitance, resistance, frequency (up to 10MHz), duty cycle, temperature measurement via a Type K probe, diode and continuity tests, delivered within a compact and rugged handheld enclosure rated for CAT III and CAT IV safety up to 1kV. The device operates from 0°C to 40°C, suitable for various field conditions.

Bluetooth connectivity facilitates wireless data transmission to compatible software, enhancing ease of logging measurements remotely. The multimeter features an auto power-off option and battery life indicator to improve operational convenience. Its low resistance measurement range from 0 to 60 ohms and maximum output current of 10 ampere support a wide range of electrical tests.

AC/DC voltage and current measurement with high accuracy. Capacitance, resistance, frequency, and temperature measurement. Bluetooth wireless data connectivity for real-time monitoring. Rugged, compact design suited for industrial and construction environments.

Bright OLED backlit display for enhanced readability. Safety certified to CAT III and CAT IV 1kV standards.

This RS PRO multimeter is essential for engineers and technicians in electrical testing, cable installation, industrial manufacturing, and maintenance sectors. It combines reliable performance with versatile measurement and data management features.
