Chauvin Arnoux Handheld Digital Multimeter CA 703 with 200 mA AC/DC Current Measurement P01191740Z

Chauvin Arnoux P01191740Z handheld digital multimeter CA 703 is a compact, precise instrument designed for professionals and hobbyists needing reliable measurements of AC and DC current, voltage, resistance, continuity, and diode testing. With a measuring range of up to 600 V dc and 200 mA in both AC and DC currents, this multimeter delivers accurate readings with DC current accuracy of ±2 % rdg + 8 digits and AC current accuracy of ±1 % rdg + 8 digits.

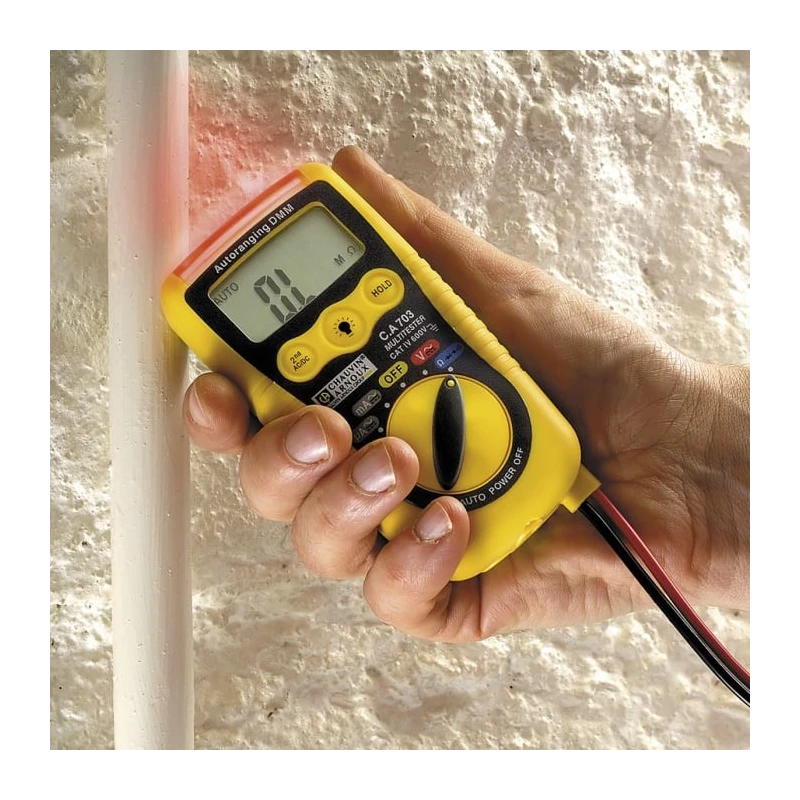

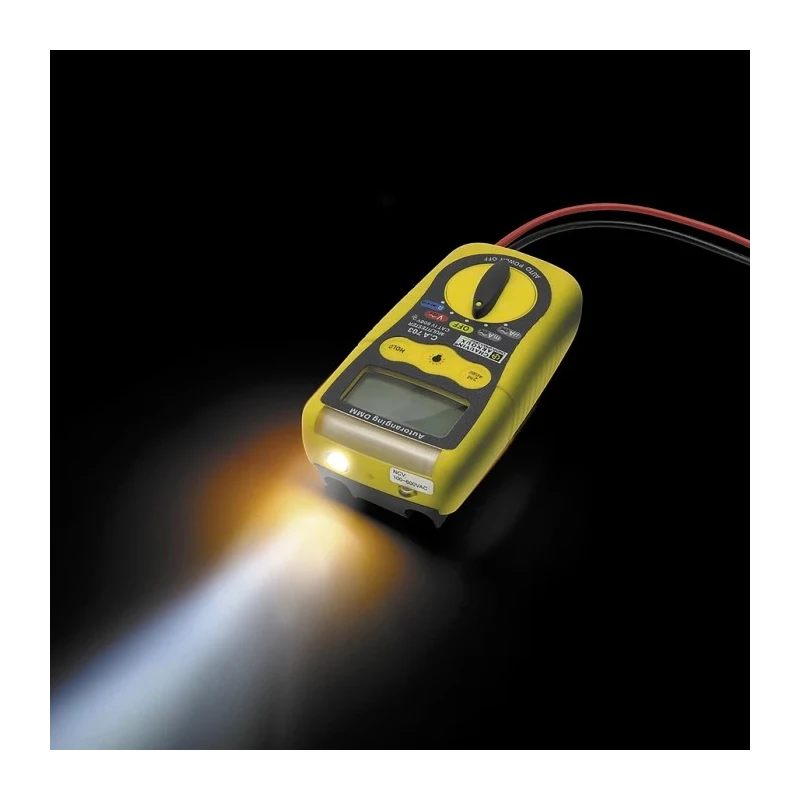

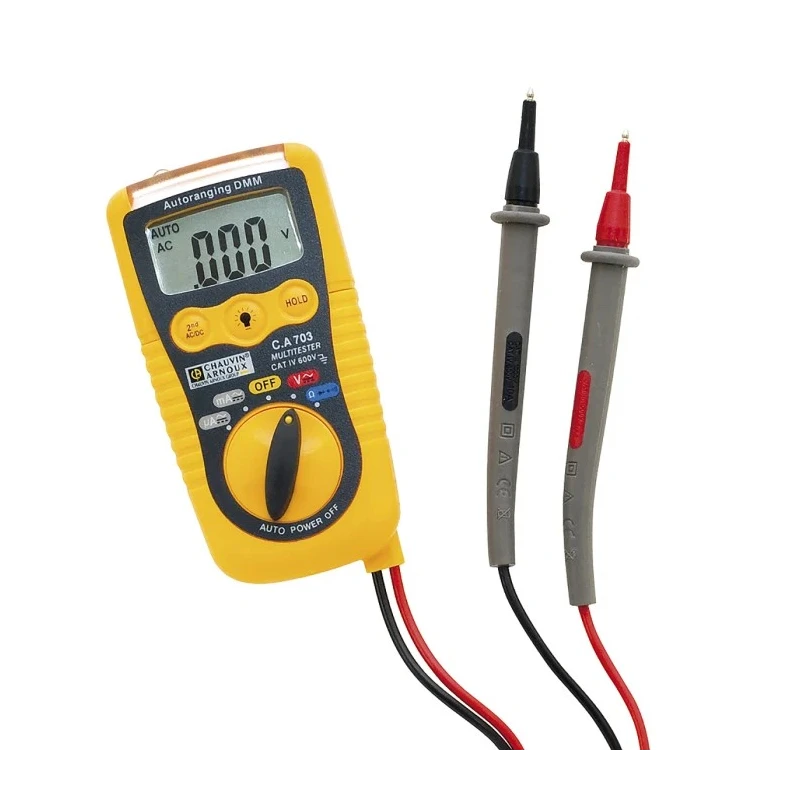

Its automatic range selection simplifies operation, and the 2000-count digital display delivers clear results. The built-in flashlight ensures usability in dimly lit areas, enhancing practical applications in electrical troubleshooting. Compact and pocket-sized, it includes molded ergonomic casing for a comfortable grip and built-in test probes for convenience during field use.

The device is powered by two AAA 1.5 V batteries (IEC LR03), providing up to 100 hours of operation. Safety is assured with CAT IV 1 kV and CAT III 1000 V ratings, making it suitable for use in industrial, HVAC, electrical maintenance, laboratory, and manufacturing environments. Its robust design withstands operating temperatures from 0°C to 40°C.

The multimeter measures resistance from 200 Ω up to 20 MΩ with accuracy of ±0.8 % rdg + 5 digits, supports continuity testing with buzzer, diode testing up to 1.999 V, and detects non-contact voltage (NCV). It is ideal for troubleshooting electrical circuits safely and efficiently.

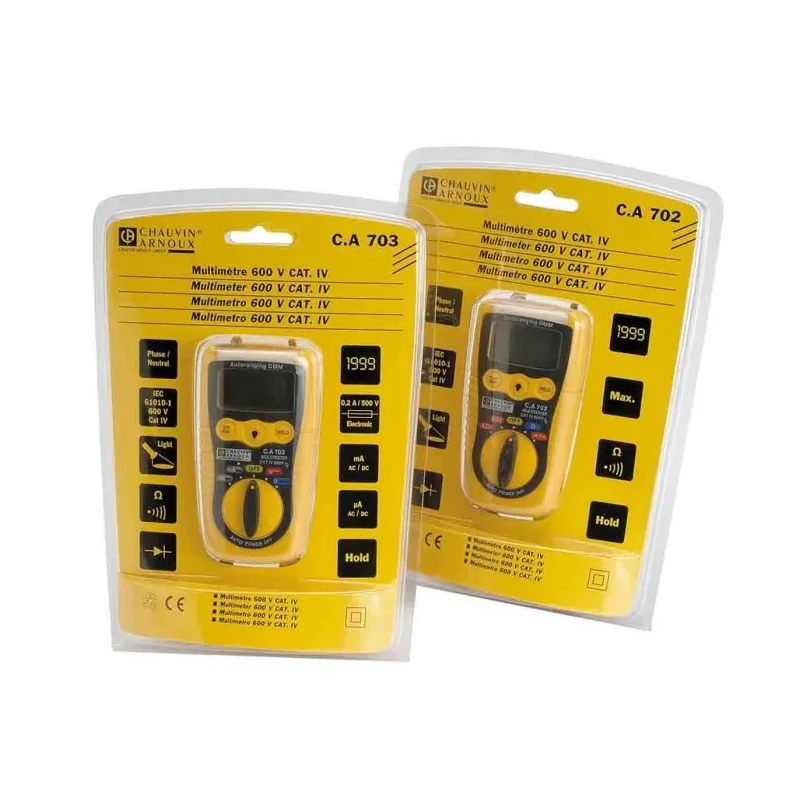

Package includes the CA 703 multimeter device, two 1.5 V LR03 AAA batteries, and a user instruction manual. This model originates from China and complies with IEC 61010 safety standards.

The multimeter measures AC and DC voltages from 200 mV to 600 V. Current measurement ranges from 200 µA to 200 mA for AC and DC. Resistance measurement range extends from 200 Ω to 20 MΩ. Equipped with built-in flashlight for use in low light conditions.

Automatic range selection enhances ease of measurement. Compact, pocket-sized form factor with molded grip and built-in test probes. Powered by two AAA batteries with up to 100 hours battery life. Safety certified for CAT IV 1 kV and CAT III 1000 V applications.

Operates reliably within 0°C to 40°C environment.

Choose the Chauvin Arnoux CA 703 handheld Digital Multimeter for accurate, portable, and safe electrical measurements in industrial, laboratory, electrical maintenance, and manufacturing sectors. Explore more professional measuring instruments and accessories at EnvMart.
