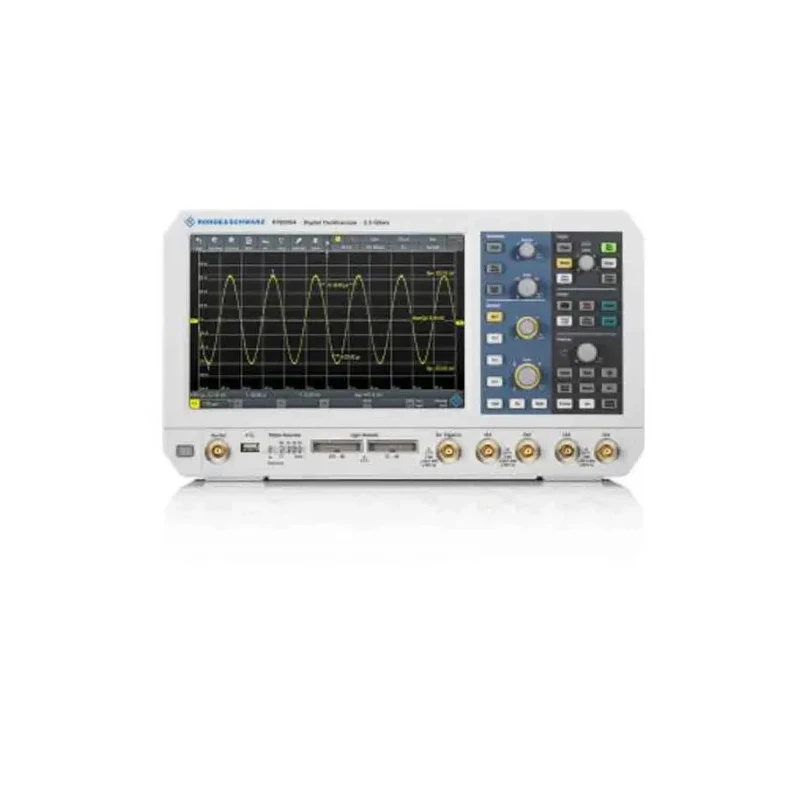

Rohde & Schwarz 300 MHz 4-Channel Bench Oscilloscope RTB2000
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Rohde & Schwarz |
| Height | 249mm |
| Model | RTB2000 |
| Width | 427mm |
| Bandwidth | 300MHz |
| Sampling rate | Up to 5 Gsample/s |
| Series | RTB2000 |
| Number Of Channels | 4 |
| Vertical Resolution | 10 bit |
| Rise Time | 1.75ns |
| Interface Type | UART/RS232 |
| Oscilloscope Type | Bench |
| Minimum Vertical Sensitivity | 1mV/div |
| Minimum Time Base | 1ns/div |
| Maximum Vertical Sensitivity | 5V/div |
| Maximum Time Base | 500s/div |
| 143-9327 - RTB2004 | Oscilloscope, 4 channels, 300 MHz |

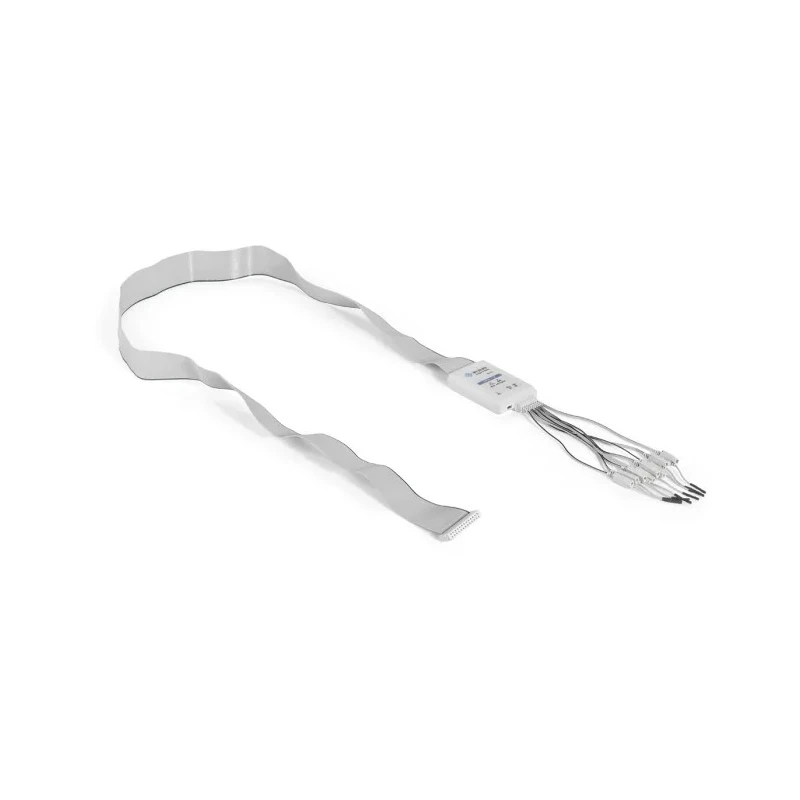

| 143-9334 - RTB-B1 | Oscilloscope Module, Mixed Signal Upgrade (MSO) |
| 143-9335 - RTB-B6 | Oscilloscope Software, 4-Bit Pattern Generator, Waveform Generator |
| 143-9341 - RTB-B243 | Oscilloscope Software, 300 MHz Bandwidth Upgrade |
| 143-9329 - RTB-K1 | I2C/SPI Trigger & Decode |
| 143-9330 - RTB-K2 | UART/RS232 Trigger & Decode |
| 143-9331 - RTB-K3 | CAN/LIN Trigger & Decode |
| 143-9332 - RTB-K15 | History & Segmented Memory Module |
| 184-9849 - RTB-K36 | Oscilloscope Software, Bode Plot Analysis |
| Rohde & Schwarz RTB2000 Series, 300 MHz Bench 4-ChannelBrand | Rohde & Schwarz |
Key Features
- Features a 300 MHz bandwidth for accurate signal analysis.
- Includes 4 input channels supporting complex multi-signal tests.
- Boasts a 10.1-inch WXGA capacitive color touchscreen with 1280 x 800 resolution.
- Equipped with UART/RS232 interface for diverse connectivity.
- Offers a vertical resolution of 10 bits for precise measurements.
- Provides a minimum time base of 1 ns/div and maximum vertical sensitivity of 5 V/div.
- Supports software upgrades including MSO and bandwidth enhancements.
- Incorporates built-in applications such as logic analyser, protocol analyser, and waveform generator.
Product Description
Rohde & Schwarz RTB2K-COM4 300 MHz 4-Channel Bench Oscilloscope combines powerful measurement capabilities with a user-friendly interface to support industrial, laboratory, and manufacturing environments. This oscilloscope is ideal for troubleshooting, embedded designs, and production testing.
Featuring a 10-bit ADC with a long 10 Msample memory and a large 10.1-inch capacitive color touchscreen, this model delivers sharp waveform display and intuitive navigation. Its 300 MHz bandwidth and four channels enable detailed and simultaneous signal analysis, making it a versatile tool for advanced electronics work.
The device supports a variety of protocol decoders and operating modes such as frequency analysis, mask tests, and long data acquisition. It also functions as a logic analyser, pattern generator, and digital voltmeter, further broadening its application scope.
The included software upgrades add mixed signal functionality, extended bandwidth, and protocol triggering and decoding for interfaces like UART, CAN, and LIN, ensuring adaptability for evolving test requirements. The oscilloscope’s compact size (427 mm width, 249 mm height) fits easily on lab benches and workstations.
Originating from Romania, this oscilloscope represents Rohde & Schwarz’s commitment to quality and precision. Its integrated features make it suitable for a wide range of industrial, educational, and R&D applications.
Features a 300 MHz bandwidth for accurate signal analysis. Includes 4 input channels supporting complex multi-signal tests. Boasts a 10.1-inch capacitive touchscreen with 1280 x 800 WXGA resolution. Equipped with UART/RS232 interface for diverse connectivity options.
Offers a vertical resolution of 10 bits for precise measurements. Minimum time base of 1 ns/div and maximum vertical sensitivity of 5 V/div enhance signal clarity. Software upgrades provide mixed signal and bandwidth enhancements.
Built-in logic analyser, protocol analyser, and waveform generator for multifunctional operation. Designed for industrial, laboratory, embedded development, and production testing environments. Explore more Rohde & Schwarz Oscilloscopes and test & measurement instruments on EnvMart to find the perfect fit for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RTB2000 oscilloscope features a bandwidth of 300 MHz, allowing for accurate signal analysis.
This model includes 4 input channels, supporting complex multi-signal tests.
It offers a vertical resolution of 10 bits, which provides precise measurements.
The minimum vertical sensitivity is 1 mV/div, while the maximum is 5 V/div.
The minimum time base is 1 ns/div, enabling detailed signal observation.
It is equipped with a UART/RS232 interface for diverse connectivity options.
This oscilloscope has a sampling rate of up to 5 Gsample/s, enhancing its measurement capabilities.
The oscilloscope has a width of 427 mm and a height of 249 mm, making it compact for lab use.
It incorporates built-in applications such as a logic analyser, protocol analyser, and waveform generator.
Yes, it supports software upgrades including mixed signal functionality and bandwidth enhancements.
The rise time of this model is 1.75 ns, contributing to its performance in signal analysis.
This oscilloscope originates from Romania, reflecting the brand's commitment to quality.
