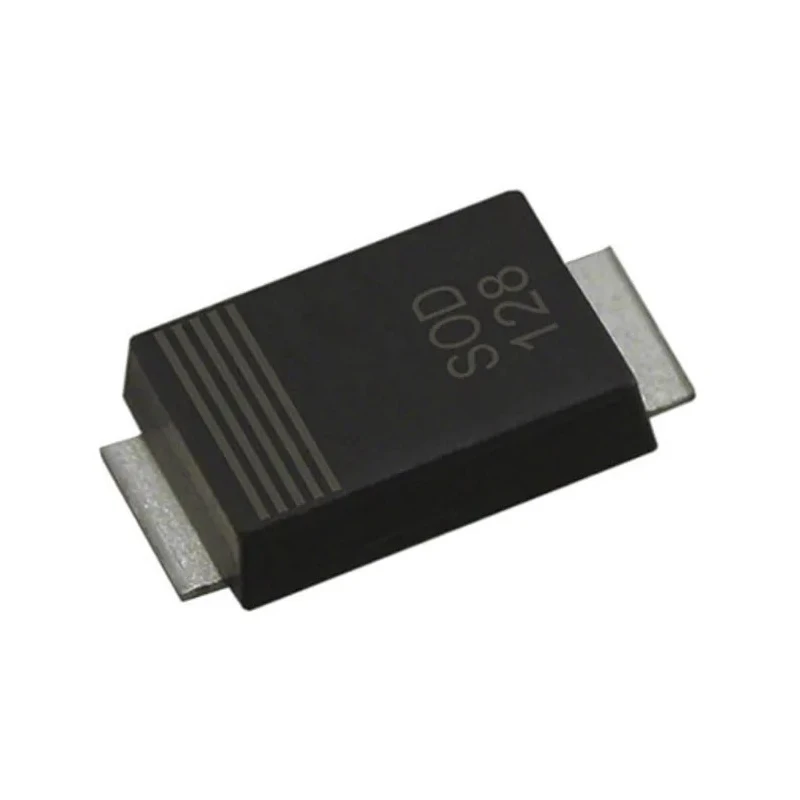

STMicroelectronics 100 V 3 A Schottky Diode Surface Mount 2-Pin SOD-128 STPS3H100AF

STMicroelectronics STPS3H100AF is a high-performance Schottky diode with a 100 V peak reverse voltage and 3 A maximum continuous forward current, packaged in a 2-pin SOD-128 surface mount device. It is engineered for robust thermal performance up to 175°C, offering excellent suitability for industrial and electronic applications demanding high efficiency and reliability.

This diode presents low forward voltage drop of 760 mV, minimizing power dissipation and enhancing circuit efficiency. The device also offers excellent guard band against thermal runaway, achieved by its low leakage current characteristics and high surge handling capability of 79 A peak non-repetitive forward surge current.

The compact SOD-128 package dimensions (4.8 mm length, 2.5 mm width, and 1.03 mm height) support high-frequency switched mode power supplies and board-level DC to DC converters, making it ideal for consumer electronics, industrial power management, and commercial applications.

The STPS3H100AF diode is specifically designed to maintain performance stability across a broad temperature range from -40°C to 175°C, ensuring consistent reliability in demanding environments.

This single Schottky diode is designed for surface mount applications. It exhibits negligible switching losses, boosting power efficiency. The diode maintains low leakage current, improving thermal management. Compact SOD-128 packaging allows high integration density in circuits.

Peak reverse current at 1.7 mA ensures minimal leakage at high voltage operation. It is not automotive certified but is suitable for various industrial electronics. These specifications make the STPS3H100AF a versatile component for electronics manufacturers dealing with power rectification, power supplies, and signal processing circuits.
