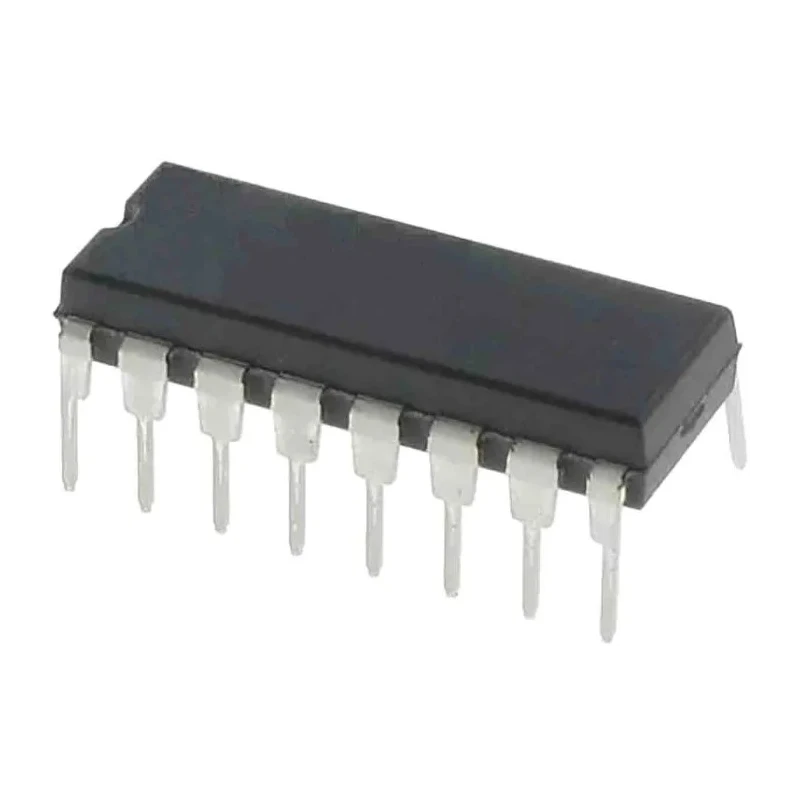

Renesas Electronics Multiplexer, 1 CMOS 0.33 Configuration, 16-Pin PDIP HI3-0508A-5Z

Renesas Electronics HI3-0508A-5Z is a high-performance analog multiplexer designed with a CMOS logic family and a 0.33 configuration, delivered in a 16-pin PDIP package optimized for surface mount applications.

The device features active overvoltage protection which allows analog input levels to significantly exceed the power supply voltage without damage or degradation of signal fidelity, ensuring robust performance even under fault conditions that destroy other multiplexers.

Key technical characteristics include a maximum supply voltage of 44V and a minimum operating voltage of 15V, with a maximum on-state resistance of 2kΩ, which minimizes signal loss and preserves integrity during switching operations.

The multiplexer provides break-before-make switching to prevent channel interaction, an access time of 500ns, and low power dissipation at 7.5mW, all contributing to its efficient functionality in analog signal routing applications.

With an operating temperature range from 0°C to 75°C, it is suitable for use in industrial, laboratory, and electronic manufacturing environments. The product fully complies with RoHS standards, supporting environmentally responsible design requirements.

CMOS logic technology enables low power consumption and high reliability. Active overvoltage protection prevents device damage during voltage spikes. Break-before-make switching ensures no channel overlap during transitions.

Robust operation with power dissipation limited to 7.5mW. Wide operating temperature range allows deployment in versatile environments. 16-pin PDIP package supports easy integration in through-hole PCB designs. RoHS compliance facilitates eco-friendly manufacturing and disposal.

Analog input range ±15V supports diverse signal levels. Maximum power supply rating of 44V accommodates higher voltage systems.

This multiplexer is ideal for use in electronic circuits requiring dependable analog switching such as signal routing, measurement systems, and automated test equipment in semiconductor and Electronics manufacturing, industrial control, laboratory instrumentation, and communication devices.
