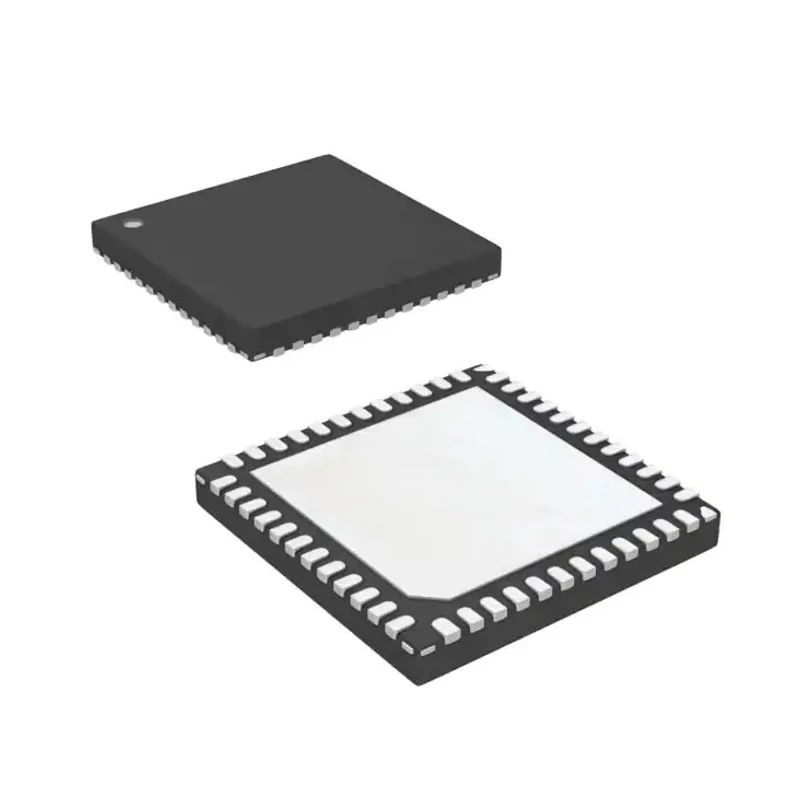

Renesas Electronics USB Controller 1-Channel 12 Mbps 3.3-3.6V USB 3.0 48-Pin QFN UPD720202K8-701-BAA-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 850μm |
| Length | 7mm |
| Model | UPD720202K8-701-BAA-A |
| Mount Type | Surface |
| Series | UPD720202 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | USB Host Controller IC |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB debugging capability on all super speed ports |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Maximum Data Rate | 12Mbps |
| Number of Transceivers | 1 |
| USB Specification | USB 3.0 |
| Supported Protocols | USB 3.0 |
Key Features
- Supports USB 3.0 and xHCI 1.0 specifications for high-speed interface applications.
- Offers USB debugging capability on all super speed ports for efficient development.
- Compliant with PCI Express base specification revision 2.0 for broad compatibility.
- Package footprint optimized for mobile computing devices such as laptops and notebooks.
- Operates between 0°C and 85°C, suitable for standard industrial environments.
- Supports USB legacy functions to enhance backward compatibility.
- Designed to reduce power consumption for efficient system performance.
- Surface mount type with a compact 7mm length and 850μm height package.
Product Description
Renesas Electronics UPD720202K8-701-BAA-A is a USB controller integrated circuit designed to support USB 3.0 and xHCI 1.0 standards, enabling 1-channel data transmission at a maximum rate of 12 Mbps. Operating with dual power supply voltages between 3.3 V and 3.6 V, it offers improved power efficiency and a compact footprint suitable for integration in mobile computing devices like laptops and notebooks.
The device provides robust USB debugging capabilities on all super speed ports and supports USB legacy functions, ensuring compatibility with existing USB host systems. Its surface mount 48-pin QFN package measures 7 mm in length and 850 μm in height, promoting space-efficient board layout designs.
The controller complies with PCI Express base specification revision 2.0 and supports latency tolerance reporting as per the PCI express specification, along with express card standard compliance for expanded connectivity options.
Designed to operate reliably within the industrial temperature range of 0°C to 85°C, this IC is focused on power savings, making it ideal for portable Electronics requiring USB 3.0 high-speed interfaces.
Supports USB 3.0 and xHCI 1.0 specifications with 1 transmission channel. Provides USB debugging on super speed ports and legacy function support. Conforms to PCI Express base specification revision 2.0 and express card standard.
Compact 48-pin QFN package optimized for space-saving designs. Operates with supply voltages from 3.3 V to 3.6 V to reduce power consumption. Temperature range supports 0°C to 85°C for standard industrial applications. Ideal for integration into laptops, notebooks, and mobile devices.
Surface mount technology for efficient PCB assembly.
This USB controller is well suited for electronic, semiconductor, and computer hardware manufacturing applications. Its compact size and power efficiency enable enhanced design flexibility in modern computing systems.
Explore the extensive selection of USB interface ICs and semiconductor controllers in EnvMart for complementary solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of the UPD720202K8-701-BAA-A USB controller is 12 Mbps.
This USB controller operates reliably within a temperature range of 0°C to 85°C.
It supports supply voltages between 3.3 V and 3.6 V.
The controller is packaged in a 48-pin QFN (Quad Flat No-lead) format.
Yes, it offers USB debugging capability on all super speed ports.
It complies with USB 3.0 and xHCI 1.0 specifications, as well as PCI Express base specification revision 2.0.
The height of this model is 850 μm.
The length of this USB controller is 7 mm.
It is optimized for integration into mobile computing devices such as laptops and notebooks.
This model features 1 transmission channel.
It supports USB 3.0 protocols.
The mount type for this model is surface mount.
