Renesas Electronics DC Input Photocoupler Surface Mount 8-Pin Gull Wing PS8502L3-AX

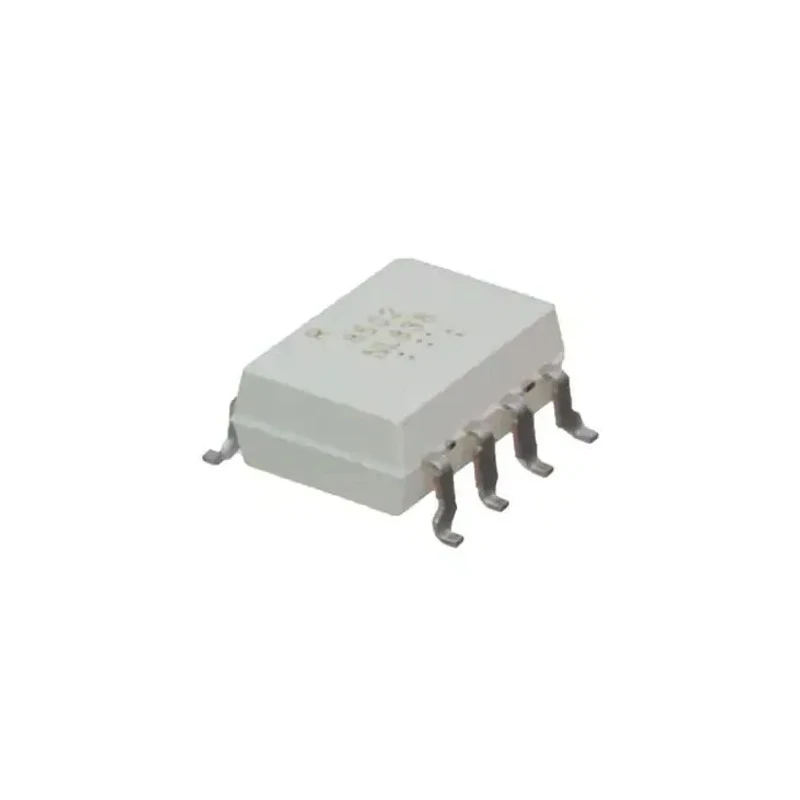

Renesas Electronics PS8502L3-AX DC input photocoupler is a surface mount device featuring an 8-pin gull wing package designed for high-speed electronic signal isolation. This component integrates a GaAlAs LED on the input side and a PN photodiode paired with a high-speed amplifier transistor output on a single chip, ensuring compactness and reliability.

Its high isolation voltage of 5000 Vrms provides robust electrical isolation between input and output, crucial for protecting sensitive circuits in industrial, laboratory, and manufacturing environments. The device supports a maximum forward voltage of 2.2 V and can handle maximum input current up to 400 mA, accommodating a wide range of input signals.

Operating temperature ranges from -55°C to 100°C facilitate use in extreme conditions, including automotive and industrial control systems where durability is vital. The component is built to meet UL and CSA safety standards, confirming its compliance with industry certifications.

The low-profile surface mount gull wing package is optimized for automated assembly lines, reducing manufacturing time and improving production efficiency. High common mode transient immunity and rapid response features enhance the accuracy and reliability of signal transmission across electrically noisy environments.

High-speed optical isolation with integrated photodiode and amplifier transistor. Compact surface mount 8-pin gull wing design for efficient assembly. High isolation voltage of 5000 Vrms protecting sensitive electronics.

Wide operating temperature range suitable for harsh industrial applications. Compliance with UL and CSA for assured safety and quality. Maximum forward voltage of 2.2 V and input current up to 400 mA. Minimum current transfer ratio of 15% for effective switching performance.

This photocoupler is ideal for industrial automation, power management circuits, instrumentation, and signal isolation in HVAC, manufacturing, and electronic equipment. It enhances safety and operational integrity by electrically isolating different circuit sections while maintaining high-speed signal transmission.

Explore more about Renesas Electronics' range of high-quality optocouplers and photocouplers on EnvMart for reliable components tailored to modern electronic applications.
