Renesas Electronics PS9513-AX DC Input Photocoupler Through Hole 8-Pin DIP PS9513-AX

Free Delivery in India | Lowest Global Shipping Charges

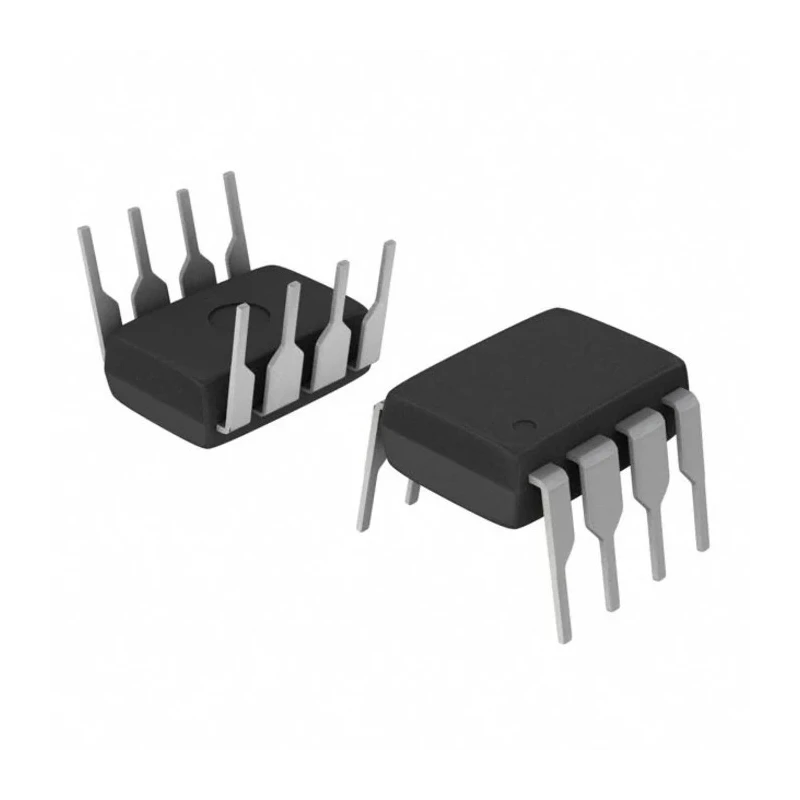

Renesas Electronics PS9513-AX DC Input Photocoupler Through Hole 8-Pin DIP PS9513-AX

Name: Renesas Electronics PS9513-AX DC Input Photocoupler Through Hole 8-Pin DIP PS9513-AX
Brand: Renesas Electronics
SKU: 413195
Price: 5.24 USD
Availability: InStock



Category Electronics Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Model	PS9513-AX
Packaging	Tape & Reel
Mount Type	Through Hole
Output type	Photodiode
Series	PS
Maximum Operating Temperature	100°C
Package Type	DIP
Minimum Operating Temperature	-40°C
Maximum input current	5mA
Number Of Channels	1
Standards/Approvals	UL
Maximum Forward Voltage	2.1V
Number of Pins	8
Input Current Type	DC
Typical Rise Time	4μs
Maximum Current Transfer Ratio	110%
Minimum Current Transfer Ratio	44%
Isolation Voltage	1130V

Key Features

Features a photodiode output type for accurate signal transmission.
Designed with AlGaAs LED input for efficient optical coupling.
Supports a maximum forward voltage of 2.1V and maximum input current of 5mA.
Provides isolation voltage up to 1130V for safety and noise reduction.
Operates reliably between -40°C to 100°C temperature range.
Exhibits fast typical rise and fall times of 4μs for high-speed applications.
Suitable for IPM drive applications requiring low pulse width distortion.
Packaged in tape & reel format for automated assembly.

Product Description

Renesas Electronics PS9513-AX DC Input Photocoupler is an optically coupled isolator combining an AlGaAs LED input side with a photodiode and signal processing circuit on one chip. This device is designed for high common mode transient immunity and low pulse width distortion, making it ideal for industrial and electronic applications such as intelligent power module (IPM) drives.

The 8-pin DIP through hole package simplifies integration into circuit boards, while the photodiode output offers precision in signal transmission. With a maximum forward voltage of 2.1V and a maximum input current of 5mA, it provides robust performance with low power consumption. The isolation voltage of 1130V ensures user safety and reduces noise interference, suitable for demanding environments.

Operating over a wide temperature range from -40°C to 100°C, the PS9513-AX supports harsh industrial conditions. Its fast typical rise and fall times of 4μs enable responsive switching and signal integrity. The device is packaged in tape & reel format facilitating automated assembly for volume production.

This photocoupler is a Pb-free product, compliant with UL standards, ensuring environmental friendliness and certification quality. It is widely used in industrial automation, power management, electronic manufacturing, and other precision electronics sectors.

Photodiode output type for accurate isolation and signal transfer. High isolation voltage up to 1130V for effective noise immunity. Fast response times with 4μs typical rise and fall times. Wide operating temperature range from -40°C to 100°C for diverse applications.

Packed in tape & reel for efficient automated assembly. 8-pin DIP package suitable for through hole mounting. Low input forward voltage (2.1V) and input current (5mA) parameters. Designed specifically for IPM drive and industrial control uses.

UL approved for assured safety and quality standards. Lead-free construction promoting environmental compliance.

Explore the Electronics Components category at EnvMart for advanced optocouplers and photodetectors including this Renesas Electronics PS9513-AX photocoupler designed for precision and reliability.
