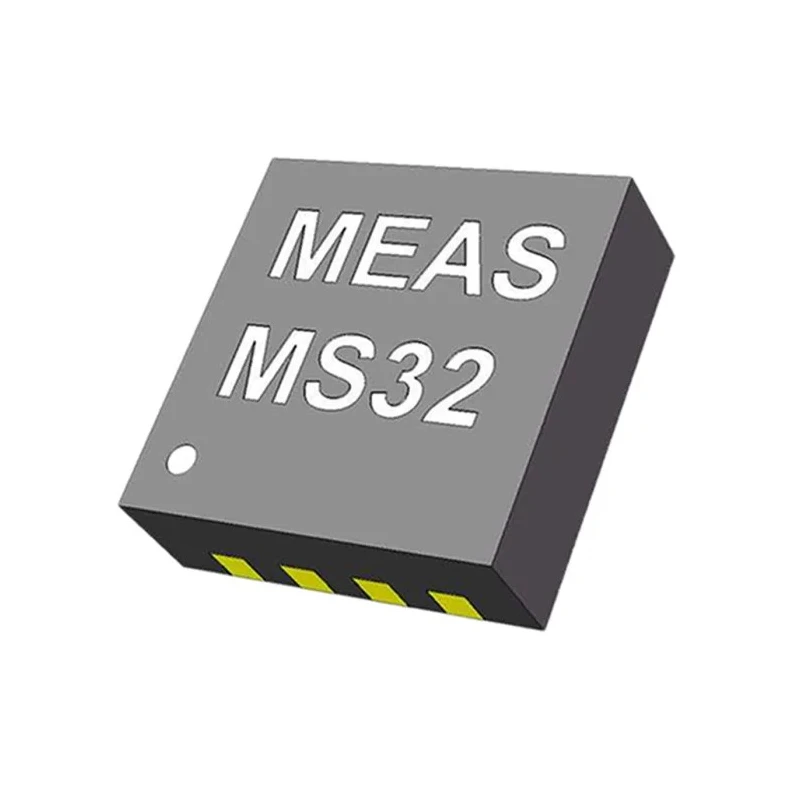

TE Connectivity 2 Axis Surface Inclinometer Sensor Solid State Magnetoresistance 5V-30V TDFN 8-Pin G-MRCO-017
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 750μm |
| Length | 2.5mm |
| Model | G-MRCO-017 |
| SENSITIVITY | 3kV |
| Technology | Solid State Magnetoresistance |
| Sensor Type | Inclinometer Sensors |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | MS32 |
| Maximum Operating Temperature | 125°C |
| Package Type | TDFN |
| Minimum Operating Temperature | -45°C |
| Number of axis | 2 |
| Standards/Approvals | IPC/JEDEC J-STD-020D |
| Pin Count | 8 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| Magnetic Type | Unipolar |
Key Features
- Utilizes solid state magnetoresistance technology for linear field response.
- Features a unipolar magnetic type with high sensitivity and low hysteresis.
- Operates within a temperature range from -45°C to 125°C.
- Compact TDFN package with 8 pins and dimensions 2.5mm x 2.5mm x 750µm height.
- Suitable for surface mounting with a 2-axis sensing capability.
- Low power consumption due to high bridge resistance construction.
- Meets IPC/JEDEC J-STD-020D standards ensuring quality and reliability.
- Applications include industrial, automotive, consumer electronics, contactless position detection, windows and doors, pneumatic cylinders, and cover position sensing in notebooks.
Product Description
TE Connectivity G-MRCO-017 is a 2 axis surface inclinometer sensor designed with solid state magnetoresistance technology, capable of operating between 5V and 30V supply voltage. It comes in a compact TDFN 8-pin package measuring 2.5mm by 2.5mm with a height of 750µm, making it ideal for space-constrained applications requiring precise inclination measurement.
Constructed from four permalloy resistors forming a wheatstone bridge, this sensor achieves high bridge resistance which results in low power consumption. The temperature compensated switching point enhances stability across a wide operating temperature range from -45°C to 125°C. Its unipolar magnetic type and linear field response provide accurate inclination sensing with low hysteresis.
This sensor is well-suited for surface mounting in industrial, automotive, and consumer devices. Common applications include contactless position detection on windows, doors, small stroke pneumatic cylinders, and notebooks where cover position sensing is required.
Compliance with IPC/JEDEC J-STD-020D standards ensures high reliability in demanding environments. The 8-pin TDFN package facilitates integration into modern PCB layouts and contributes to the miniaturization of electronic systems.
Utilizes solid state magnetoresistance technology for linear field response. Features a unipolar magnetic type with high sensitivity and low hysteresis. Wide operating temperature range from -45°C to 125°C. Compact TDFN 8-pin package with 2.5mm by 2.5mm footprint and 750µm height.
Designed for surface mount applications requiring two-axis inclination sensing. Low power consumption due to high bridge resistance. Meets IPC/JEDEC J-STD-020D quality standards. Ideal for industrial, automotive, and consumer electronics use cases.
Explore additional sensors and components in the Electronics & Electricals category at EnvMart to meet your design and manufacturing needs.
Explore more products in our Inclination Sensor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 5V to 30V.
The TDFN package measures 2.5mm in length and width, with a height of 750μm.
It operates effectively within a temperature range from -45°C to 125°C.
It utilizes solid state magnetoresistance technology for linear field response.
This unit is designed to measure inclination in two axes.
The sensitivity of this model is rated at 3kV.
It is designed for surface mounting applications.
It meets IPC/JEDEC J-STD-020D standards, ensuring quality and reliability.
This model features an 8-pin configuration.
It is suitable for industrial, automotive, and consumer electronics applications, including contactless position detection.
It features a unipolar magnetic type with high sensitivity and low hysteresis.
The height of this model is 750μm.
