Pepperl + Fuchs 1 Axis Inclination Sensor IP68 IP69K 10, 30V dc 360° Measurement Range INX360D-F99-I2E2-V15

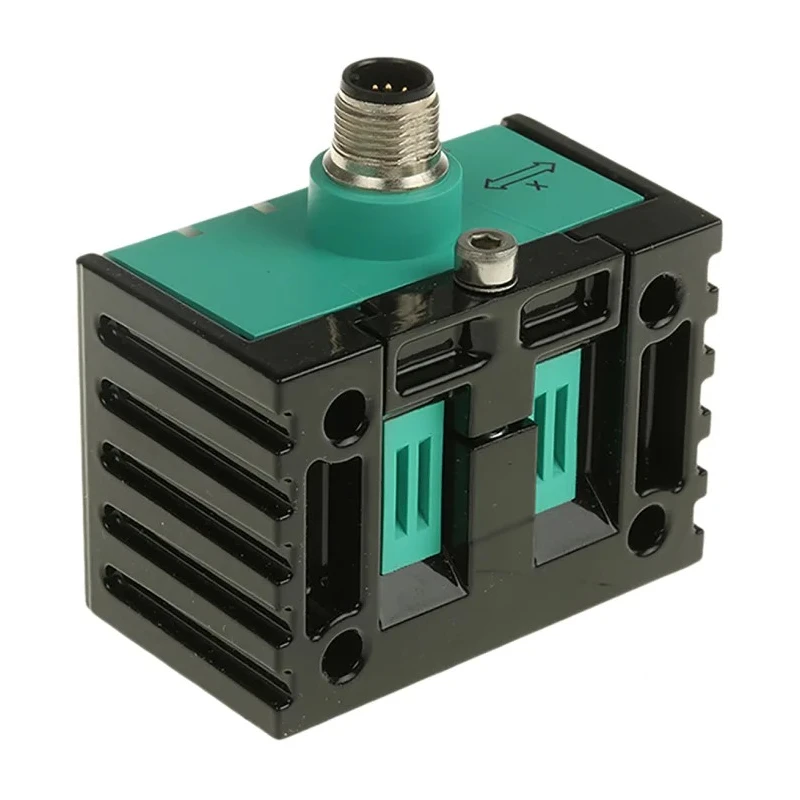

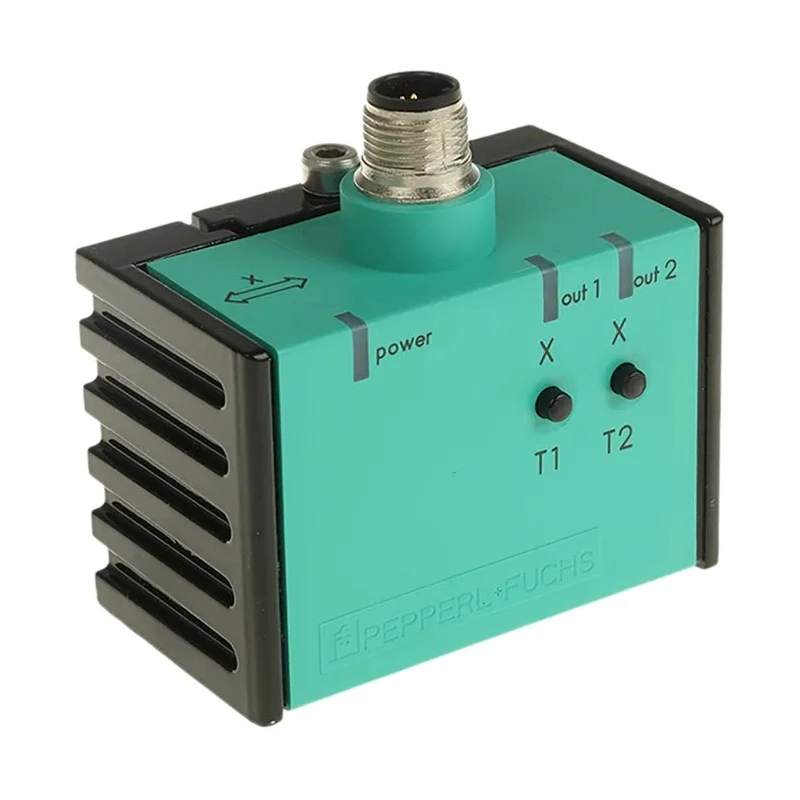

Pepperl + Fuchs INX360D-F99-I2E2-V15 1 Axis Inclination Sensor features a polyamide housing with compact dimensions of 65 x 37 x 62.5 mm and a weight of 240 g, designed to measure angles with a 360° range and ±0.5° accuracy. This sensor operates on a 10 to 30 V dc supply voltage and provides a robust IP68 and IP69K protection rating suitable for harsh environmental conditions.

The sensor's design incorporates two independent axes detected separately and provides a standardized 4 mA to 20 mA or 0 V to 5 V analog output. Programmable switching and analog ranges are configurable via teach-in buttons, enabling customizable limit angle monitoring through switch outputs. Its wear-free, target-less operation guarantees reliable and low-maintenance performance.

Built for industrial automation, this Inclination Sensor excels in applications such as commercial vehicle dynamics, renewable energy sectors including wind turbines and solar panels, and other complex angle measurement tasks requiring high accuracy and durability. The sensor operates effectively within an ambient temperature range of - 40 to +85 °C and is approved for use on public roads (e1 approval).

Robust polyamide housing with IP68 and IP69K ratings. Compact size and lightweight design for versatile installation. 360° measurement range with ±0.5° accuracy. Programmable analog and switch outputs for flexible monitoring.

Wear-free technology requiring no additional targets. Suitable for harsh outdoor and industrial environments. Ideal for automation, commercial vehicles, wind energy, and solar power applications. Operates over a broad temperature range from - 40 to +85 °C.
