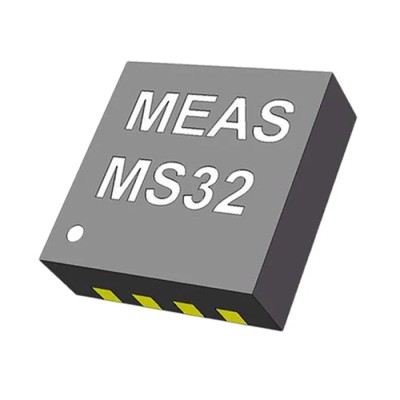

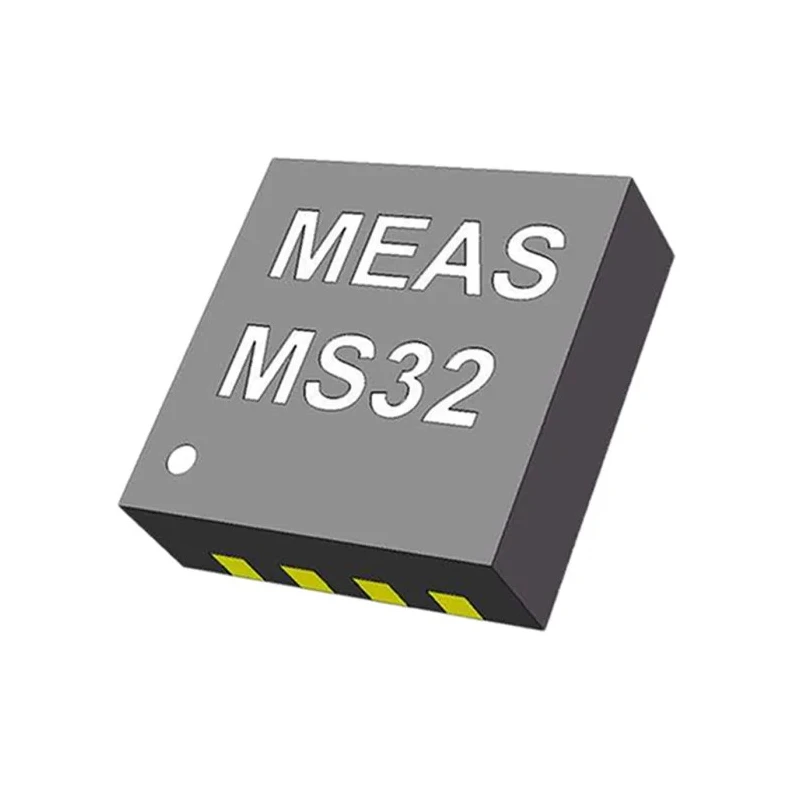

TE Connectivity 2 Axis Surface Inclinometer Solid State Magnetoresistance Sensor 5V to 30V TDFN 8-Pin G-MRCO-017
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 750μm |
| Length | 2.5mm |
| Model | G-MRCO-017 |
| SENSITIVITY | 3kV |
| Technology | Solid State Magnetoresistance |
| Sensor Type | Inclinometer Sensors |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | MS32 |
| Maximum Operating Temperature | 125°C |
| Package Type | TDFN |
| Minimum Operating Temperature | -45°C |
| Number of axis | 2 |
| Standards/Approvals | IPC/JEDEC J-STD-020D |
| Pin Count | 8 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| Magnetic Type | Unipolar |
Key Features
- This sensor features a TDFN 8-pin package design suitable for surface mounting.
- It provides high sensitivity of 3 kV with low hysteresis and a unipolar magnetic type output.
- Operates reliably over a temperature range from -45°C to 125°C, making it suitable for demanding environments.
- The device dimensions are compact, measuring 2.5 mm in length and width with a height of 750 μm.
- Its solid-state design ensures low power consumption and linear field response for accurate angle measurements.
- Ideal for industrial, automotive, consumer electronics, and contactless position detection applications.
- Meets IPC/JEDEC J-STD-020D standards for quality and reliability.
Product Description
TE Connectivity G-MRCO-017 is a high precision 2 axis surface inclinometer sensor based on solid state magnetoresistance technology. It operates with a supply voltage from 5 V to 30 V and is housed in a compact TDFN 8-pin package, measuring 2.5 mm by 2.5 mm with a height of 750 μm.
This sensor features a unipolar magnetic type with high sensitivity of 3 kV and low hysteresis, enabling precise and reliable angle measurements across two axes. Its temperature rated range from -45°C to 125°C allows dependable operation in harsh and industrial environments.
Constructed using four permalloy resistors configured in a wheatstone bridge, it achieves low power consumption and a temperature-compensated switching point. The device complies with IPC/JEDEC J-STD-020D standards, ensuring durability and quality for demanding applications.
Typical applications include industrial automation, automotive systems, consumer electronics, contactless position sensing for windows, doors, pneumatic cylinders, and notebook lid position detection.
This sensor provides a linear field response and unipolar signal output for simplified integration. Its solid state design ensures longevity and stable performance with low power usage. Compact TDFN package facilitates easy surface mounting on printed circuit boards.
Wide operating temperature range suits varied environmental conditions in industrial and automotive sectors. Industry standard packaging and pin configuration support automated manufacturing processes. The inclinometer is part of TE Connectivity's MS32 series, trusted for high accuracy in motion detection.
Designed with automotive-grade standards, suitable for diverse sensor applications.
This TE Connectivity sensor is ideal for engineers and designers requiring precise angular measurement solutions in industrial, automotive, manufacturing, and consumer markets. Browse the Electronics & Electricals categories at EnvMart for a wide range of sensor ICs and components.
Explore more products in our Inclination Sensor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a high sensitivity rating of 3 kV, enabling precise angle measurements across two axes.
It operates reliably over a temperature range from -45°C to 125°C, making it suitable for demanding environments.
The sensor measures 2.5 mm in length and width, with a height of 750 μm, making it compact for easy integration.
It provides a unipolar magnetic type output, which simplifies integration into various systems.
This inclinometer operates with a supply voltage ranging from 5 V to 30 V.
The G-MRCO-017 is designed for surface mounting, facilitating easy installation on printed circuit boards.
It meets IPC/JEDEC J-STD-020D standards, ensuring quality and reliability for demanding applications.
Typical applications include industrial automation, automotive systems, consumer electronics, and contactless position sensing.
This model is a 2-axis surface inclinometer, allowing for angle measurements in two dimensions.
It is housed in a compact TDFN 8-pin package, which is suitable for surface mounting.
The sensor is based on solid-state magnetoresistance technology, providing accurate angle measurements with low power consumption.
