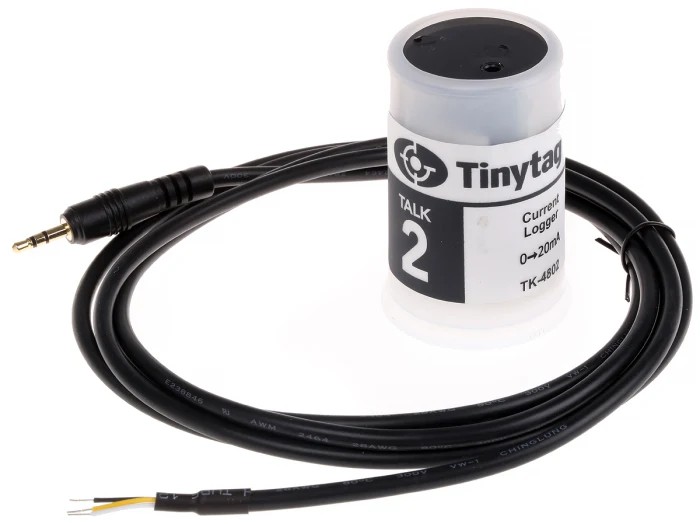

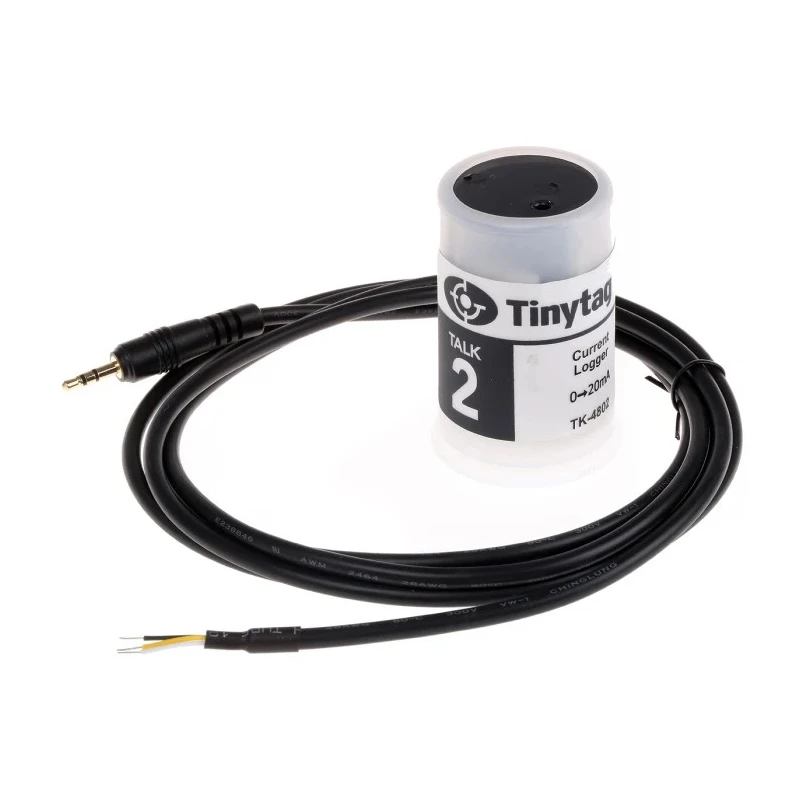

Gemini Current Data Logger Talk 2 TK4802, USB, Serial Interface, ±0.2% Accuracy, IP30, Battery Powered TK4802
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Resolution | 1 μA |
| Accuracy | ±0.2 % |
| Brand | Gemini |
| Battery Life | 2year |
| Battery type | AA |
| Height | 54mm |
| Length | 54mm |
| Model | TK4802 |
| IP Rating | IP30 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB cable to a PC |
| Number Of Channels | 1 |
| Measurement Parameters | Current |
| Interface Type | USB, Serial |
| Standards/Approvals | CE |
| Number of Readings per Channel | 16000 |
| Service pack is available separately to maintain the unit | contains replacement battery, desiccant pack and a service instruction sheet |
Key Features
- The data logger supports a single channel with measurement parameters for current.
- It features ±0.2% accuracy and 1 μA resolution for precise data acquisition.
- IP30 rated enclosure protects the logger in typical indoor environments.
- The device operates from a user-replaceable AA battery with up to 2 years of life and low battery monitoring.
- It stores up to 16,000 readings per channel with programmable alarms and multiple stop options.
- Compatible with Tinytag Explorer software for fast data download via USB or serial cable.
- Compact 54mm × 54mm size makes it convenient for environmental, laboratory, and building condition monitoring.
- Designed to operate reliably within a temperature range of -40°C to 85°C.
Product Description
The Gemini TK4802 current data logger Talk 2 TK4802 is a compact and lightweight instrument designed for accurate current monitoring and data logging in industrial, laboratory, environmental, and HVAC applications. Featuring a user-replaceable AA battery lasting up to 2 years and low battery monitoring, this logger enables long-term deployments with ease.
It supports a single measurement channel with an accuracy of ±0.2% and resolves down to 1 μA, ensuring high precision data capture. The logger's IP30 rating makes it suitable for protected indoor environments, while the operating temperature range of -40°C to 85°C allows usage in diverse conditions.
The TK4802 provides up to 16,000 readings per channel and includes programmable alarms with options to stop when full, wrap around, or stop after a specific number of readings. Data is easily offloaded to a PC using USB or serial interfaces, compatible with Tinytag Explorer software for efficient analysis.
This data logger is housed in a discrete 35mm film canister form factor, measuring 54mm height and length, making it convenient for discreet installations in laboratories, universities, refrigeration systems, and building condition monitoring. A separate service pack is available to maintain the unit, containing a replacement battery, desiccant pack, and service instruction sheet.
The data logger supports a single channel with measurement parameters for current. It features ±0.2% accuracy and 1 μA resolution for precise data acquisition. IP30 rated enclosure protects the logger in typical indoor environments.
User-replaceable AA battery provides up to 2 years of operation with low battery monitoring. Capable of storing up to 16,000 readings per channel with programmable alarms. Fast data offload via USB or serial cable compatible with Tinytag Explorer software.
Compact size and robust design for use in environmental research, laboratories, and building monitoring.
This Gemini data logger TK4802 is ideally suited for industrial, laboratory, HVAC, agricultural, and commercial monitoring applications requiring precise current measurement and logging capabilities. Explore more data acquisition and monitoring instruments in EnvMart's Data Logger category.
Explore more products in our Data Loggers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TK4802 data logger features an accuracy of ±0.2%.
It can store up to 16,000 readings per channel.
The resolution for current measurements is 1 μA.
The operating temperature range is from -40°C to 85°C.
The TK4802 supports USB and serial interfaces for data transfer.
The IP rating of this model is IP30, making it suitable for protected indoor environments.
It is suitable for industrial, laboratory, HVAC, agricultural, and commercial monitoring applications requiring precise current measurement.
The dimensions of the TK4802 are 54mm in height and 54mm in length.
Yes, a separate service pack is available that contains a replacement battery, desiccant pack, and service instruction sheet.
It includes programmable alarms with options to stop when full, wrap around, or stop after a specific number of readings.
It is compatible with Tinytag Explorer software for fast data download via USB or serial cable.
