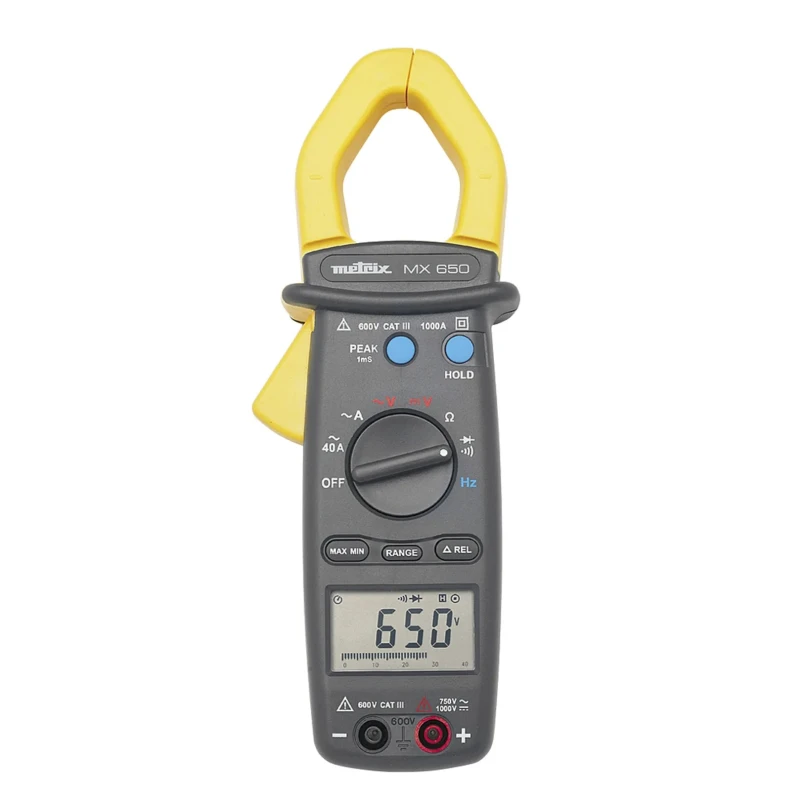

Metrix Clamp Meter with 1 kA AC/DC Current, 1000 V DC, 600 V AC, CAT III Safety MX0650-Z

Free Delivery in India | Lowest Global Shipping Charges

Metrix Clamp Meter with 1 kA AC/DC Current, 1000 V DC, 600 V AC, CAT III Safety MX0650-Z

Name: Metrix Clamp Meter with 1 kA AC/DC Current, 1000 V DC, 600 V AC, CAT III Safety MX0650-Z
Brand: Metrix
SKU: 323598
Price: 482.29 USD
Availability: InStock



Category Clamp Meter Brand Metrix Condition New

Specifications

Country of Origin	India
Display Type	LCD
Brand	Metrix
Battery Life	180h
Height	43mm
Length	246mm
Model	MX0650-Z
Gross Weight	400g
Width	93mm
Maximum Operating Temperature	40°C
AC Voltage Resolution	100mV ac
Minimum Operating Temperature	0°C
DC Voltage Resolution	100 mV dc
Resistance Measurement Accuracy	±1% + 2 Digits
AC Current Accuracy	±1.9 % rdg + 5 Digits
Resistance Resolution	100mΩ
DC Current Resolution	10mA
Maximum Jaw Opening	36mm
Standards/Approvals	RoHS
Functions Measured	Resistance, DC Voltage, Frequency, AC Current, AC Voltage
Maximum Resistance Measurement	4kΩ
Maximum DC Voltage Measurement	1000V dc
Maximum DC Current Measurement	1kA
Maximum AC Voltage Measurement	600V ac
Safety Category Level	CAT III
Safety Category Voltage	600V
Maximum Conductor Size	36mm
Clamp Meter Type	AC Current Clamp Meter

Key Features

This clamp meter supports resistance, frequency, AC and DC voltage measurements.
Maximum jaw opening of 36 mm allows easy clamping on conductors.
Equipped with a non-contact voltage detector for enhanced safety.
Features a large LCD display with a 4000-count resolution for clear readings.
Battery life lasts approximately 180 hours for extended use.
Compact design with dimensions 246 mm length, 93 mm width, and 43 mm height.
Operates within a temperature range of 0°C to 40°C suitable for varied environments.
AC current accuracy of ±1.9% reading plus 5 digits ensures reliable measurements.

Product Description

Metrix MX0650-Z Clamp Meter is a highly reliable instrument designed for electrical testing with a maximum DC current measurement capacity of 1 kA and AC voltage measurement up to 600 V AC. It supports precise measurements of resistance, DC voltage, frequency, and AC current, making it versatile for industrial, laboratory, construction, HVAC, and manufacturing applications.

The clamp meter features a 36 mm maximum jaw opening enabling measurements on various conductor sizes. Its non-contact voltage detector enhances operator safety by enabling voltage detection without direct contact. The large LCD provides a clear 4000 count display for easy data reading.

Operating temperature ranges from 0°C to 40°C, suitable for both indoor and light industrial environments. The device complies with CAT III safety standards rated for 600 V, ensuring safe usage in demanding electrical environments. Battery life extends up to 180 hours, reducing downtime and maintenance.

The precision of this meter is maintained with an AC current accuracy of ±1.9% reading plus 5 digits and resistance measurement accuracy of ±1% plus 2 digits. These accuracies support detailed diagnostics and troubleshooting in electrical testing scenarios.

Constructed with RoHS compliance, this clamp meter is environmentally friendly and meets international safety norms IEC-1010 Class II. It is compact and lightweight, enhancing portability with overall dimensions of 246 mm length, 93 mm width, and 43 mm height, weighing approximately 400 grams.

This meter is excellent for professionals needing trusted electrical measurement tools in industrial or commercial settings. It covers a broad range of applications including power distribution, maintenance, and field service.

Durability and safety certifications support long-term reliable performance. Functionalities include non-contact voltage detection and HOLD function for operational convenience. Essential tool for electricians and technicians requiring accurate and safe measurement instruments.

Explore EnvMart's complete range of Clamp Meters and electrical test instruments for all your industry requirements.
