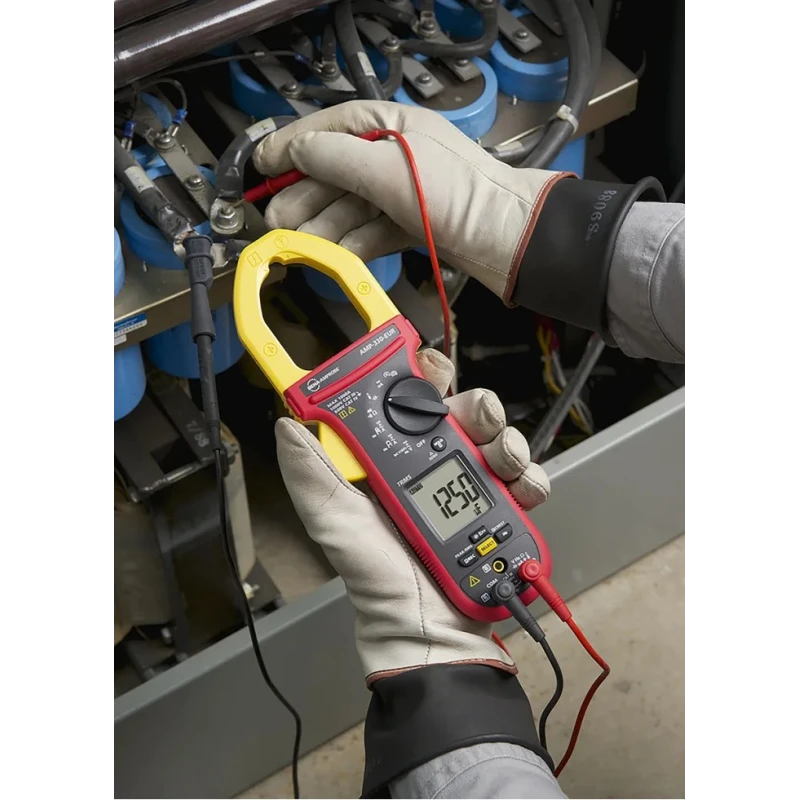

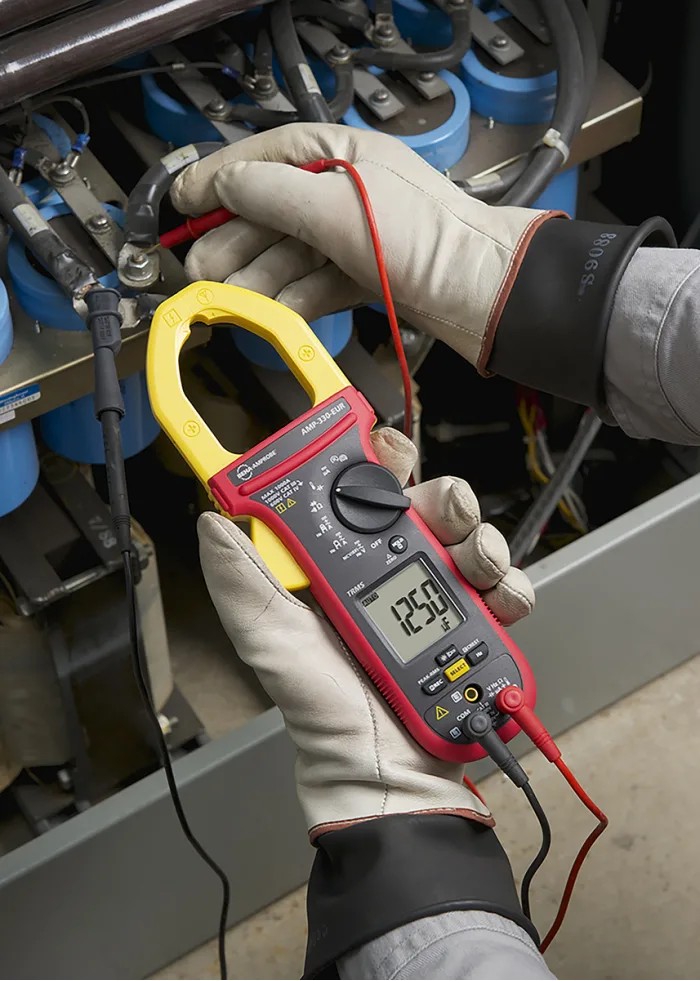

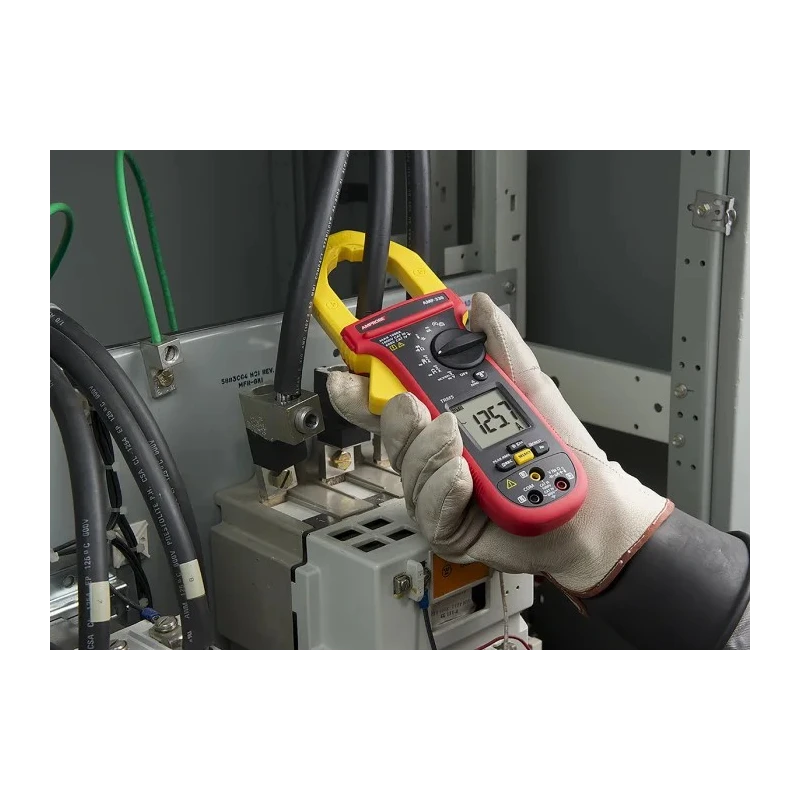

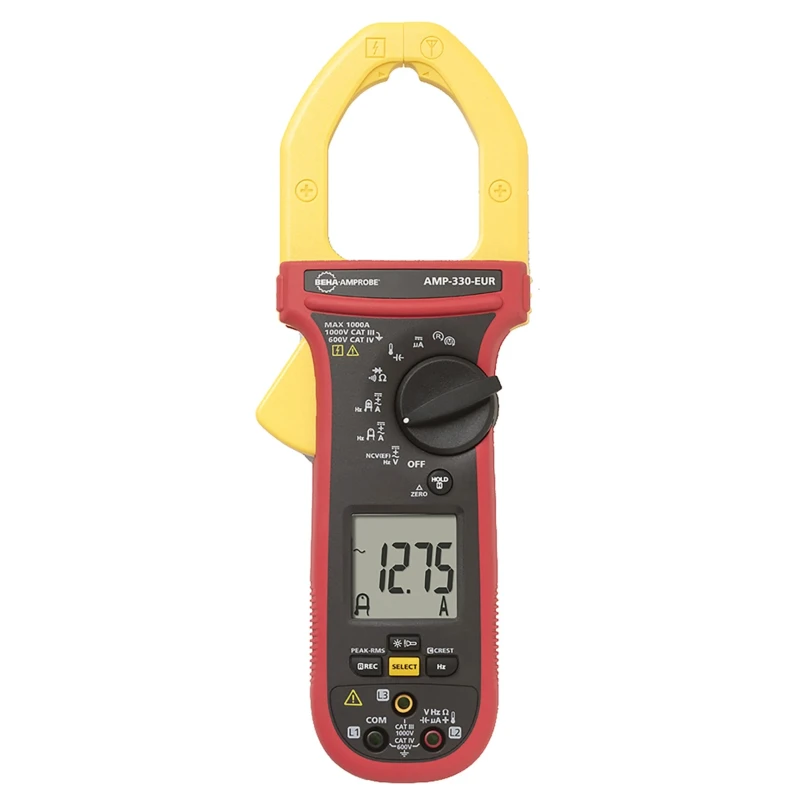

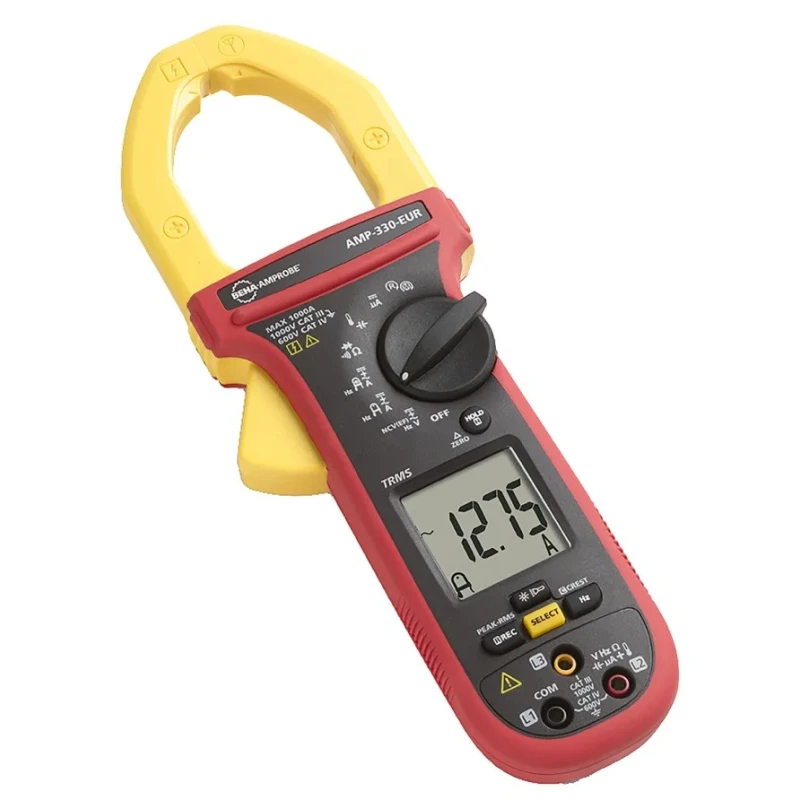

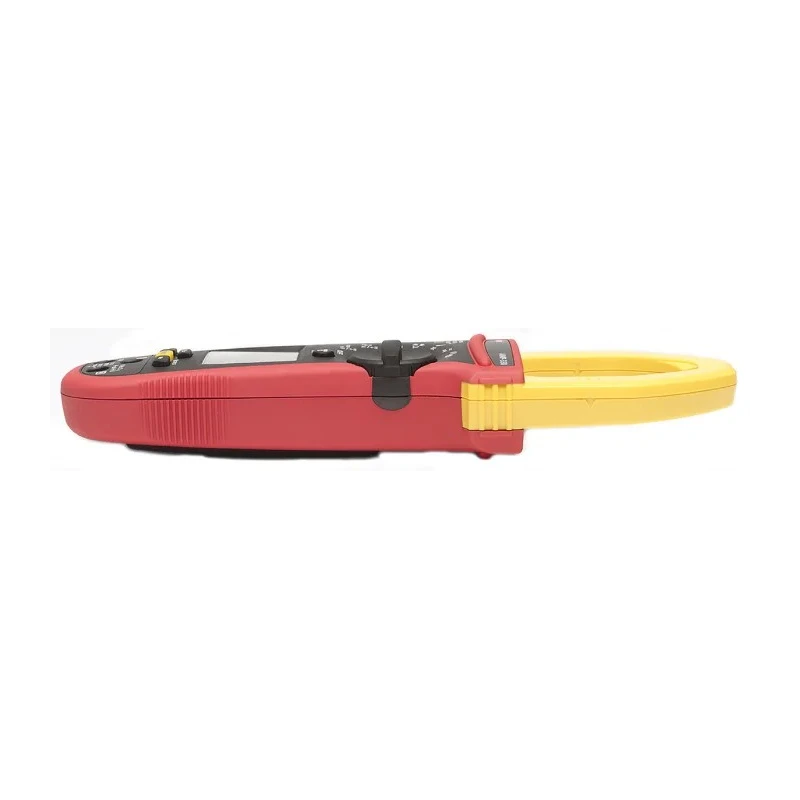

Beha-Amprobe Clamp Meter AC/DC 1000 A Current, 1000 V Voltage, 51 mm Jaw Opening AMP-330-EUR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD |
| Brand | Beha-Amprobe |
| Battery type | AA |
| Height | 44mm |
| Length | 258mm |
| Model | AMP-330-EUR |
| Gross Weight | 420g |
| Width | 94mm |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| DC Current Accuracy | ±1.8 % rdg + 5 Digits |
| Resistance Measurement Accuracy | ±1 % + 5LSD |
| AC Current Accuracy | ±2.2 % + 5LSD |
| Maximum Jaw Opening | 51mm |
| Standards/Approvals | CE |
| Maximum Temperature Measurement | 400°C |
| Functions Measured | Temperature, DC Current, Resistance, AC Voltage, DC Voltage, AC Current |
| Maximum Resistance Measurement | 60kΩ |
| Maximum AC Current Measurement | 1000A ac |
| Maximum DC Voltage Measurement | 1000V dc |
| Maximum DC Current Measurement | 1000A dc |
| Maximum AC Voltage Measurement | 1000V ac |
| Safety Category Level | CAT IV, CAT III |
| Safety Category Voltage | 600, 1V |
| Maximum Conductor Size | 51mm |
| Clamp Meter Type | AC/DC Clamp Meter |
Key Features
- Provides true-RMS readings for accurate measurement on noisy and distorted waveforms.
- Features non-contact voltage detection for safety and convenience.
- 51 mm maximum jaw opening to accommodate large conductors.
- Measures AC and DC current up to 1000 A with high accuracy.
- Measures AC and DC voltage up to 1000 V with safety ratings CAT IV and CAT III.
- Includes temperature measurement capability using Type-K input for HVAC tasks.
- Battery-operated with AA batteries suitable for field use up to 50°C.
- Equipped with backlit LCD for visibility in low light conditions.
Product Description
Beha-Amprobe AMP-330-EUR Clamp Meter is a professional AC/DC clamp meter designed for industrial motor maintenance, HVAC diagnostics, and electrical testing. It supports current measurements up to 1000 A DC and AC, and voltage measurements up to 1000 V DC and AC, making it suitable for high-energy industrial environments. The clamp meter is equipped with a 51 mm jaw opening to handle large conductors and features true-RMS sensing to provide accurate readings in noisy electrical systems with distorted waveforms.
The device includes various measurement functions such as temperature measurement via Type-K input, resistance, and non-contact voltage detection. It offers safety category ratings CAT IV 600 V and CAT III 1000 V for use in harsh industrial and commercial electrical systems. Its backlit LCD display enhances readability in dim lighting, and the instrument runs on AA batteries for extended field operation from -10°C to 50°C.
This clamp meter is ideal for diagnosing industrial motor start-up currents, phase rotation, and sequencing checks, as well as capacitance tests on start and run capacitors. It is also suitable for flame sensor microamp verification and measuring VFD-driven motor current with a low-pass filter to accurately read distorted signals.
Constructed for durability and ease of use, the AMP-330-EUR weighs just 420 grams with compact dimensions (258 mm length, 94 mm width, and 44 mm height). It complies with CE safety and quality standards and originates from Taiwan, Province Of China.
True-RMS sensing provides precise readings under noisy conditions. Non-contact voltage detector enhances user safety. Large 51 mm jaw opening fits various conductor sizes. Measures wide range of functions: current, voltage, temperature, and resistance.
Rated for CAT IV 600 V and CAT III 1000 V safety standards. Battery powered with readily available AA cells. Backlit LCD improves visibility in all lighting conditions. Compact and lightweight design for portability. CE certified ensuring compliance with industry standards.
Ideal for industrial, HVAC, electrical maintenance, and manufacturing applications. Explore more professional Clamp Meters and electrical test instruments in the Measuring & Testing Instruments category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure AC and DC current up to 1000 A.
It measures AC and DC voltage up to 1000 V.
The accuracy for AC current measurements is ±2.2 % + 5 LSD.
It can measure temperature, DC current, resistance, AC voltage, DC voltage, and AC current.
It operates within a temperature range of -10°C to 50°C.
It features an LCD display, which is backlit for improved visibility in low light conditions.
This clamp meter is powered by AA batteries, suitable for field use.
It is rated for safety categories CAT IV 600 V and CAT III 1000 V.
It can measure resistance up to 60 kΩ with an accuracy of ±1 % + 5 LSD.
The clamp meter is manufactured in Taiwan, Province Of China.
