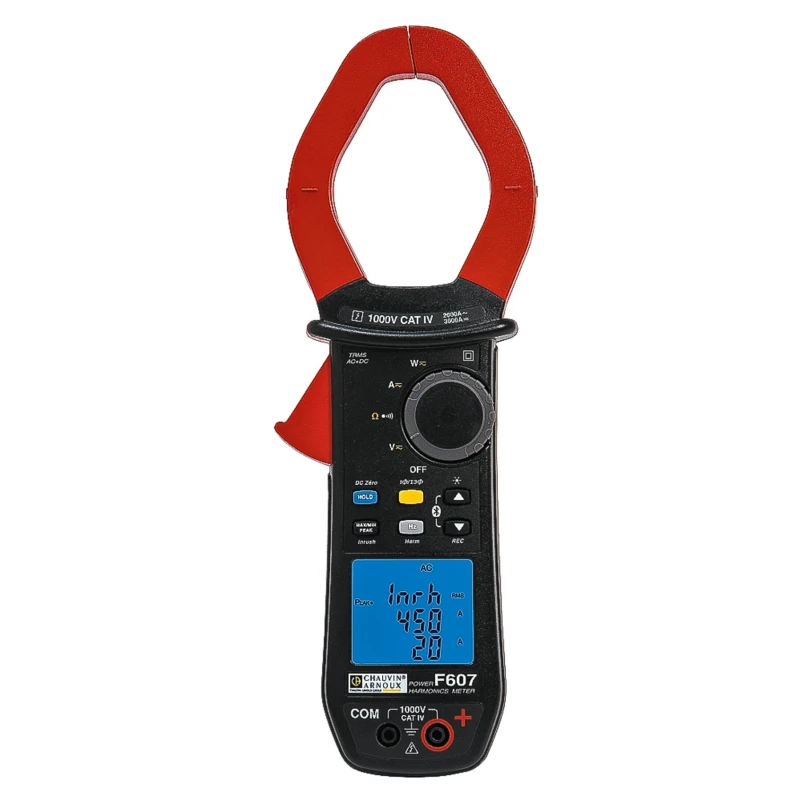

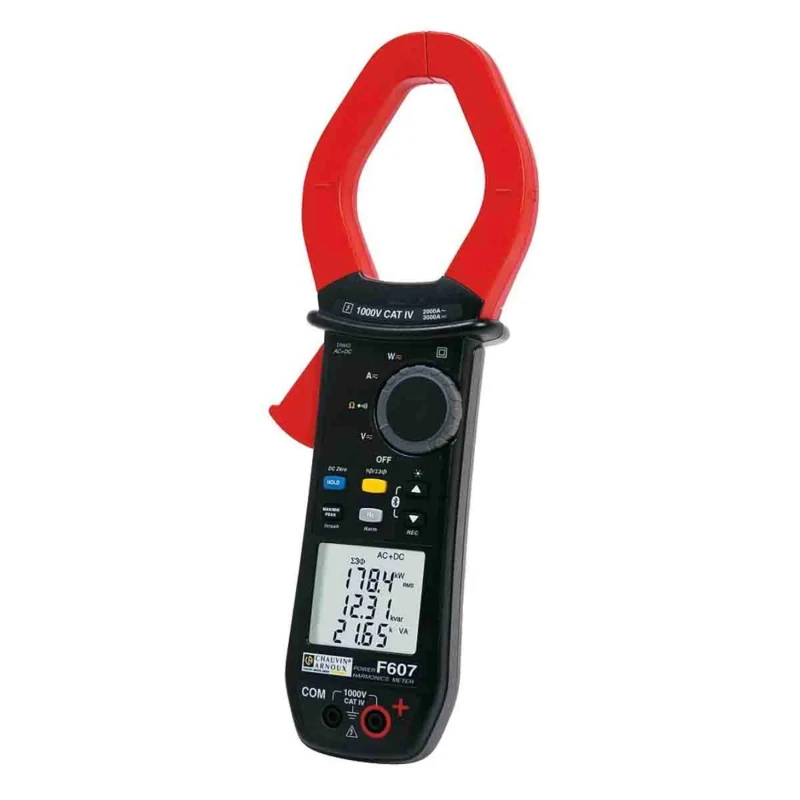

Chauvin Arnoux Power and Harmonics Clamp Meter 3000 A dc 2000 A ac 1400 V dc CAT III, CAT IV F607 P01120967

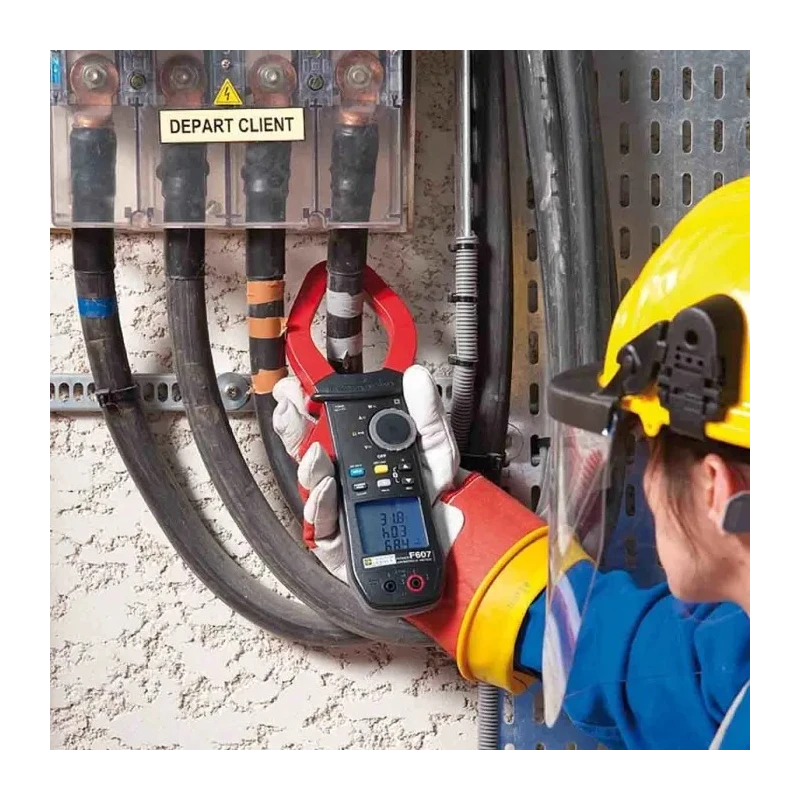

Chauvin Arnoux F607 Clamp Meter is a power and harmonics measuring instrument designed for high-power low-voltage industrial sectors including electrical power distribution, chemical, petrochemical, metallurgy, and transport industries. It is ideal for maintenance, testing, monitoring, diagnostics, and sizing connections.

The device can measure up to 3000 A dc and 2000 A ac currents with high accuracy thanks to a fast 12-bit True RMS digital acquisition system. It provides a maximum voltage measurement of 1400 V dc. The large backlit triple display ensures visibility in all lighting conditions. It features automatic AC/DC detection and measures power values including W, VA, VAR along with power factor and displacement power factor.

This clamp meter supports harmonic analysis up to the 25th order including THD-f and THD-r with a ripple function. The meter also measures resistance, audible continuity, and temperature and includes Min, Max, and Peak analysis on all functions. A Bluetooth interface and dedicated PC software allow for advanced data recording and analysis.

The ergonomic design features a maximum jaw opening of 60 mm accommodating large conductor sizes. It operates within a temperature range of -20°C to +55°C and is powered by AA batteries that provide 350 hours of use, along with an LCD backlight display. It complies with IEC 61010 standards and offers CAT III and CAT IV safety rating for use in 1 kV category voltage environments. The product is manufactured in China.

Applications for this instrument include industrial, laboratory, electrical power distribution, manufacturing, and maintenance environments, ensuring reliable and safe measurements in demanding conditions.

Measures up to 3000 A dc and 2000 A ac current accurately and safely. Maximum voltage measurement of 1400 V dc with True RMS technology. Large backlit LCD display for easy reading. Bluetooth interface for data recording and PC connectivity.

Advanced harmonic analysis up to 25th order and inrush current measurement. Compact design with 60 mm jaw opening suitable for large conductors. Operating temperature range from -20°C to 55°C. Battery-powered with up to 350 hours battery life.

IEC 61010 certified with CAT III and CAT IV safety ratings. Explore more from Chauvin Arnoux Clamp Meters and other electrical test and measurement instruments at EnvMart for your professional needs.
