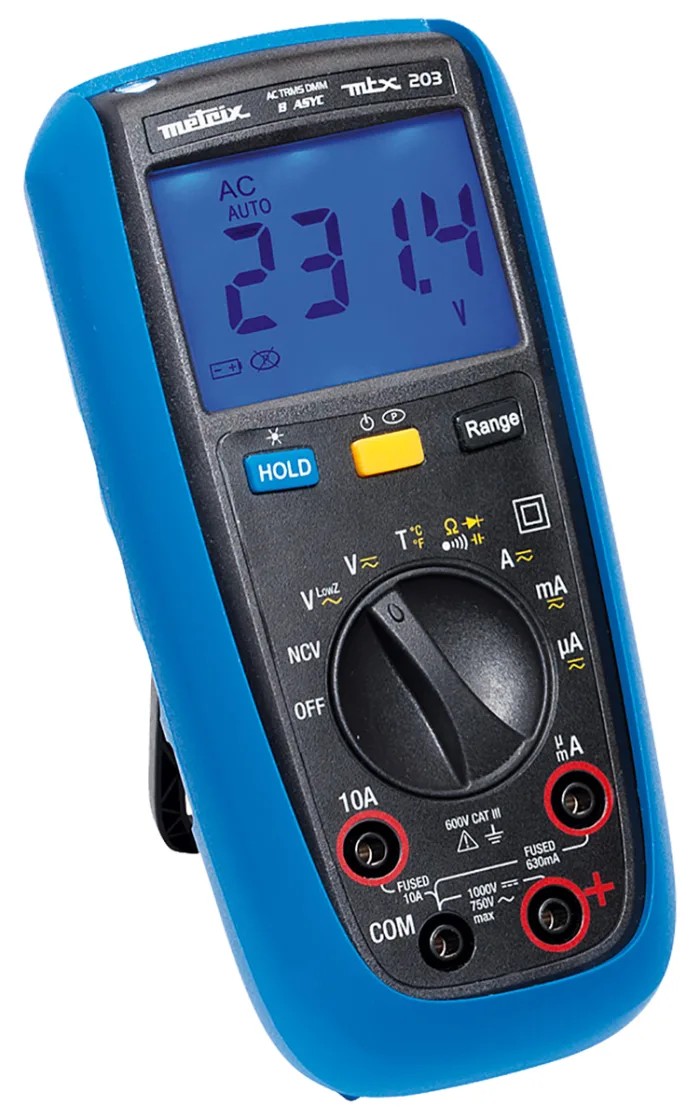

Metrix Handheld True RMS Digital Multimeter 750 V AC/DC CAT III 600V MTX203-Z

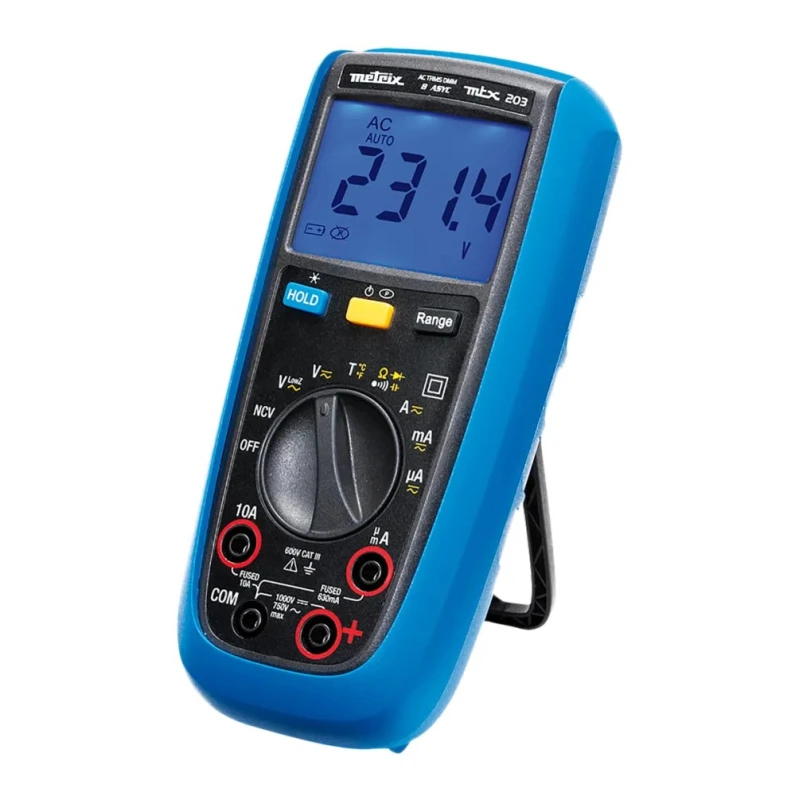

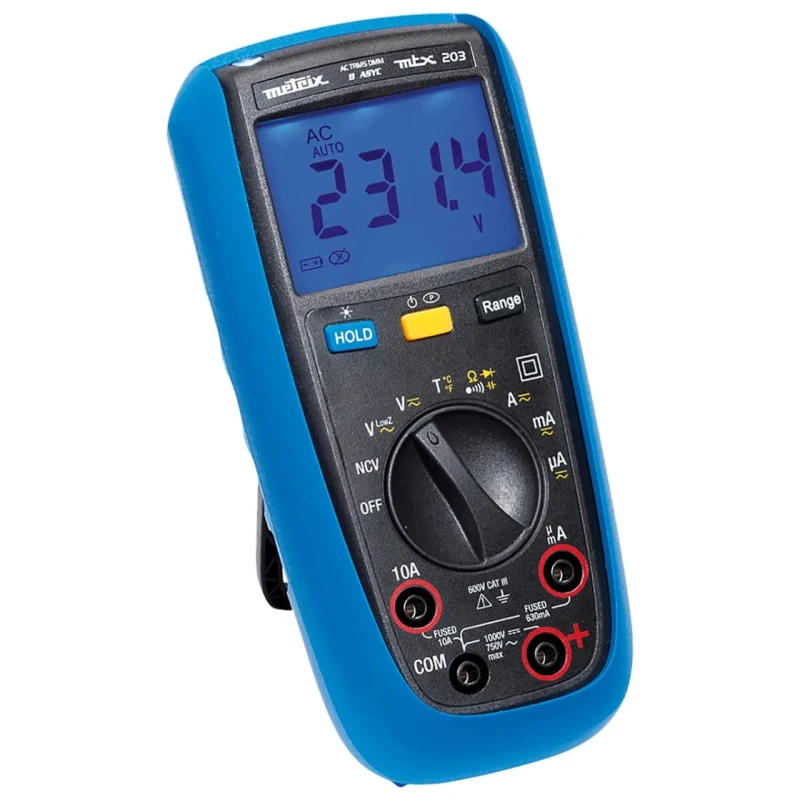

Metrix MTX203-Z is a handheld true RMS Digital Multimeter designed for professional electrical test and measurement applications ranging from industrial maintenance to field troubleshooting.

Equipped to accurately measure AC and DC voltages and currents up to 750 V and 1000 A respectively, it ensures precise readings even with distorted waveforms due to true RMS capability.

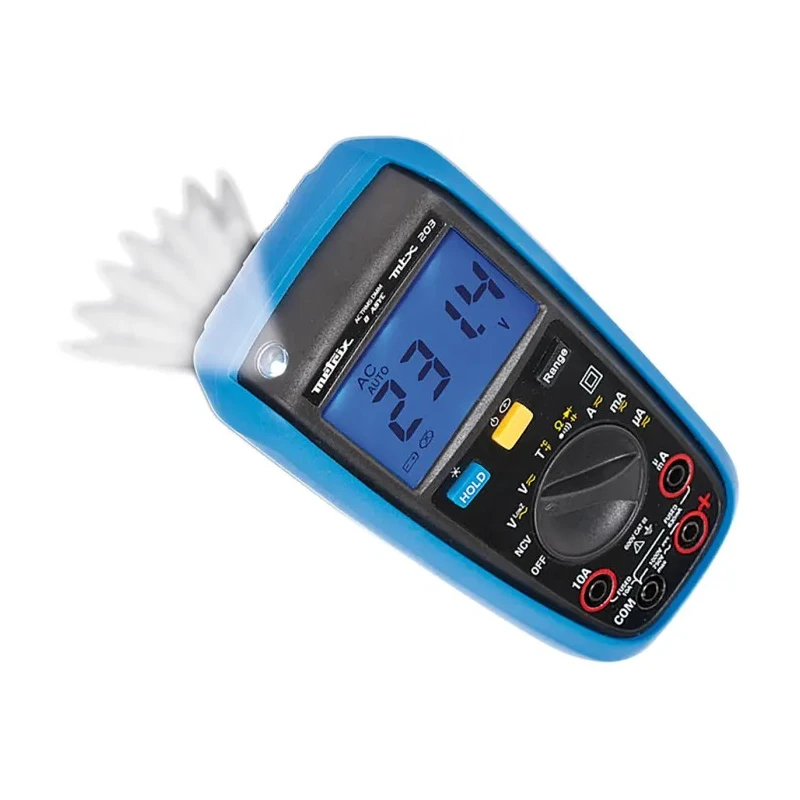

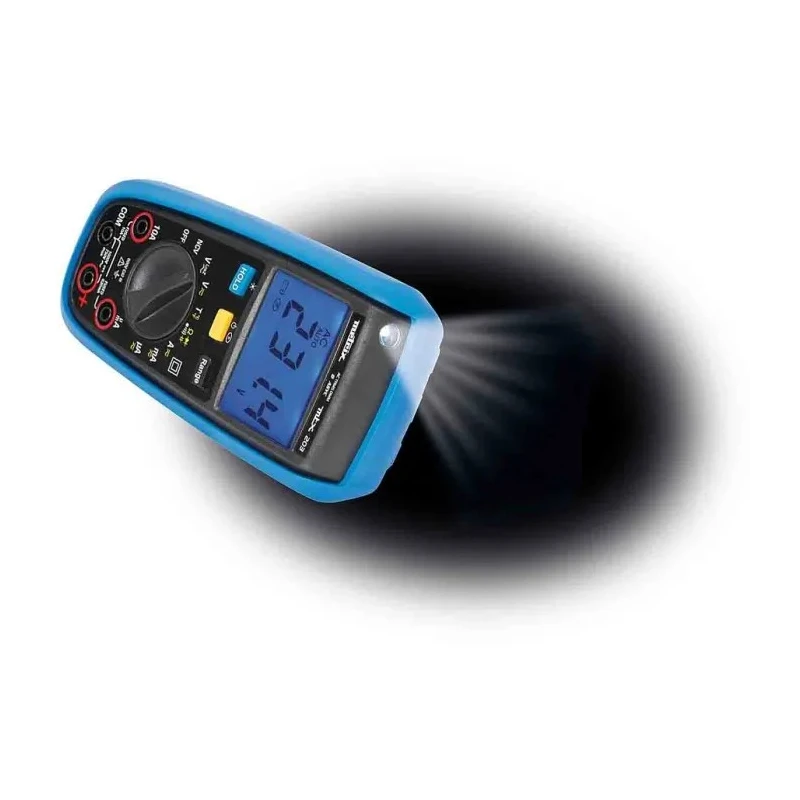

The multimeter features a 6000 count LCD display with blue backlighting for improved visibility, complemented by a built-in torch for operation in dark or confined spaces.

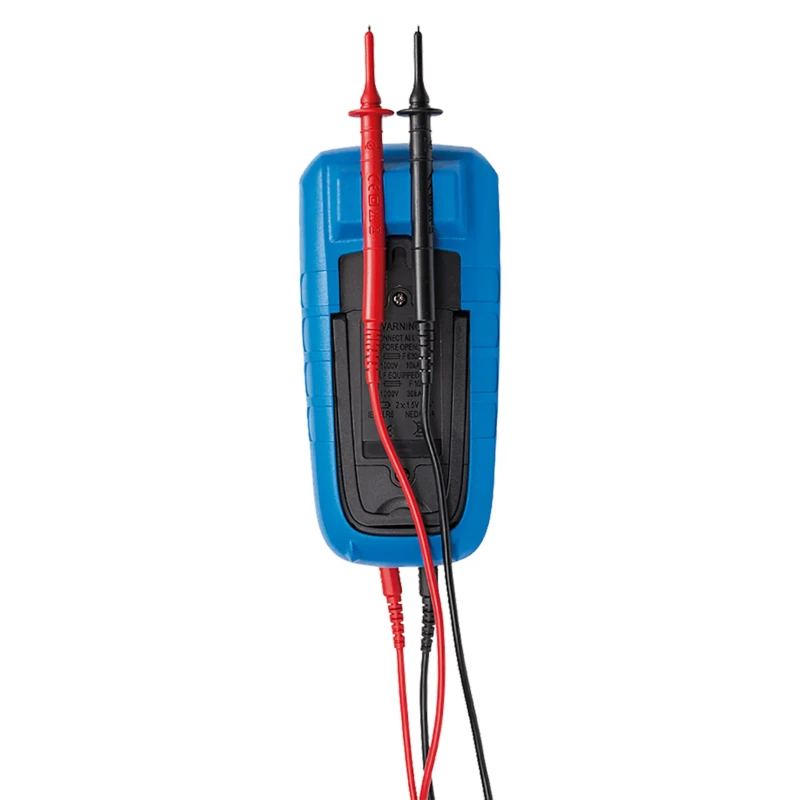

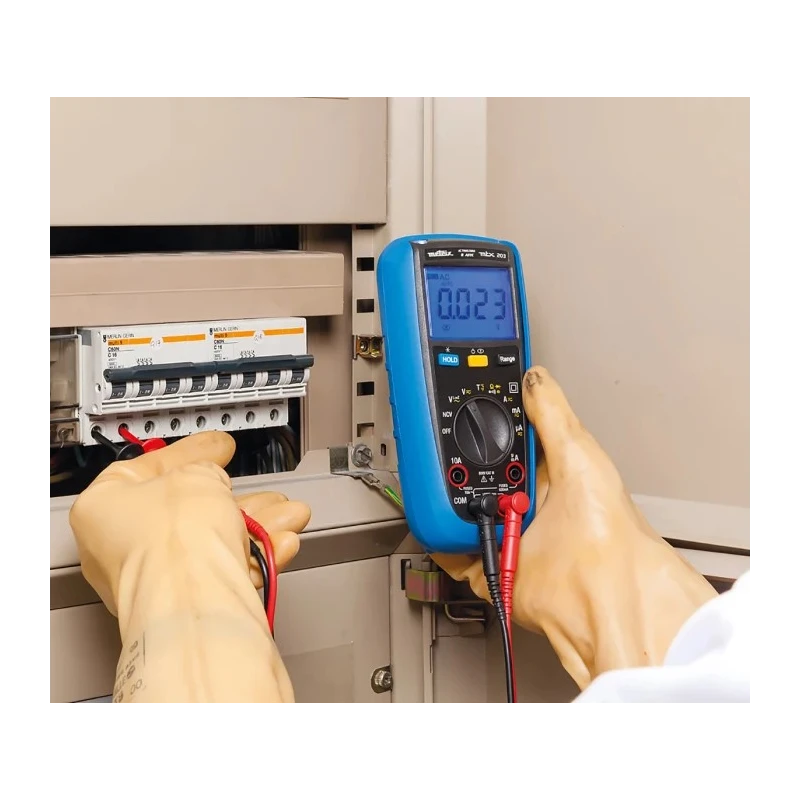

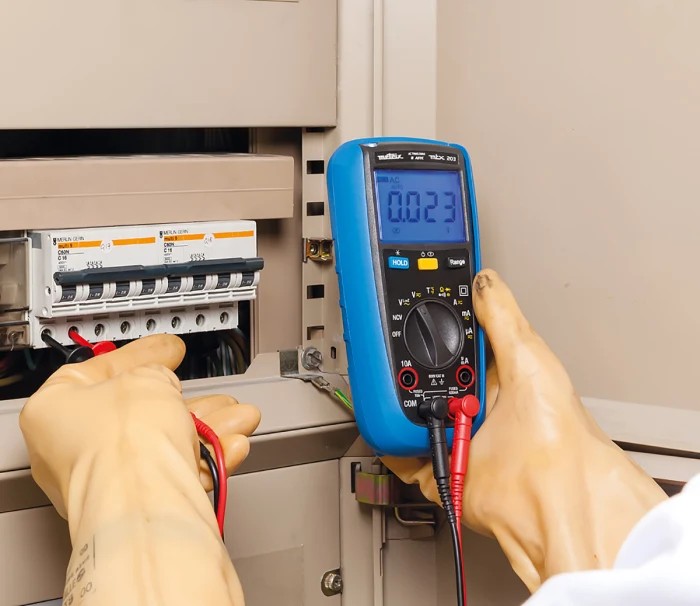

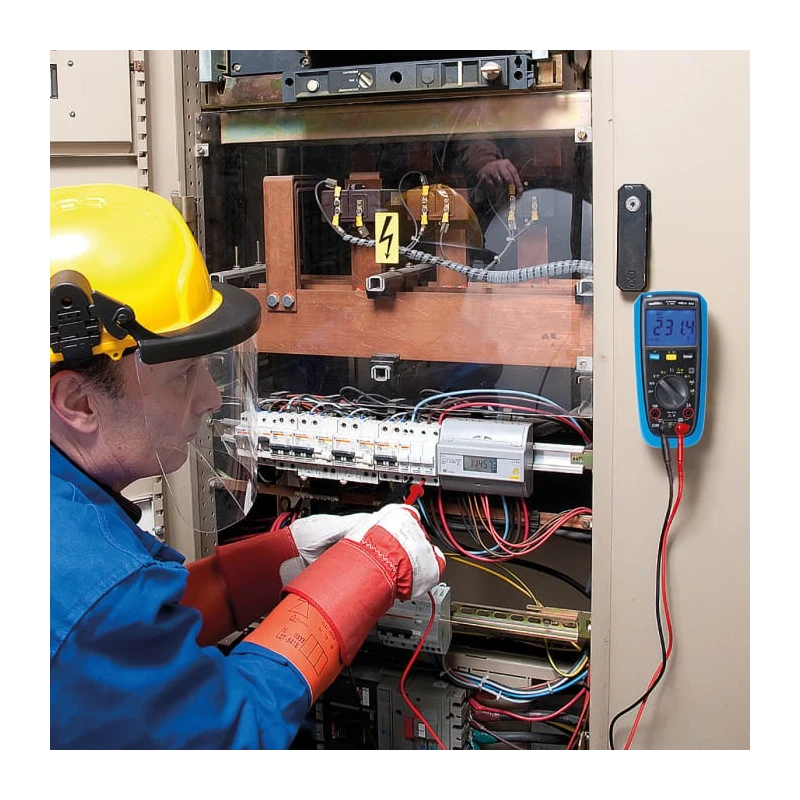

Its compact ergonomic design allows comfortable one-hand operation, while the magnetised shockproof sheath securely mounts the instrument for hands-free use inside electrical cabinets or panels.

Measurement functions include resistance (1 Ω to 60 MΩ), capacitance (1 nF to 100 mF), and temperature using the supplied K thermocouple probe covering -55 °C to +1200 °C, supporting a wide range of industrial diagnostics.

The MTX203-Z supports low impedance voltage measurement (VLowZ) to prevent erroneous readings caused by ghost voltages, enhancing measurement accuracy.

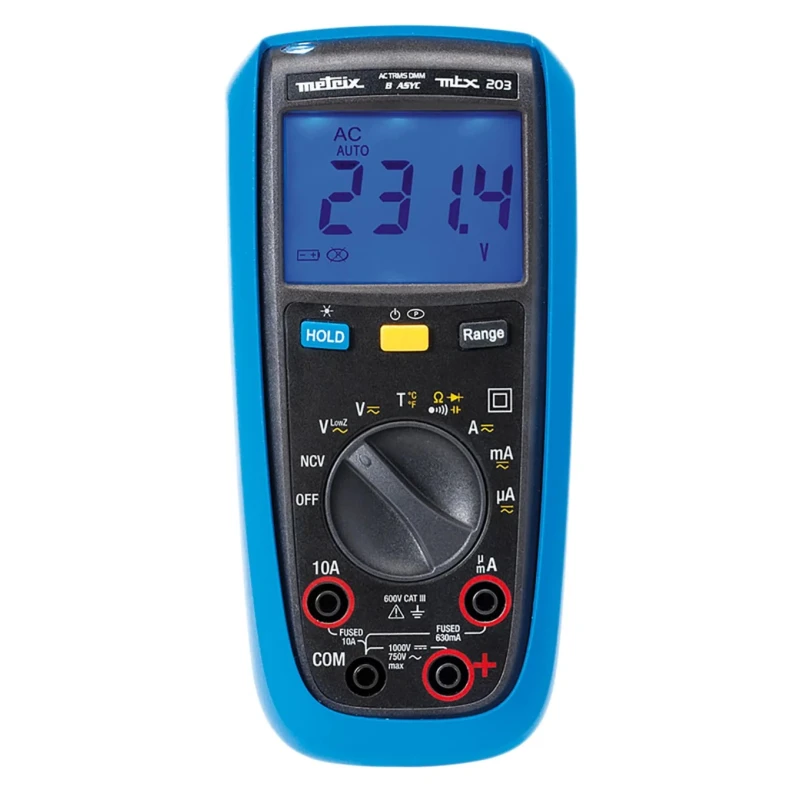

Safety is ensured with CAT III 600 V rated double-well input terminals and compliance with relevant standards. The rotary selector switch provides intuitive one-function-per-position control with minimal keys for streamlined use.

Operating dimensions are 170 mm length by 80 mm width by 50 mm height, and it weighs approximately 320 grams, making it easily portable. Powered by two AA batteries, it offers extended battery life of about 500 hours.

Package includes shockproof sheath, red and black 1.5 m test leads with 4 mm elbowed plugs rated CAT III 600 V, flexible K thermocouple probe with 40 mm adapter, two AA batteries, and an instruction manual.

This multimeter suits electrical maintenance, manufacturing, industrial testing, HVAC diagnostics, and laboratory measurement tasks. Explore more Metrix multimeters and digital test instruments in EnvMart's measuring tools category.

True RMS AC and DC current and voltage measurements ensure accuracy in varying signal conditions. Measurement range spans 0.6 V to 750 V AC/DC and current from 0.6 A to 1000 A. Resistance measurable from 1 Ω to 60 MΩ with capacitance range from 1 nF to 100 mF.

Temperature measured via included K thermocouple from -55 °C to +1200 °C. Backlit LCD display with blue lighting improves readability in low light conditions. Ergonomically designed compact case for one-hand use and easy portability.

Magnetised shockproof sheath and built-in torch enable hands-free use in electrical cabinets and dark environments. 6000 counts resolution with automatic range selection for user convenience. Safety rated CAT III 600 V input protection complies with industrial standards.

Battery powered with two AA batteries providing approximately 500 hours of operation.
