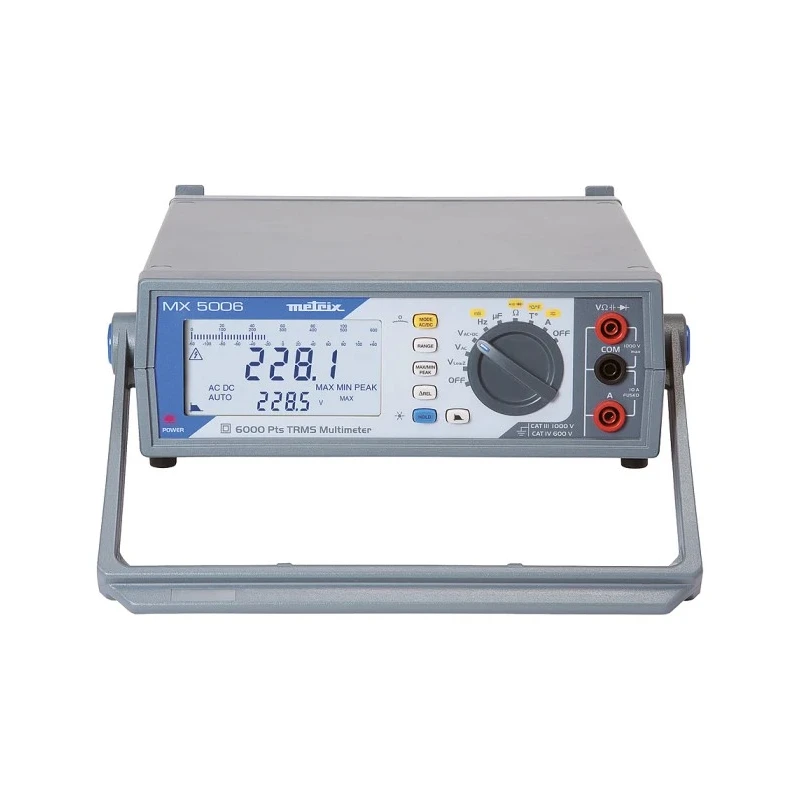

Metrix MX 5006 Bench Multimeter True RMS, 20 A AC, 20 A DC, 1 kV AC MX5006

Metrix MX5006 Bench Multimeter True RMS is a high-precision digital meter designed for industrial, laboratory, and electrical testing applications. It supports AC and DC current and voltage measurements up to 20 A and 1 kV respectively, ensuring comprehensive testing capabilities.

The instrument features a 6000 count double transflective backlit LCD screen with a bargraph and central zero indicator for instantaneous signal variation display. The 300 Hz PWM filter enhances measurement stability especially on variable speed drives, making it suitable for complex electrical systems.

Functionality includes AC/DC voltage, AC/DC current, capacitance, resistance up to 60 MΩ, diode testing, continuity, frequency up to 60 kHz, and temperature measurement via a K-type thermocouple (-200 °C to +1200 °C). Accuracy is maintained with DC current accuracy at 0.8%, AC current accuracy at 0.01%, and DC voltage accuracy at 0.0005% reading, enabling precise diagnostics.

Safety is ensured through compliance with IEC 61010 and CAT III 1 kV rating, suitable for demanding electrical environments. The meter comes supplied with an EU mains power cable, red and black CAT IV 1 kV test probes, a 1.5 m red and black straight cable, an operating manual on CD, and a start-up guide.

Compact and robust, the Metrix MX5006 measures 295 mm in length and width, with a height of 95 mm, and weighs 1.9 kg. Its USB interface supporting SCPI commands allows seamless integration with automated test systems and data logging.

This bench Multimeter is ideal for use in industrial manufacturing, electrical maintenance, laboratories, and HVAC systems where accurate and reliable measurements are critical. Measures AC and DC voltage and current with True RMS for precise readings.

High-resolution LCD with backlight and bargraph display. Stable measurements on variable speed drives aided by 300 Hz PWM filter. Wide measurement functions including resistance, capacitance, diode test, continuity, frequency, and temperature.

Robust safety rating with IEC 61010 compliance and CAT III 1 kV certification. USB communication for automation and data transfer. Supplied with power cable, test probes, cables, and documentation. Compact size suitable for bench use in industrial and laboratory settings.
