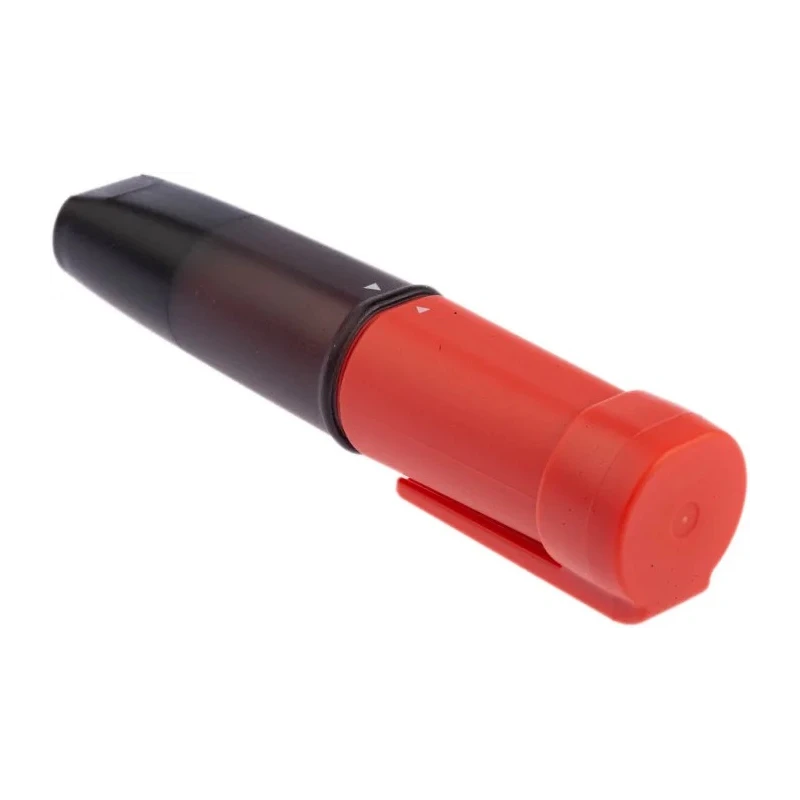

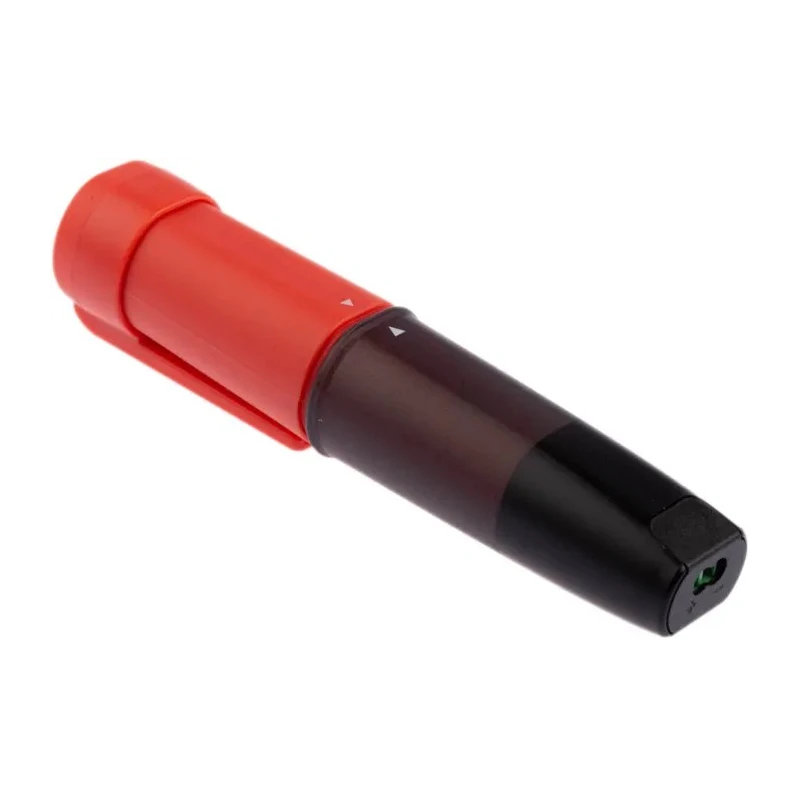

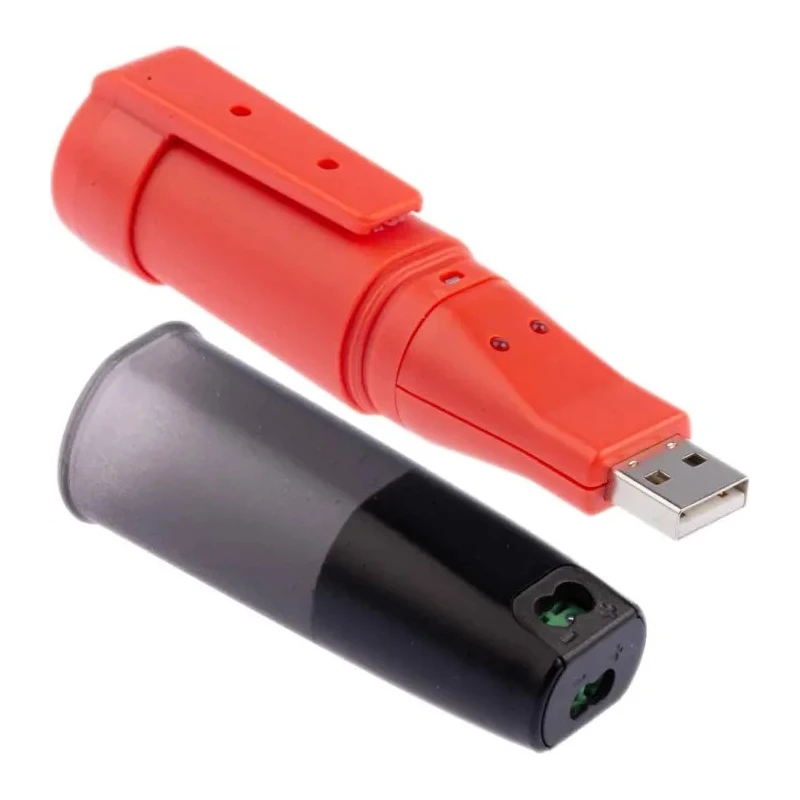

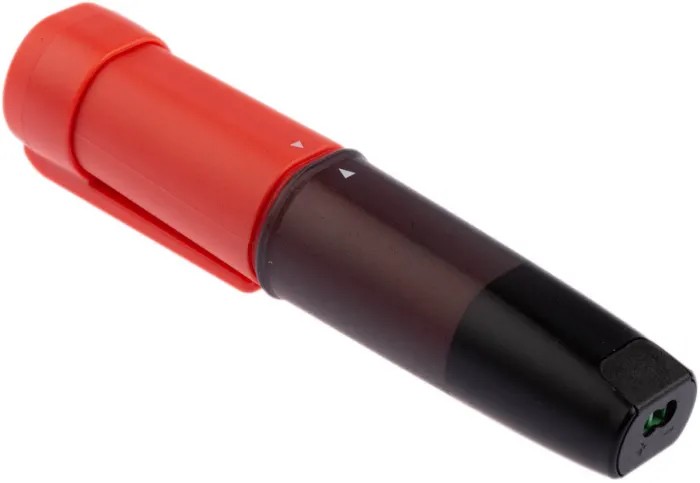

RS PRO Voltage Data Logger USB Interface PRO-USB-3 with 1 Channel, ±1% Accuracy, 0-30 V DC Range, Battery Powered PRO-USB-3

RS PRO PRO-USB-3 Voltage Data Logger USB is a portable and versatile device designed for industrial and laboratory use to measure and log voltage with high accuracy and reliability. The logger measures voltage within the range of 0 to 30 V DC at a resolution of 50 mV and an accuracy of ±1%. It supports a single channel for voltage measurement and can store up to 32,000 readings, making it ideal for long-term monitoring in various challenging environments.

The device operates over a wide temperature range from -35°C to 80°C and is battery powered with AA batteries, delivering an expected runtime of up to two years, reducing maintenance frequency. The compact form factor (98 mm length x 26.8 mm width x 26.8 mm height) ensures ease of installation and use in constrained spaces.

The USB interface enables simple connection to a PC for quick data download and configuration using free compatible control software, supporting Windows 7, 8, and 10 platforms (32-bit and 64-bit). Users can set logging rates from 10 seconds to 12 hours and configure alarm thresholds with status indicated by red/green LEDs for immediate alerts.

This RS PRO data logger is RoHS compliant, ensuring conformance with environmental regulations. It is widely used in industrial machines & instrumentation, HVAC monitoring, environmental data collection, agricultural monitoring, food and beverage production, building management, warehousing, healthcare, offices, greenhouses, and site monitoring applications.

Measures voltage from 0 to 30 V DC with ±1% accuracy. Supports 1 input channel for voltage measurement. Stores up to 32,000 readings per channel for extensive data logging. Operates within a temperature range of -35°C to 80°C to suit varied environments.

Battery powered by AA batteries providing approximately 2 years of operation. Logging intervals adjustable between 10 seconds and 12 hours for flexible data capture. Includes user-programmable alarm thresholds with visual LED indicators.

Compact dimensions (98 mm length, 26.8 mm width and height) for portability. Compliant with RoHS standards ensuring environmental safety. Free software compatible with Windows for easy setup, download, and data analysis.

Set contains one RS PRO PRO-USB-3 voltage Data Logger, ready to use with included battery. This product is suitable for engineers, technicians, and professionals requiring accurate long-term voltage monitoring in harsh environments.

Explore more RS PRO data logging solutions and other measuring instruments in the EnvMart industrial catalog to optimize your process monitoring requirements.
