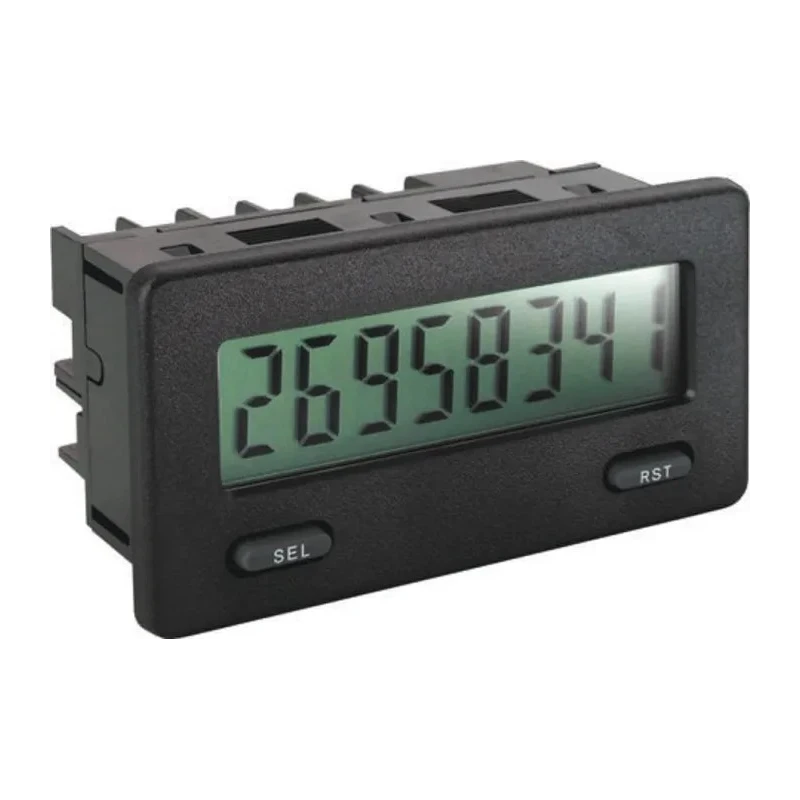

Red Lion Digital 8 Digit Counter with 12mm Reflective LCD Display, Manual Reset, 9-28V DC, USB Interface CUB5

Red Lion CUB5 digital 8 digit counter, model CUB5, features a highly visible 12mm reflective LCD display with 8 digits and 11.7mm digit height. Designed to operate within 9VDC to 28VDC power supply range, this counter offers manual reset functionality and USB communication interface for enhanced industrial applications.

The display intensity can be adjusted for use in both dark and brightly lit environments, ensuring readability in a variety of settings. Key capabilities include anti-coincidence counting (add/add and add/sub), programmable scaling for count and rate, bi-directional up/down counting, and a relay output for flexible control integration.

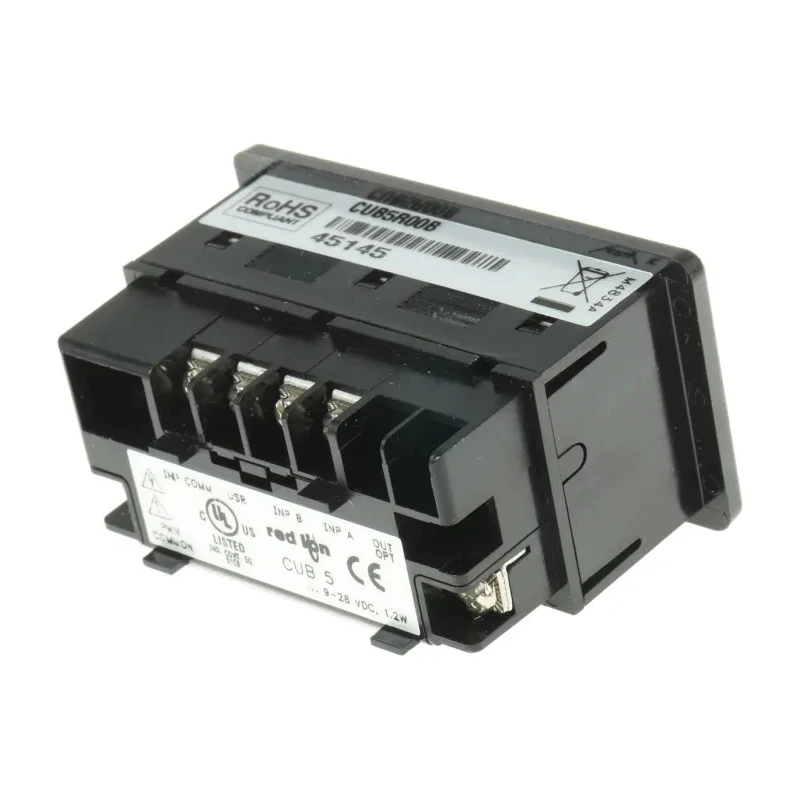

The compact unit fits into a standard panel cut-out of 68mm by 33mm, and features plug-in screw terminals to facilitate easy wiring. It is designed for heavy-duty industrial environments with an operating temperature range of -35°C to 75°C, IP65 protection, and multiple international certifications including CE, EN 61010-1, EN 61326-1, NEMA 4X, and UL approval.

Applications of the Red Lion CUB5 counter include industrial counting tasks, control and monitoring systems, and manufacturing assembly lines, making it well-suited for precise digital and analog signal measurements such as count, voltage, current, time, process, rate, and temperature inputs.

Displays up to 8 digits with 11.7mm digit height for clear readability. Manual reset method enables easy resetting of counts. Reflective LCD display with adjustable intensity for various lighting conditions. Anti-coincidence counting and bi-directional counting for versatile counting options.

Plug-in screw terminal connections for simple installation. USB communication interface for connectivity and data exchange. Operating temperature range from -35°C to 75°C for industrial environments. IP65 rated enclosure providing dust and water resistance.

Certified with CE, EN 61010-1, EN 61326-1, NEMA 4X, and UL standards. Ideal for industrial automation, control systems, and manufacturing processes. Explore a wide range of Counters and digital instrumentation at EnvMart for industrial and automation needs.
