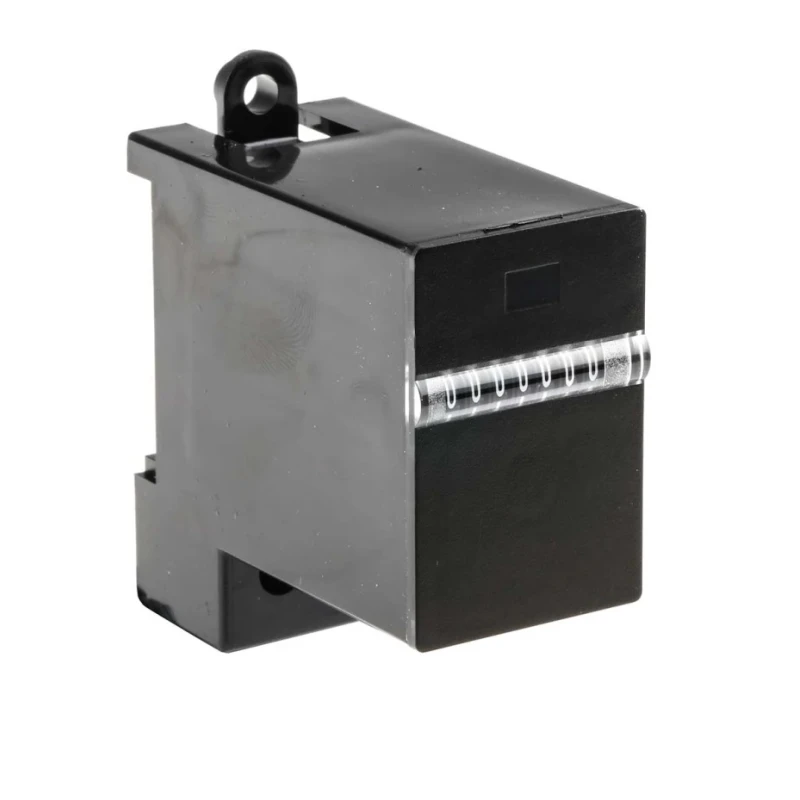

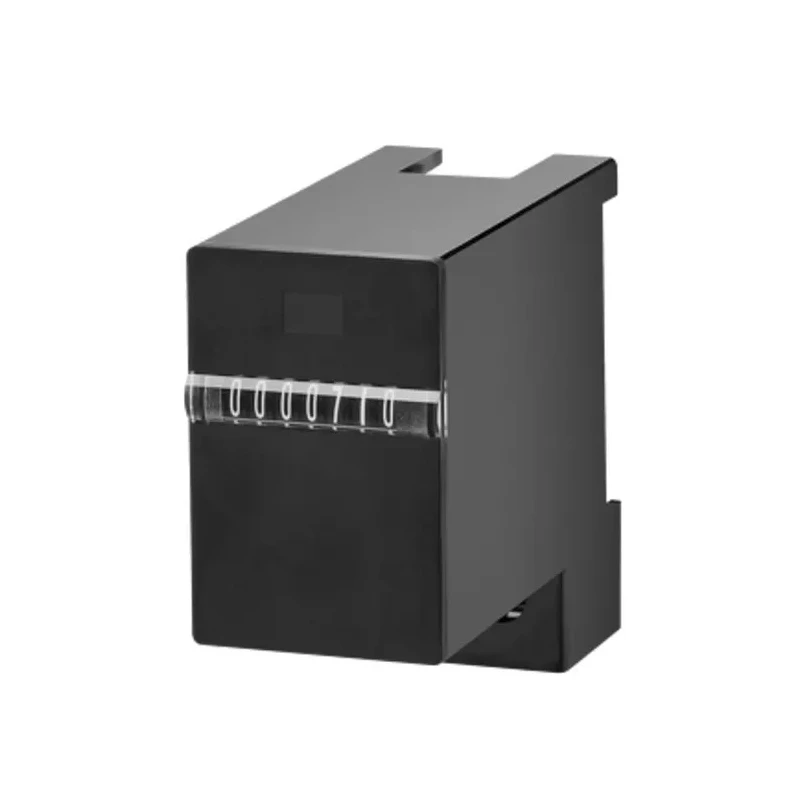

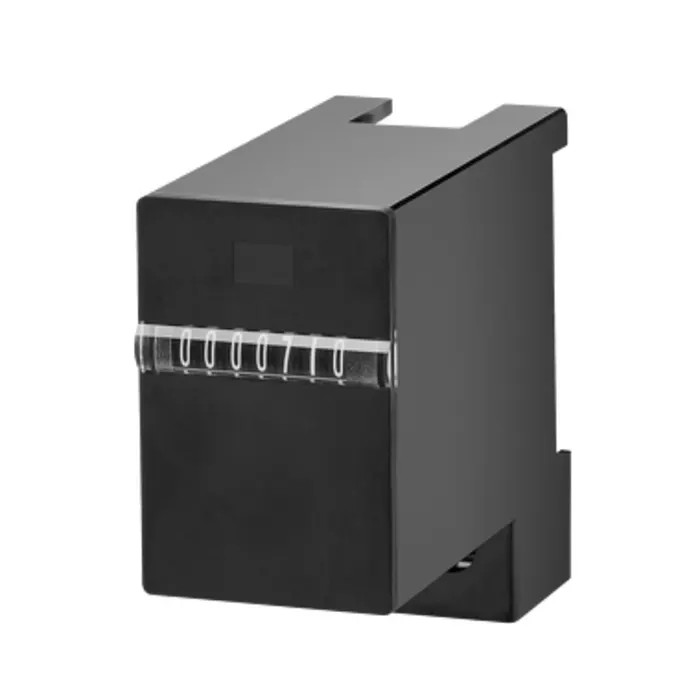

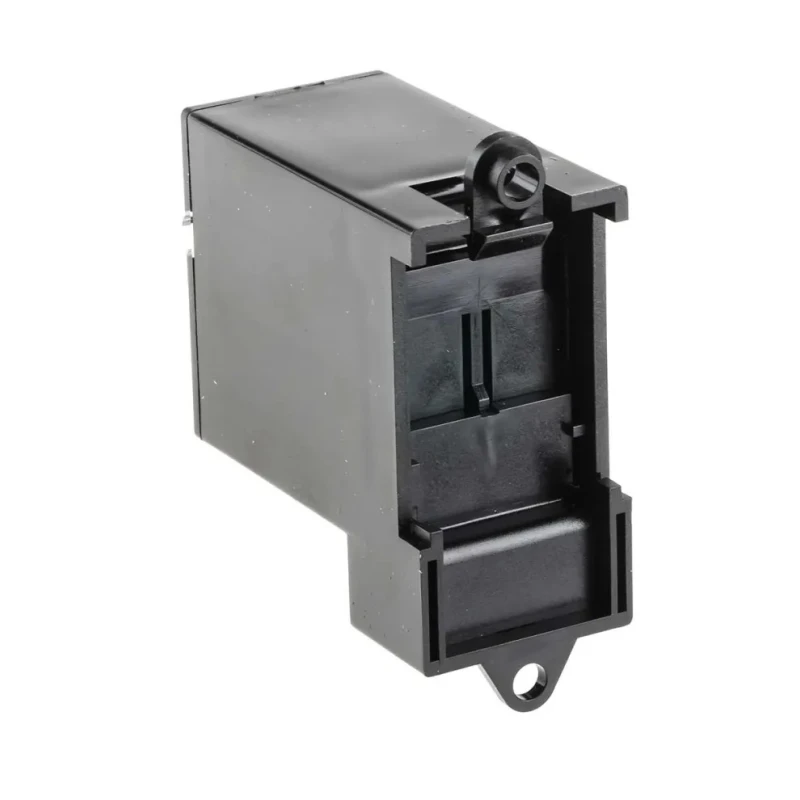

Kubler Analogue 7 Digit Impulse Counter for DIN Rail Mounting, 24V DC, 25 Hz, Electromechanical SK 07.1 1.132.101.033

Kubler 1.132.101.033 analogue impulse counter SK 07.1 is a robust electromechanical device designed for reliable counting in industrial automation systems. It features seven digits with analogue display and a count frequency up to 25 Hz, powered by a 24V DC supply. The compact two-module wide design allows easy installation on DIN Rail in control cabinets according to DIN 46277 standards.

This counter operates accurately at temperatures ranging from -10°C to 60°C, making it suitable for a wide range of environmental conditions in manufacturing, water treatment, and process control industries. The shockproof front panel has an IP50 rating, providing durability against industrial shocks and vibrations.

It uses an impulse count mode with clamp type connections, and is designed as non-resettable with a counting direction upwards. The digits are 4mm high for clear visibility in various lighting conditions.

The unit is manufactured in Germany under strict quality controls, ensuring long service life with up to 50 million counts, and reliable retention of counted data even after power failure.

Due to its compact size and lightweight construction (55g), the SK 07.1 counter can be easily integrated into existing automation systems for process monitoring, totalizing operations, and frequency measurements.

Electromechanical impulse counting with 7 analogue digits. 24V DC supply voltage and 25 Hz max counting frequency. DIN Rail mountable with IP50 shockproof front panel. Temperature operating range from -10°C to 60°C. Non-resettable, upward counting direction.

Compact two-module width size. Long durability and data retention after power loss. Manufactured in Germany for industrial quality standards. Explore other Counters and automation components in the Electronics & Electricals category on EnvMart for your industrial monitoring needs.
